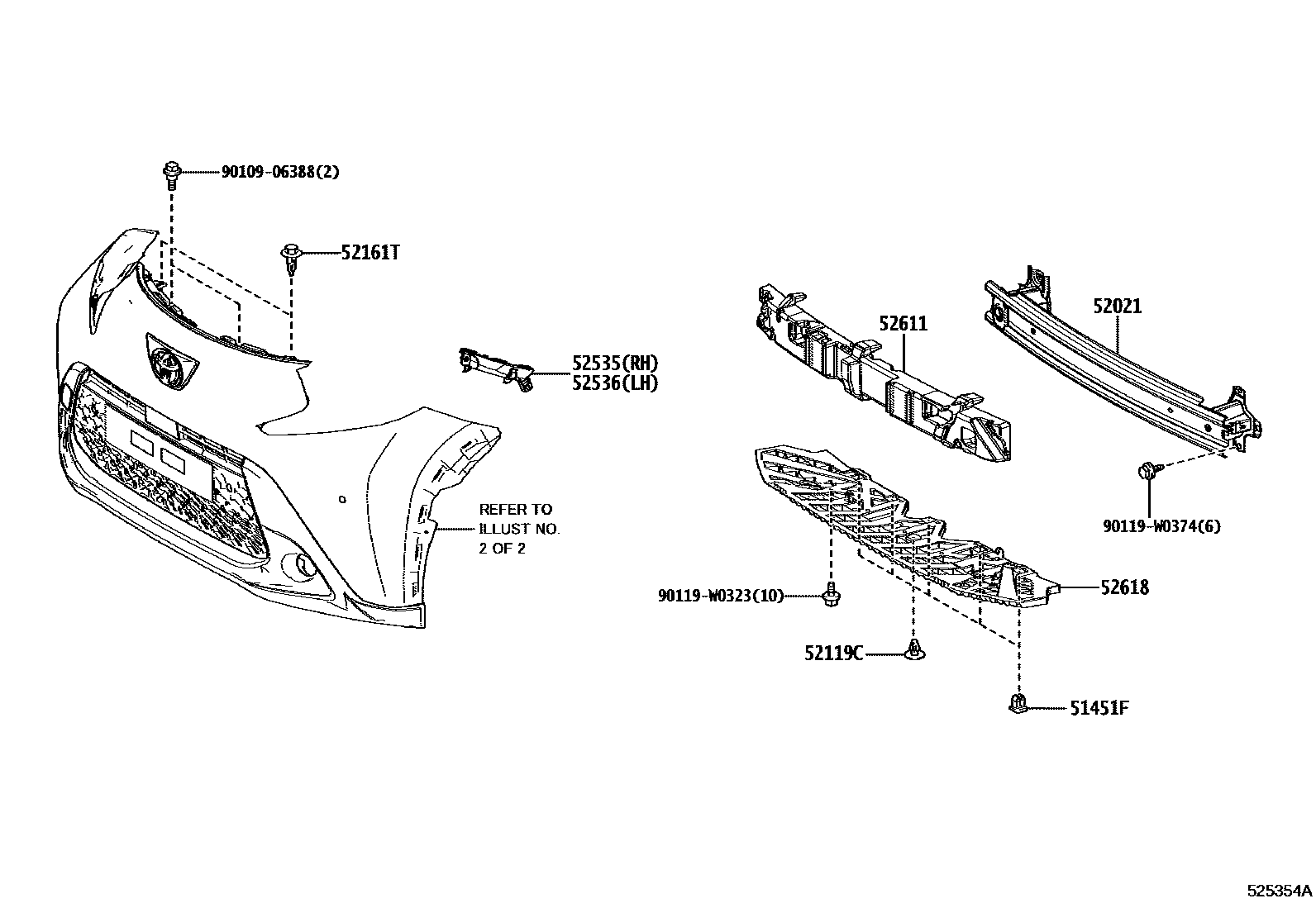

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

51451FGROMMET, NO.1

main90189-06237×5iKGB70..LHD..R202203-202401

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0H040iKGB70..RHD;KGB70..LHD..(G,K,N)202203

52119CCLIP, FRONT BUMPER COVER

main90467-10005-C0iKGB70..RHD;KGB70..LHD..(G,K,N)202203

BLACK

sub90467-06017

52161TPIECE, FRONT BUMPER

main52161-02030×2iKGB70..RHD;KGB70..LHD..(G,K,N)202203

(L)

main52161-16010×2iKGB70..LHD..R202203-202401

(J)

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0H070iKGB70..LHD..R202203-202401

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0H070iKGB70..LHD..R202203-202401

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0H030iKGB70..RHD;KGB70..LHD..(G,K,N)202203

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0H050iKGB70..RHD;KGB70..LHD..(G,K,N)202203

9010906388

main90109-06388

90119W0323

main90119-W0323

90119W0374

main90119-W0374

11 parts on this diagram · 2 diagrams in section
