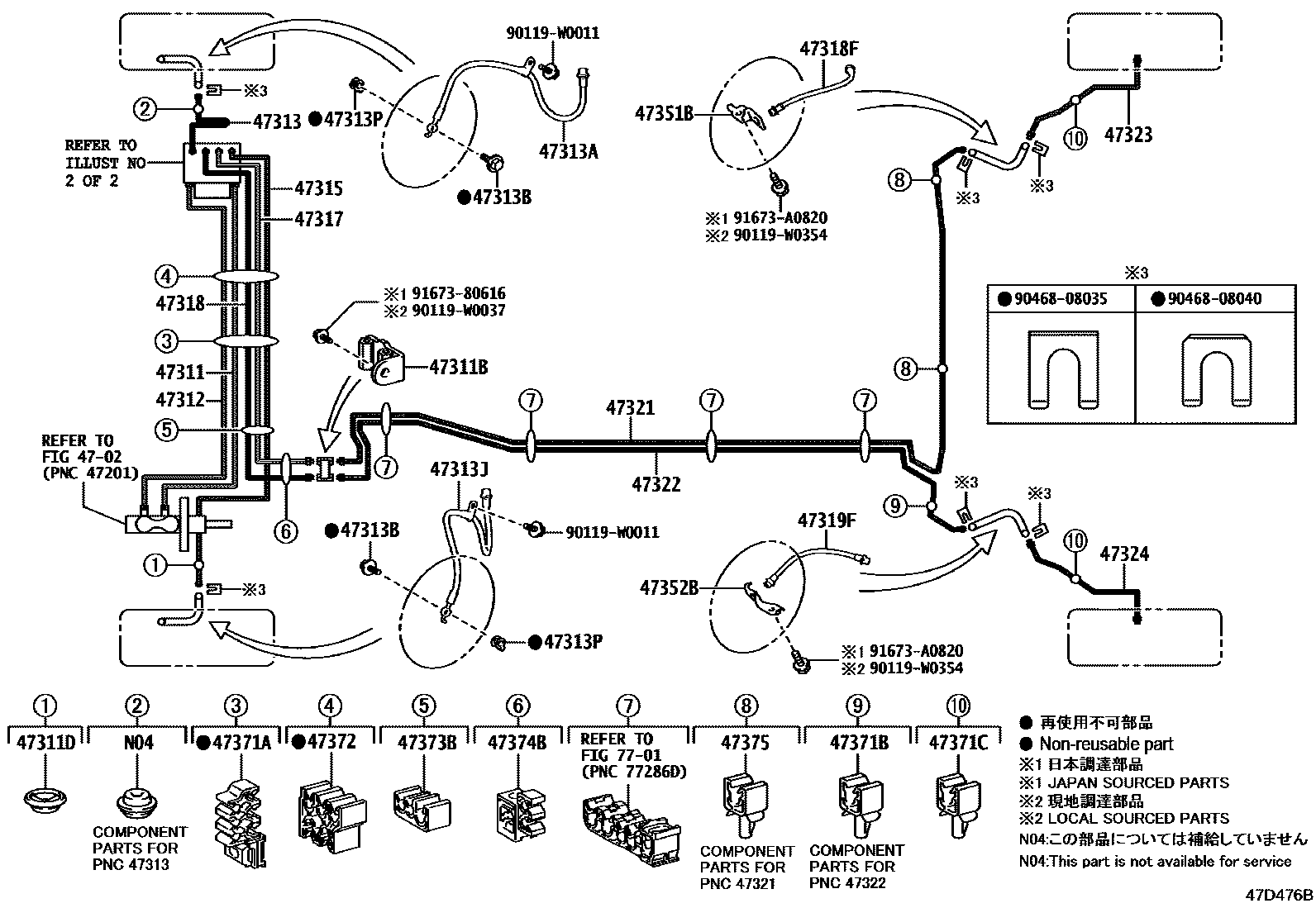

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0H160iKGB70..LHD..R202203-202401

sub47311-K0030

main47311-0H170iKGB70..RHD202203

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10317iKGB70..LHD..R¥730202203-202401

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037iKGB70..LHD..R¥100202203-202401

47312TUBE, FRONT BRAKE, NO.2

main47312-0H160iKGB70..LHD..R202203-202401

sub47312-K0030

main47312-0H170iKGB70..RHD202203

47313TUBE, FRONT BRAKE, NO.3

main47313-0H110iKGB70..LHD..R202203-202401

sub47313-K0030

main47313-0H160iKGB70..RHD202203

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2055iKGB70..LHD..R202203-202401

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iKGB70..LHD..R¥220202203-202401

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2056iKGB70..LHD..R202203-202401

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iKGB70..LHD..R¥310202203-202401

47315TUBE, FRONT BRAKE, NO.5

main47315-0H080iKGB70..LHD..R202203-202401

sub47315-K0030

main47315-0H090iKGB70..RHD202203

47317TUBE, FRONT BRAKE, NO.7

main47317-0H080iKGB70..LHD..R202203-202401

sub47317-K0030

main47317-0H090iKGB70..RHD202203

47318TUBE, FRONT BRAKE, NO.8

main47318-0H010iKGB70..LHD..(G,K,N)202203-202401

sub47318-K0030

main47318-0H020iKGB70..RHD202203

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2059iKGB70..LHD..R202203-202401

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2059iKGB70..LHD..R202203-202401

47321TUBE, REAR BRAKE, NO.1

main47321-0H040iKGB70..LHD..R202203-202401

47322TUBE, REAR BRAKE, NO.2

main47322-0H040iKGB70..LHD..R202203-202401

47323TUBE, REAR BRAKE, NO.3

main47323-0H040iKGB70..LHD..R202203-202401

47324TUBE, REAR BRAKE, NO.4

main47324-0H040iKGB70..LHD..R202203-202401

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-0H040iKGB70..LHD..R202203-202401

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-0H030iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01E31iKGB70..LHD..R¥210202203-202401

main90949-01E43iKGB70..RHD¥110202203

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01E01iKGB70..RHD;KGB70..LHD..(G,K,N)¥110202203-202401

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01E01iKGB70..LHD..R¥110202203-202401

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E30iKGB70..RHD¥210202203

main90949-01E40iKGB70..LHD..(G,K,N)¥110202203-202401

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D92iKGB70..LHD..R¥110202203-202401

main90949-01E40iKGB70..RHD¥110202203

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E62iKGB70..RHD¥170202203

main90949-01E75iKGB70..LHD..R202203-202401

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E01iKGB70..LHD..R¥110202203-202401

7701

90119W0011

main90119-W0011

90119W0037

main90119-W0037¥60

90119W0354

main90119-W0354

9046808035

main90468-08035¥110

9046808040

main90468-08040¥130

9167380616

main91673-80616¥60

91673A0820

main91673-A0820¥80
