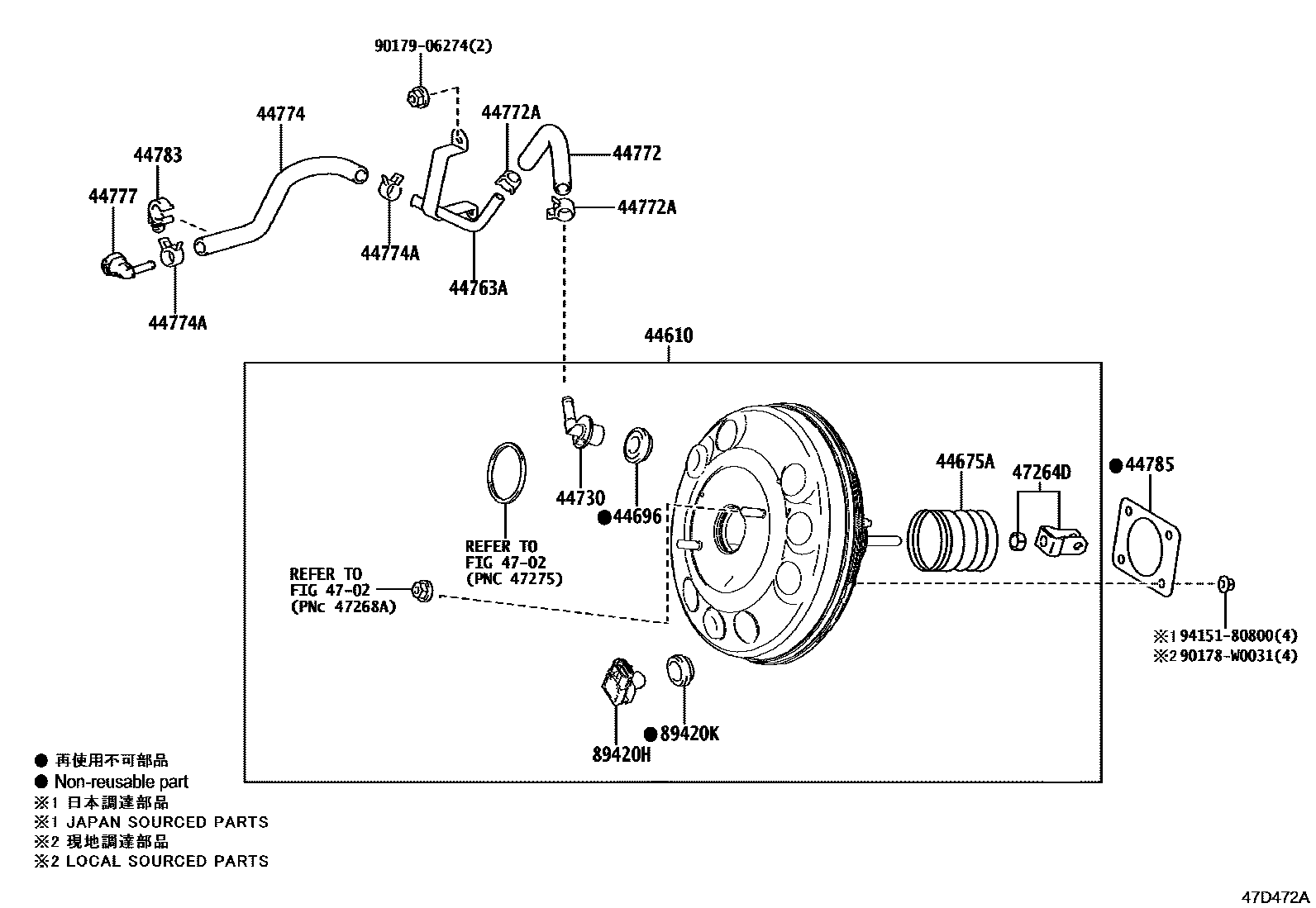

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-09J00iKGB70..LHD..R202203-202401

main44610-09J10iKGB70..RHD202203

44675ABOOT, BRAKE BOOSTER

main44675-05030iKGB70..LHD..R202203-202401

44696GROMMET, CHECK VALVE

main44692-0H130iKGB70..LHD..R202203-202401

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-0H030iKGB70..LHD..R202203-202401

44763ATUBE, HOSE TO HOSE, NO.1

main44763-K0010iKGB70..LHD..R202203-202401

main44763-K0020iKGB70..RHD202203

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-K0010iKGB70..LHD..R202203-202401

main44772-K0020iKGB70..RHD202203

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iKGB70..LHD..R¥120202203-202401

(L)

main90467-16014iKGB70..RHD;KGB70..LHD..(G,K,N)¥230202203-202401

(J)

44774HOSE, UNION TO CONNECTOR TUBE

main44774-K0010iKGB70..LHD..R202203-202401

main44774-K0020iKGB70..RHD202203

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-W0008iKGB70..RHD;KGB70..LHD..(G,K,N)¥120202203-202401

(L)

main90467-16014iKGB70..RHD;KGB70..LHD..(G,K,N)¥230202203-202401

(J)

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-K0020iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

44783CLAMP, VACUUM HOSE

main44783-K0040iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

44785GASKET, BRAKE BOOSTER

main44785-K0010iKGB70..LHD..R202203-202401

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47262-09010iKGB70..LHD..R202203-202401

89420HSENSOR ASSY, VACUUM

main89421-0D011iKGB70..LHD..R202203-202401

89420KGROMMET, VACUUM SENSOR

main44692-0D020iKGB70..LHD..R202203-202401

90178W0031

main90178-W0031¥100

9017906274

main90179-06274¥70

9415180800

main94151-80800¥80

19 parts on this diagram · 2 diagrams in section
