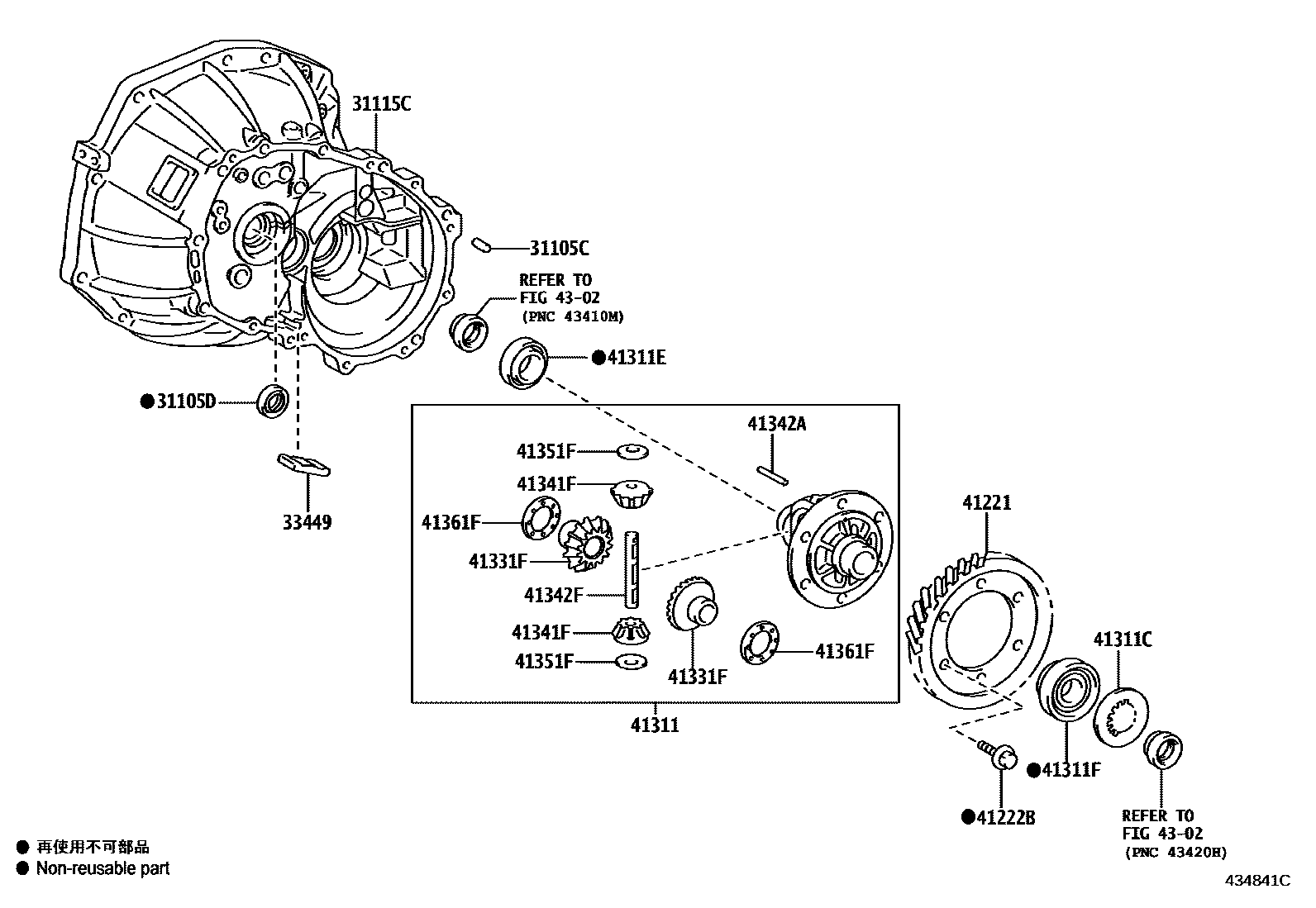

FRONT AXLE HOUSING & DIFFERENTIAL
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
33449MAGNET, TRANSMISSION
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311CASE, FRONT DIFFERENTIAL
sub41311-0H902
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.10,MARK 01
T=1.15,MARK 02
T=1.20,MARK 03
T=1.25,MARK 04
T=1.30,MARK 05
T=1.35,MARK 06
T=1.40,MARK 07
T=1.45,MARK 08
T=1.50,MARK 09
T=1.55,MARK 10
T=1.60,MARK 11
T=1.65,MARK 12
T=1.70,MARK 13
T=1.75,MARK 14
T=1.80,MARK 15
T=1.85,MARK 16
T=1.90,MARK 17
T=1.95,MARK 18
T=2.00,MARK 19
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
OUTER
INNER
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
OUTER
INNER
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.50
T=0.55
T=0.60
T=0.65
T=0.70
T=0.75
T=0.80
T=0.85
T=0.90
T=0.95
4302
17 parts on this diagram · 2 diagrams in section
