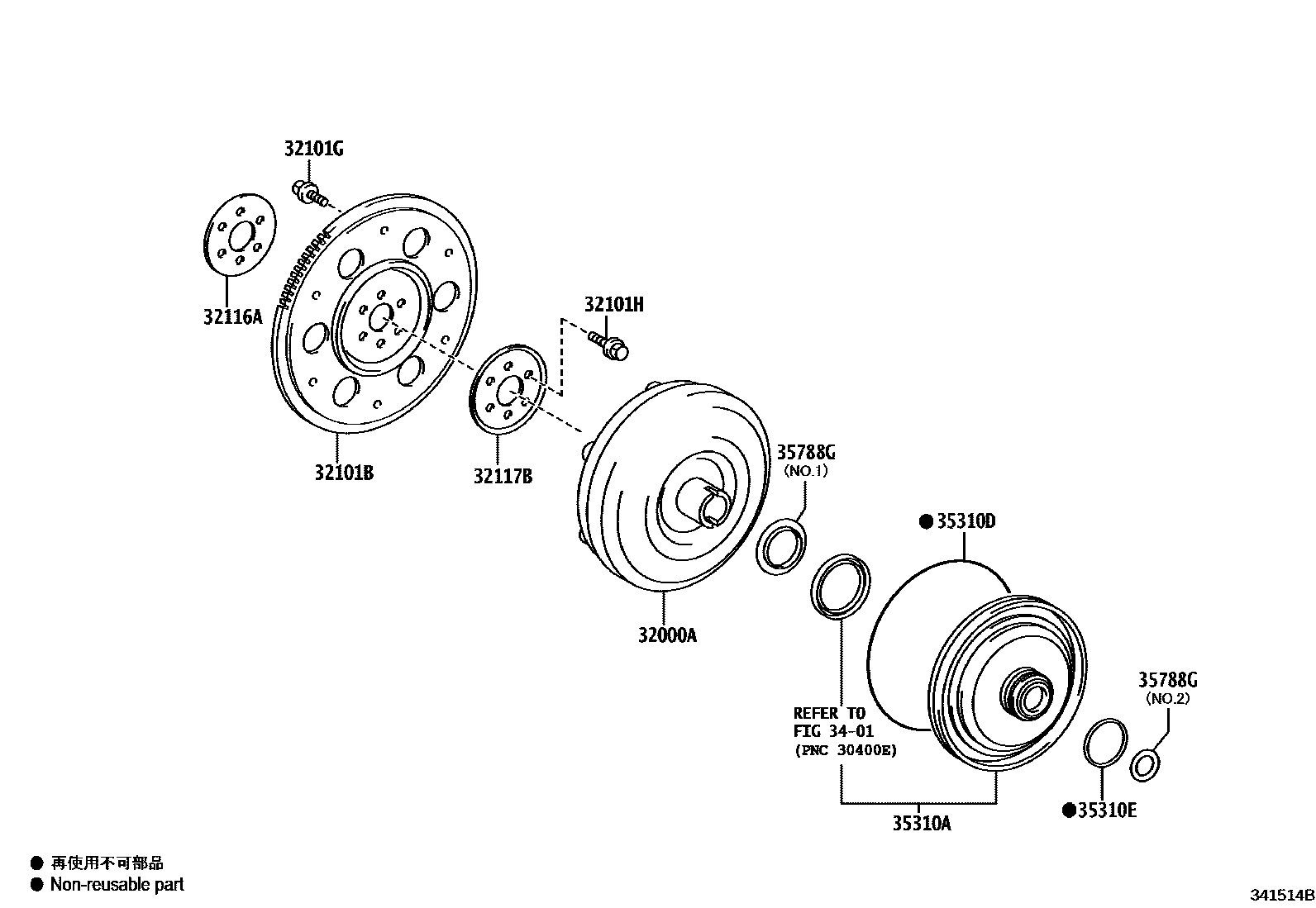

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-52250iKGB70..CVT¥66,700202203

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52080iKGB70..CVT¥3,810202203

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iKGB70..CVT¥80202203

*8-1.25PX12-8.4,BLACK

main90119-08498iKGB70..CVT¥80202203

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iKGB70..CVT¥130202203

32116ASPACER, DRIVE PLATE, FRONT

main32116-52010iKGB70..CVT¥470202203

32117BSPACER, DRIVE PLATE, REAR

main32117-52010iKGB70..CVT¥930202203

3401

35310APUMP ASSY, FRONT OIL

main35310-52130iKGB70..CVT¥26,500202203

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99093iKGB70..CVT¥200202203

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-52060iKGB70..CVT¥210202203

35788GRACE, THRUST BEARING

main35789-52060iKGB70..CVT¥250202203

NO.1

main35789-52090iKGB70..CVT¥330202203

NO.2

11 parts on this diagram · 1 diagram in section
