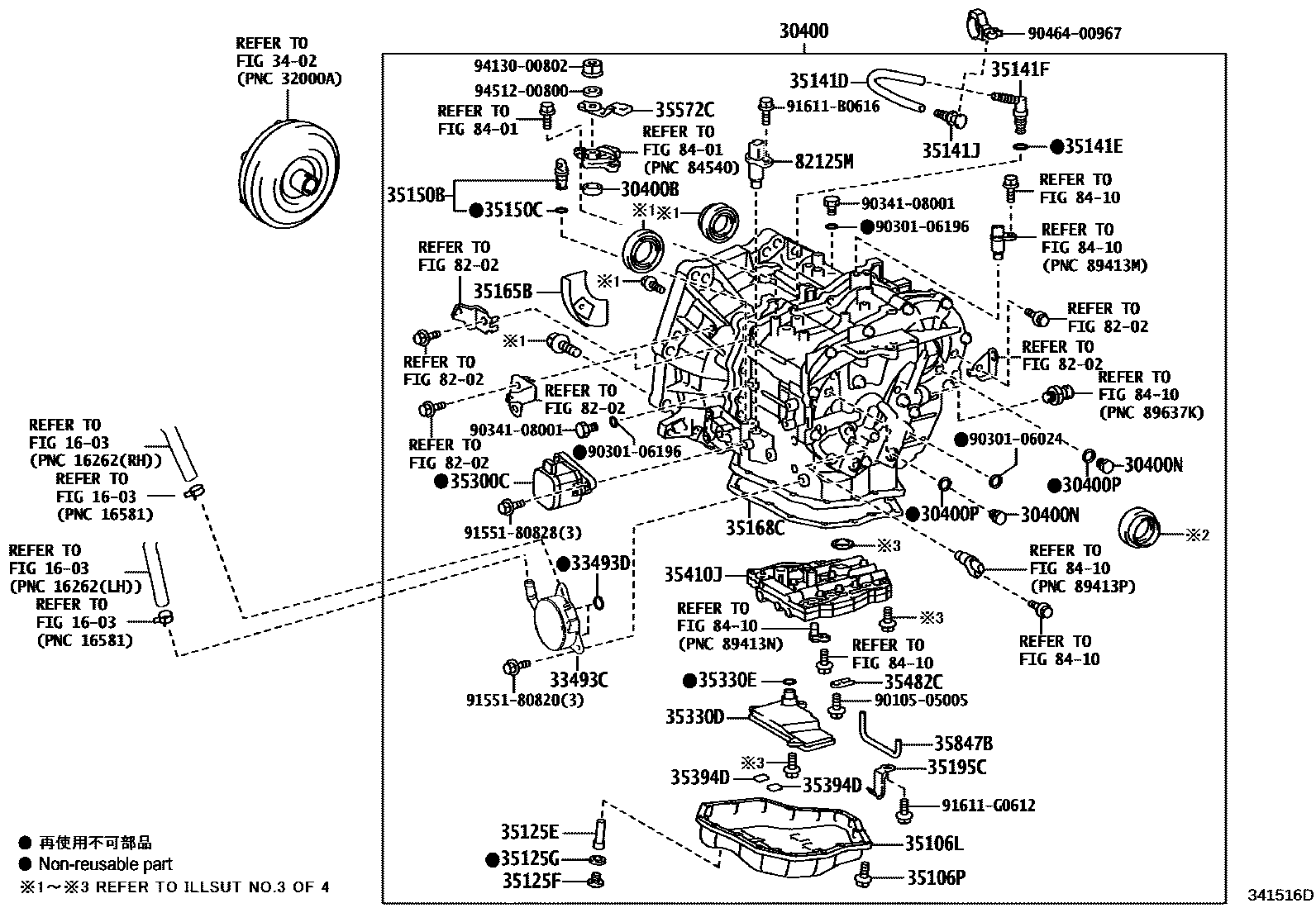

TRANSAXLE ASSY(CVT)
1603
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K412
30400BSEAL, TYPE T OIL, NO.1(FOR CVT)
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
33493DRING, O (FOR TRANSMISSION OIL COOLER)
3402
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141DHOSE(FOR BREATHER PLUG)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35165BPLATE, TRANSMISSION CASE, NO.1
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35195CCLAMP, TRANSAXLE APPLY TUBE, NO.1
35300CPUMP ASSY, OIL W/MOTOR
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35410JBODY ASSY, TRANSMISSION VALVE
35482CCLAMP, TEMPERATURE SENSOR
35572CLEVER, TRANSMISSION CONTROL SHAFT
35847BTUBE, TRANSMISSION LUBE APPLY
8202
82125MWIRE, TRANSMISSION
8401
8410
9010505005
main90105-05005
9030106024
main90301-06024
9030106196
main90301-06196
9034108001
main90341-08001
9046400967
main90464-00967
9155180820
main91551-80820
9155180828
main91551-80828
91611B0616
main91611-B0616
91611G0612
main91611-G0612
9413000802
main94130-00802
9451200800
main94512-00800
45 parts on this diagram · 4 diagrams in section
