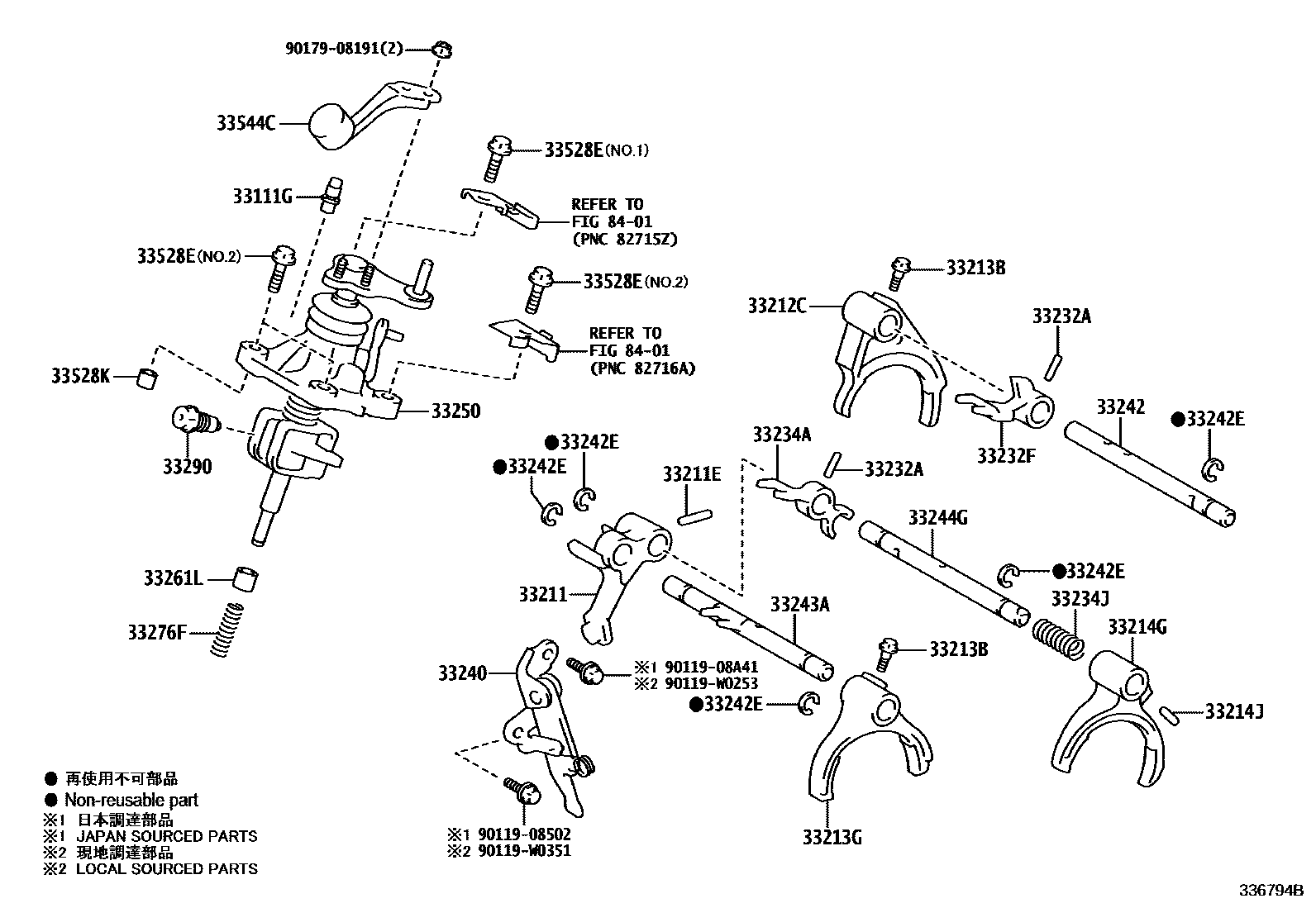

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33211EPIN, STRAIGHT(FOR REVERSE SHIFT FORK)
33212CFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33214JPIN, STRAIGHT(FOR 5TH SHIFT FORK)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33234AHEAD, GEAR SHIFT, NO.3
33234JSPRING, COMPRESSION (FOR SHIFT RETURN)
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244GSHAFT, GEAR SHIFT FORK, NO.3
33250SHAFT ASSY, SHIFT & SELECT LEVER
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33290BALL ASSY, LOCK, NO.1
33528EBOLT (FOR CONTROL SHAFT COVER)
*8-1.25X35-30,(J),NO.1:REFER ILL.
*8-1.25PX35-30,(L),NO.1:REFER ILL.
*8-1.25PX35-30,(L),NO.2:REFER ILL.
*8-1.25PX35-30,(J),NO.2:REFER ILL.
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
33544CDAMPER, SHIFT LEVER
8401
9011908502
main90119-08502
9011908A41
main90119-08A41
90119W0253
main90119-W0253
90119W0351
main90119-W0351
9017908191
main90179-08191
30 parts on this diagram · 1 diagram in section
