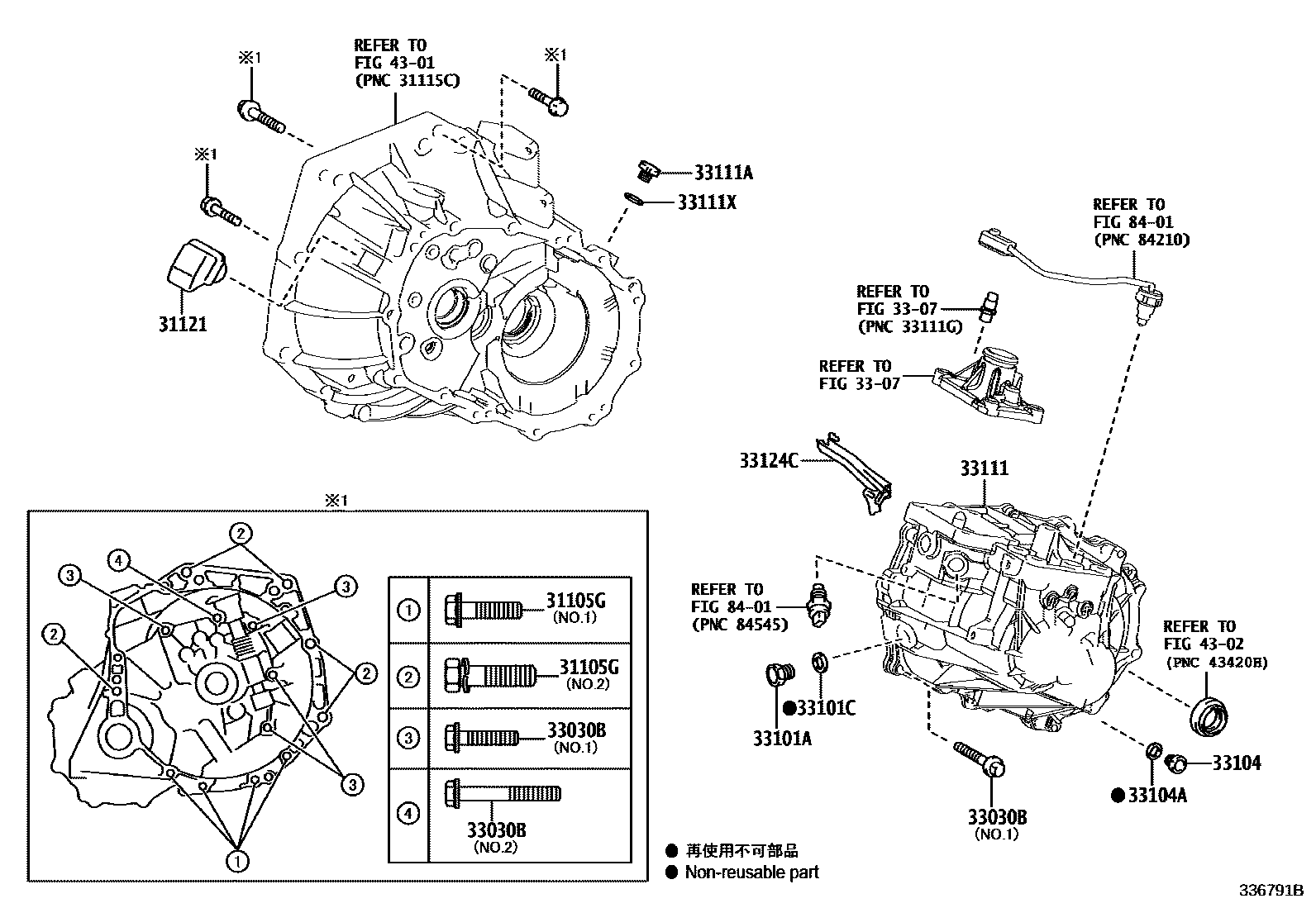

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-W0142iKGB70..LHD..R202203-202401

*10-1.25PX35-26,(L),NO.1:REFER ILL.

main90119-W0097iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203-202401

*12-1.25PX45-30,NO.2:REFER ILLUST.

main91552-81035iKGB70..LHD..R202203-202401

*10-1.25PX45-26,(J),NO.1:REFER ILL.

31121COVER, CLUTCH HOUSING, NO.1

main31121-0H011iKGB70..LHD..R202203-202401

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08261iKGB70..LHD..R202203-202401

*8-1.25PX60-30,(J),NO.2:REFER ILL.

main90105-W0225iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203-202401

*8-1.25PX35-30,NO.1:REFER ILLUST.

main90105-W0226iKGB70..LHD..R202203-202401

*8-1.25PX60-30,(L),NO.2:REFER ILL.

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203-202401

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-A0003iKGB70..R202303-202401

main90430-W0001iKGB70..5F202203-202303

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKGB70..LHD..R202203-202401

33104AGASKET, DRAIN PLUG(MTM)

main90430-A0003iKGB70..R202303-202401

main90430-W0001iKGB70..5F202203-202303

33111CASE, MANUAL TRANSMISSION

main33111-0D070iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203-202401

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iKGB70..LHD..R202203-202401

33111XGASKET, TRANSMISSION CASE PLUG

main90430-A0003iKGB70..R202303-202401

main90430-W0001iKGB70..5F202203-202302

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0H010iKGB70..LHD..R202203-202401

4301

4302

8401

15 parts on this diagram · 1 diagram in section
