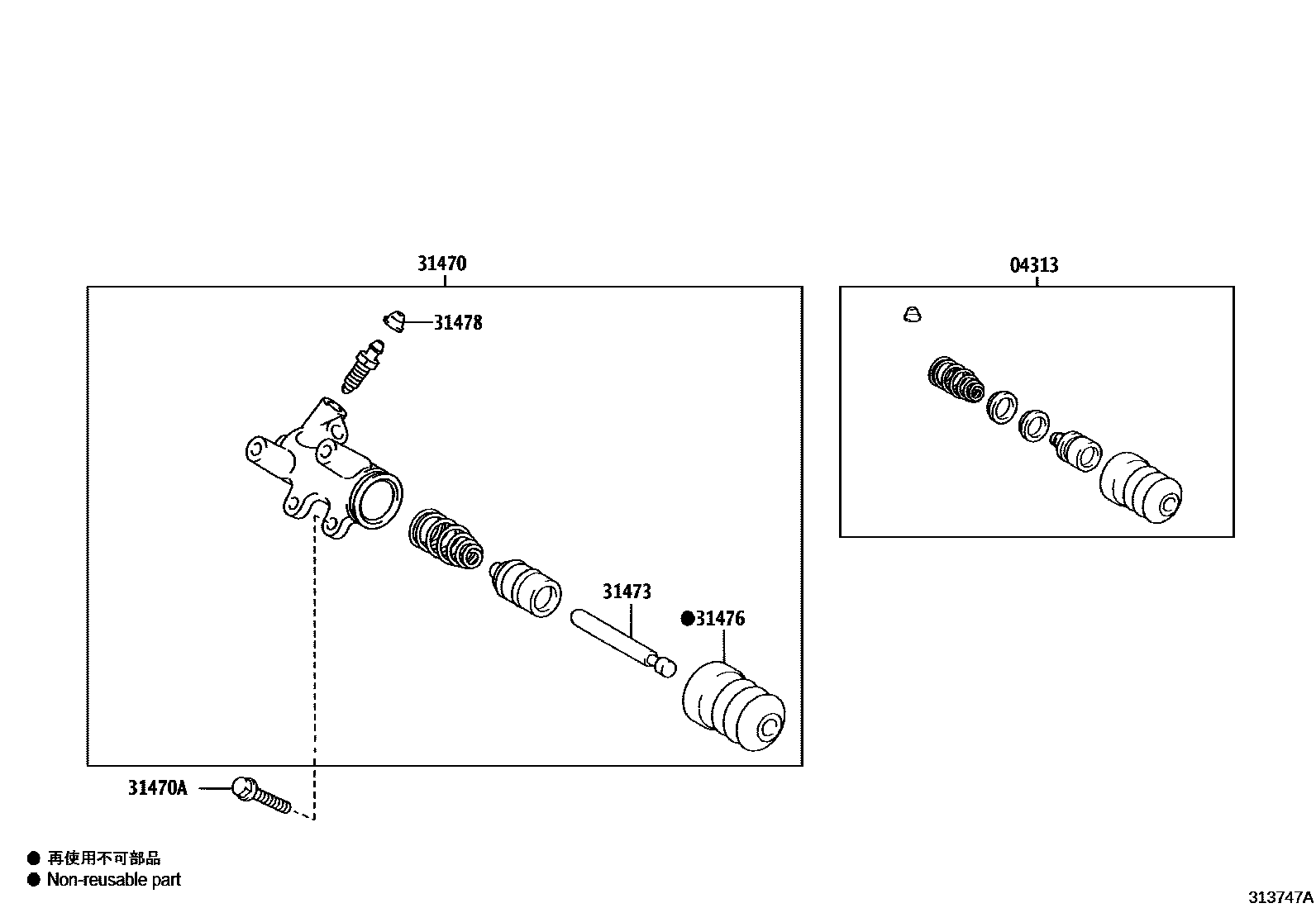

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-52021iKGB70..LHD..R202203-202401

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52102iKGB70..LHD..R202203-202401

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-W0028iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203-202401

*8-1.25PX22-17.1,(L)

main91611-60822iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203-202401

*8-1.25PX22-17.1,(J)

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30070iKGB70..LHD..R202203-202401

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKGB70..LHD..R202203-202401

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKGB70..LHD..R202203-202401

6 parts on this diagram · 1 diagram in section
