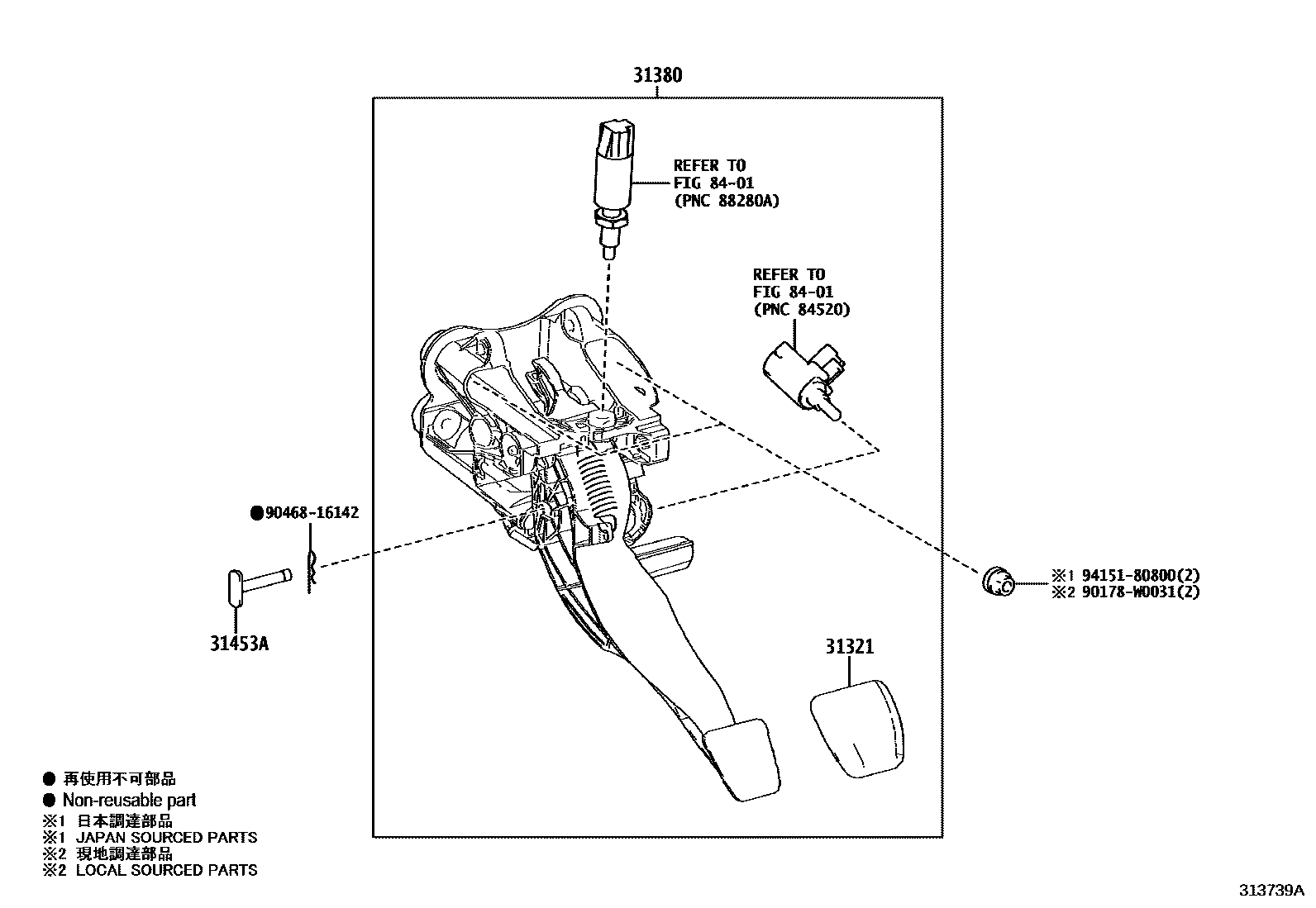

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31321PAD, CLUTCH PEDAL

main31321-42010iKGB70..LHD..R202203-202401

31380SUPPORT ASSY, PEDAL

main31380-K0010iKGB70..LHD..R202203-202401

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main31455-K0010iKGB70..LHD..R202203-202401

L=51.5

main90249-08051iKGB70..RHD..5F202203

L=31.5

8401

90178W0031

main90178-W0031

9046816142

main90468-16142

9415180800

main94151-80800

7 parts on this diagram · 4 diagrams in section
