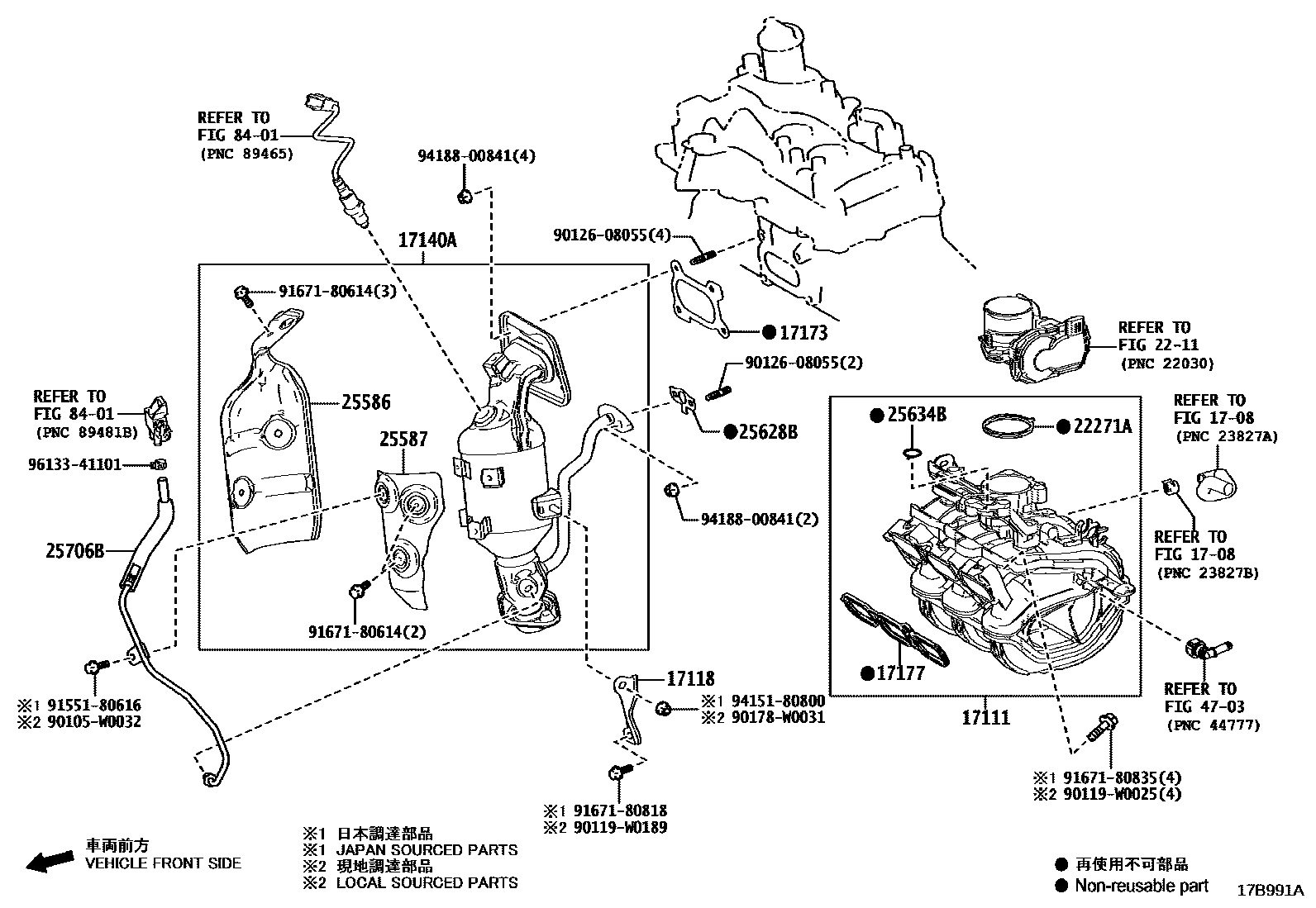

MANIFOLD

1708

17111MANIFOLD, INTAKE

main17120-0Q050i1KRFE..KGB70..LHD..R202203-202401

17118STAY, MANIFOLD

main17118-0Q020i1KRFE..KGB70..LHD..R202203-202401

17140AMANIFOLD ASSY, EXHAUST

main17140-0Q120i1KRFE..KGB70..LHD..R202203-202401

*114=TOYOTA/0Q120/Y

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Q030i1KRFE..KGB70..LHD..R202203-202401

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Q040i1KRFE..KGB70..LHD..R202203-202401

2211

22271AGASKET, THROTTLE BODY

main22271-0Q020i1KRFE..KGB70..LHD..R202203-202401

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0Q070i1KRFE..KGB70..LHD..R202203-202401

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-40010i1KRFE..KGB70..LHD..R202203-202401

25628BGASKET, EGR INLET

main25628-0Q010i1KRFE..KGB70..RHD;1KRFE..KGB70..LHD..(G,K,N)202203-202401

(L)

main25628-40020i1KRFE..KGB70..RHD;1KRFE..KGB70..LHD..(G,K,N)202203-202401

(J)

25634BGASKET, EGR PIPE

main25634-40010i1KRFE..KGB70..LHD..R202203-202401

25706BPIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-0Q010i1KRFE..KGB70..LHD..R202203-202401

4703

8401

90105W0032

main90105-W0032

90119W0025

main90119-W0025

90119W0189

main90119-W0189

9012608055

main90126-08055

90178W0031

main90178-W0031

9155180616

main91551-80616

9167180614

main91671-80614

9167180818

main91671-80818

9167180835

main91671-80835

9415180800

main94151-80800

9418800841

main94188-00841

9613341101

main96133-41101

27 parts on this diagram · 1 diagram in section
