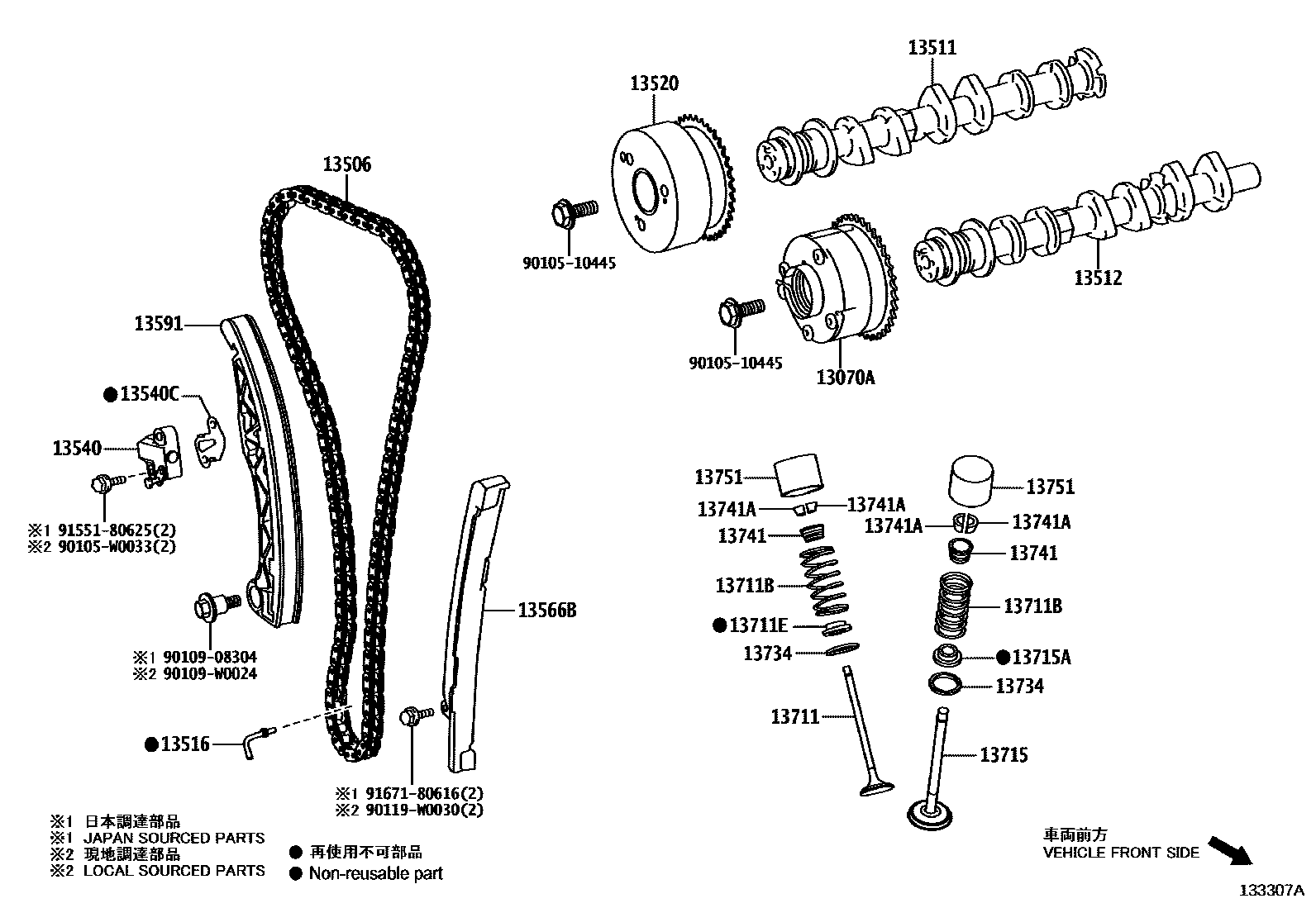

CAMSHAFT & VALVE
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13516JET, OIL
13520SPROCKET ASSY, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
(L)
(J)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.12
T=5.14
T=5.16
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.28
T=5.30
T=5.30
T=5.32
T=5.32
T=5.34
T=5.34
T=5.36
T=5.38
T=5.38
T=5.40
T=5.40
T=5.42
T=5.42
T=5.44
T=5.44
T=5.46
T=5.46
T=5.48
T=5.48
T=5.50
T=5.50
T=5.52
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.60
T=5.62
T=5.64
T=5.64
T=5.66
T=5.66
T=5.68
T=5.68
9010510445
90105W0033
9010908304
90109W0024
main90109-W0024
90119W0030
9155180625
9167180616
26 parts on this diagram · 1 diagram in section
