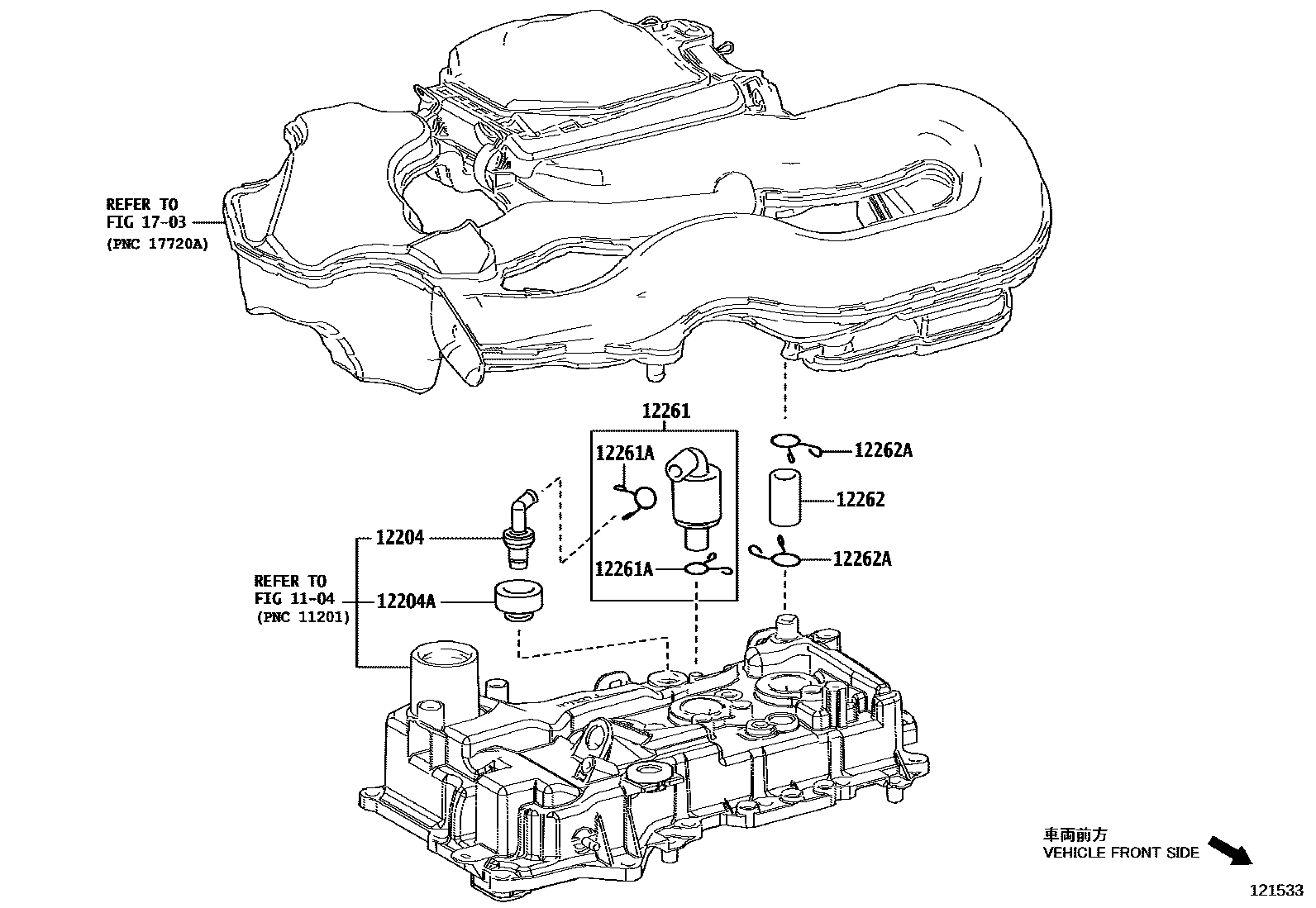

VENTILATION HOSE

1104

12204VALVE SUB-ASSY, VENTILATION

main12204-40040i1KRFE..KGB70..LHD..R202203-202401

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18016i1KRFE..KGB70..LHD..R202203-202401

12261HOSE, VENTILATION

main12261-0Q011i1KRFE..KGB70..LHD..R202203-202401

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15120i1KRFE..KGB70..LHD..R202203-202401

12262HOSE, VENTILATION, NO.2

main12262-40040i1KRFE..KGB70..LHD..R202203-202401

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i1KRFE..KGB70..LHD..R202203-202401

1703

8 parts on this diagram · 1 diagram in section
