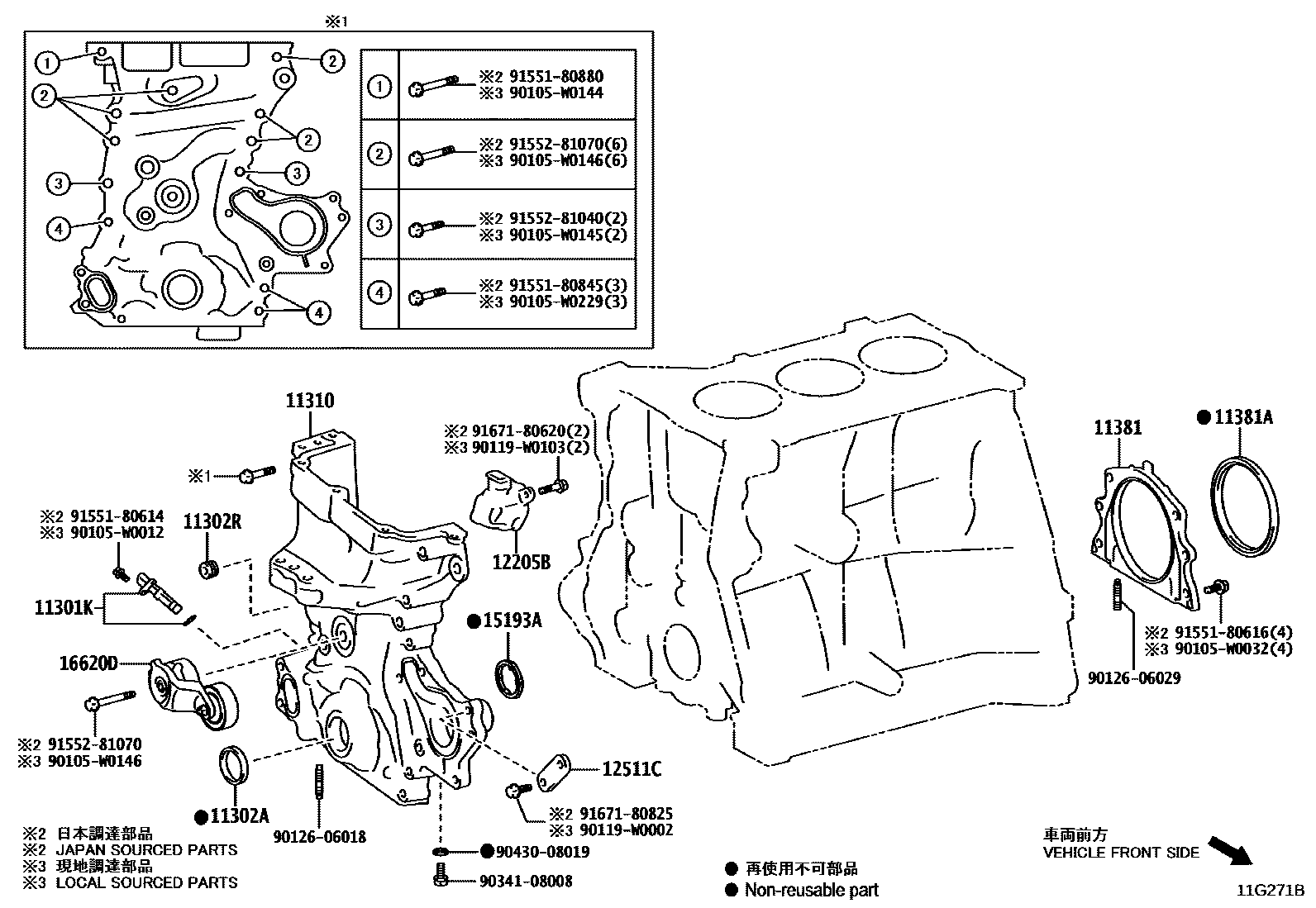

TIMING GEAR COVER & REAR END PLATE

11301KSENSOR, CRANK POSITION

main90919-05086i1KRFE..KGB70..LHD..R¥5,500202203-202401

(J)

main90919-W5004i1KRFE..KGB70..LHD..R202203-202401

(L)

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38092i1KRFE..KGB70..RHD;1KRFE..KGB70..LHD..(G,K,N)¥400202203-202401

(J)

main90311-W0013i1KRFE..KGB70..LHD..R202203-202401

(L)

11302RPLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)

main90344-53006i1KRFE..KGB70..LHD..R¥130202203-202401

11310COVER ASSY, TIMING CHAIN

main11310-0Q040i1KRFE..KGB70..LHD..R202203-202401

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0Q020i1KRFE..KGB70..LHD..R202203-202401

11381ASEAL, ENGINE REAR OIL

main90311-73005i1KRFE..KGB70..LHD..R¥960202203-202401

(J)

main90311-W0018i1KRFE..KGB70..LHD..R202203-202401

(L)

12205BCASE SUB-ASSY, VENTILATION

main12205-0Q020i1KRFE..KGB70202203-202207

12511CBRACKET, ALTERNATOR

main12511-0Q010i1KRFE..KGB70..LHD..R202203-202401

15193AGASKET, OIL PUMP

main15193-40010i1KRFE..KGB70..LHD..R¥200202203-202401

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-0Q021i1KRFE..KGB70..LHD..R202203-202401

90105W0012

main90105-W0012¥100

90105W0032

main90105-W0032¥100

90105W0144

main90105-W0144

90105W0145

main90105-W0145

90105W0146

main90105-W0146

90105W0229

main90105-W0229

90119W0002

main90119-W0002

90119W0103

main90119-W0103

9012606018

main90126-06018¥70

9012606029

main90126-06029¥60

9034108008

main90341-08008¥120

9043008019

main90430-08019¥60

9155180614

main91551-80614¥60

9155180616

main91551-80616¥60

9155180845

main91551-80845¥110

9155180880

main91551-80880¥120

9155281040

main91552-81040¥120

9155281070

main91552-81070¥160

9167180620

main91671-80620¥60

9167180825

main91671-80825¥80

30 parts on this diagram · 1 diagram in section
