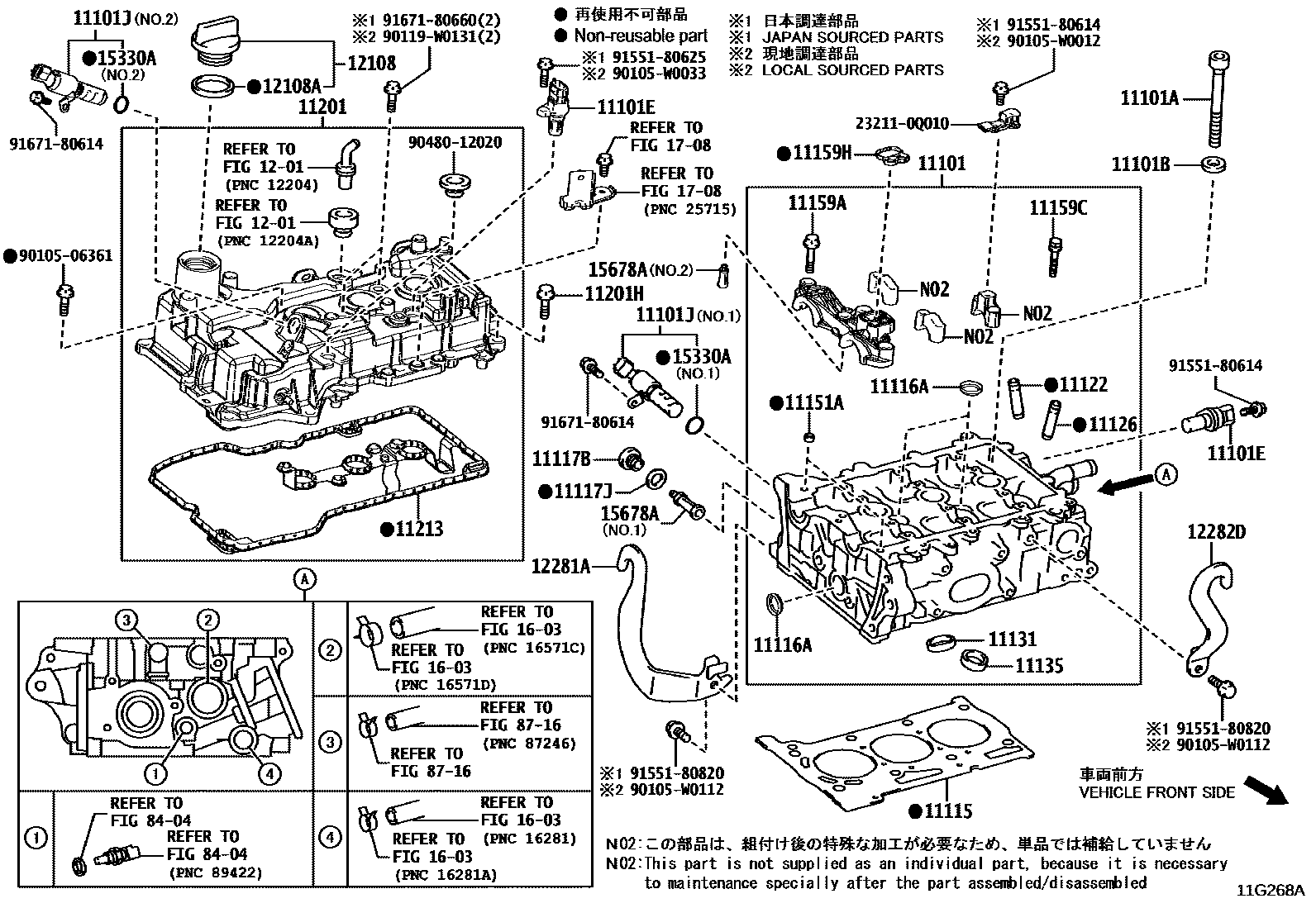

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1
NO.2
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=11,OD=9
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
(J)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(J)
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11201COVER SUB-ASSY, CYLINDER HEAD
11201HBOLT(FOR CYLINDER HEAD COVER)
(J)
(L)
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
NO.1
NO.2
15678AFILTER, OIL CONTROL VALVE
NO.1
NO.2
1603
1708
8404
8716
232110Q010BRACKET, WIRE
main23211-0Q010
9010506361
main90105-06361
90105W0012
main90105-W0012
90105W0033
main90105-W0033
90105W0112
main90105-W0112
90119W0131
main90119-W0131
9048012020
main90480-12020
9155180614
main91551-80614
9155180625
main91551-80625
9155180820
main91551-80820
9167180614
main91671-80614
9167180660
main91671-80660
43 parts on this diagram · 1 diagram in section
