HEATING & AIR CONDITIONING - COOLER PIPING

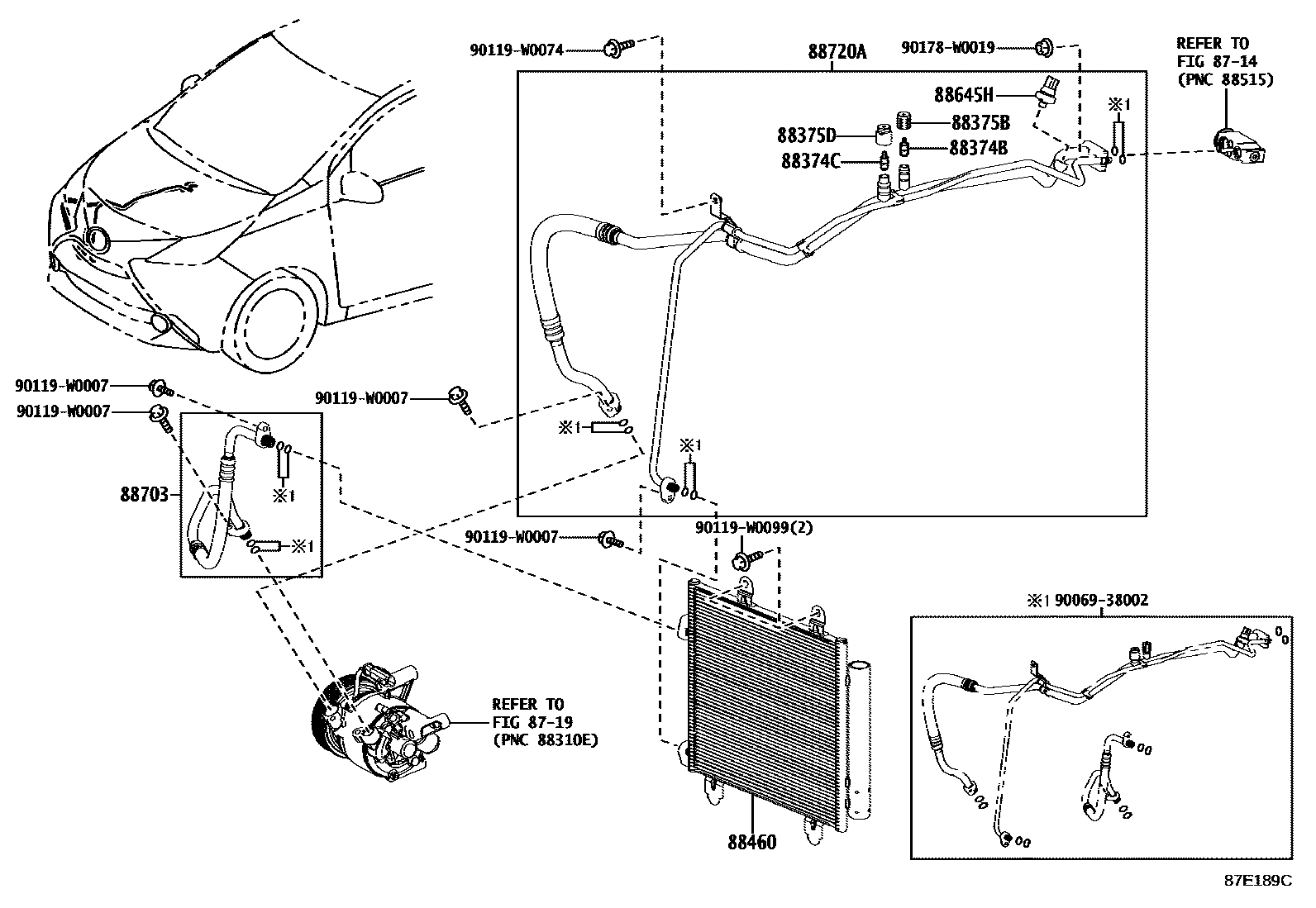

Parts diagram
8714
8719
88374BVALVE, SERVICE, NO.1
main88374-YV010i201805
main88374-YV010i201705-201805
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88374-YV010i201705-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88374-YV010i201705-202104
FRONT AIR CONDITIONER-MANUAL
main88374-YV010i201705-201805
FRONT AIR CONDITIONER-WITHOUT
main88374-YV030i201405-201705
FRONT AIR CONDITIONER-MANUAL
main88374-YV030i201405-201705
FRONT AIR CONDITIONER-WITHOUT
main88374-YV030i201405-201705
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88374-YV030i201405-201705
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
88374CVALVE, SERVICE, NO.2
main88374-YV020i201705-201805
FRONT AIR CONDITIONER-WITHOUT
main88374-YV020i201705-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88374-YV020i201705-202104
FRONT AIR CONDITIONER-MANUAL
main88374-YV020i201705-201805
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88374-YV020i201805
main88374-YV040i201405-201705
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88374-YV040i201405-201705
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88374-YV040i201405-201705
FRONT AIR CONDITIONER-WITHOUT
main88374-YV040i201405-201705
FRONT AIR CONDITIONER-MANUAL
88375BCAP, SERVICE VALVE, NO.1
main88375-YV010i201705-202104
FRONT AIR CONDITIONER-MANUAL
main88375-YV010i201705-201805
FRONT AIR CONDITIONER-WITHOUT
main88375-YV010i201705-201805
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88375-YV010i201705-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88375-YV010i201805
main88375-YV030i201405-201705
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88375-YV030i201405-201705
FRONT AIR CONDITIONER-WITHOUT
main88375-YV030i201405-201705
FRONT AIR CONDITIONER-MANUAL
main88375-YV030i201405-201705
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
88375DCAP, SERVICE VALVE, NO.2
main88375-YV020i201705-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88375-YV020i201705-202104
FRONT AIR CONDITIONER-MANUAL
main88375-YV020i201705-201805
FRONT AIR CONDITIONER-WITHOUT
main88375-YV020i201705-201805
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88375-YV020i201805
main88375-YV040i201405-201705
FRONT AIR CONDITIONER-MANUAL
main88375-YV040i201405-201705
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88375-YV040i201405-201705
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88375-YV040i201405-201705
FRONT AIR CONDITIONER-WITHOUT
88460CONDENSER ASSY, COOLER
main88450-YV020i202105
main88450-YV020i201405-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88450-YV020i201405-202104
FRONT AIR CONDITIONER-MANUAL
main88450-YV020i201405-201805
FRONT AIR CONDITIONER-WITHOUT
main88450-YV020i201805-202104
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
88645HSWITCH, PRESSURE NO.1
main88645-YV010i201405-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88645-YV010i201405-202104
FRONT AIR CONDITIONER-MANUAL
main88645-YV010i201405-201805
FRONT AIR CONDITIONER-WITHOUT
main88645-YV010i201405-201805
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88645-YV010i201805-202104
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-MANUAL
main88645-YV010i201805
88703HOSE SUB-ASSY, DISCHARGE
main88703-YV010i201805
main88703-YV010i201405-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88703-YV010i201405-202104
FRONT AIR CONDITIONER-MANUAL
main88703-YV010i201405-201805
FRONT AIR CONDITIONER-WITHOUT
main88703-YV010i201405-201805
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88703-YV010i201805-202104
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-MANUAL
main88703-YV020i201405-201805
FRONT AIR CONDITIONER-WITHOUT
main88703-YV020i201405-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
88720AHOSE & ACCESSORY, AIR CONDITIONER
main88720-YV030i201405-201705
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88720-YV030i201405-201705
FRONT AIR CONDITIONER-MANUAL
main88720-YV030i201405-201705
FRONT AIR CONDITIONER-WITHOUT
main88720-YV030i201405-201705
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88720-YV040i201405-201705
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88720-YV040i201405-201705
FRONT AIR CONDITIONER-WITHOUT
main88720-YV050i201705-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88720-YV050i201705-201805
FRONT AIR CONDITIONER-MANUAL
main88720-YV050i201705-201805
FRONT AIR CONDITIONER-WITHOUT
main88720-YV050i201705-201805
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&FRONT AIR CONDITIONER-WITHOUT
main88720-YV060i201705-201805
EUROPE REFRIGERANT CORRESPONDENCE-REFRIGERANT GAS TYPE=R-1234YF&FRONT AIR CONDITIONER-WITHOUT
main88720-YV060i201705-201805
FRONT AIR CONDITIONER-WITHOUT
main88720-YV071i201805
main88720-YV071i201805-202104
FRONT AIR CONDITIONER-MANUAL
9006938002
main90069-38002¥320
90119W0007
main90119-W0007
90119W0074
main90119-W0074
90119W0099
main90119-W0099¥60
90178W0019
main90178-W0019¥110

15 parts on this diagram · 2 diagrams in section
