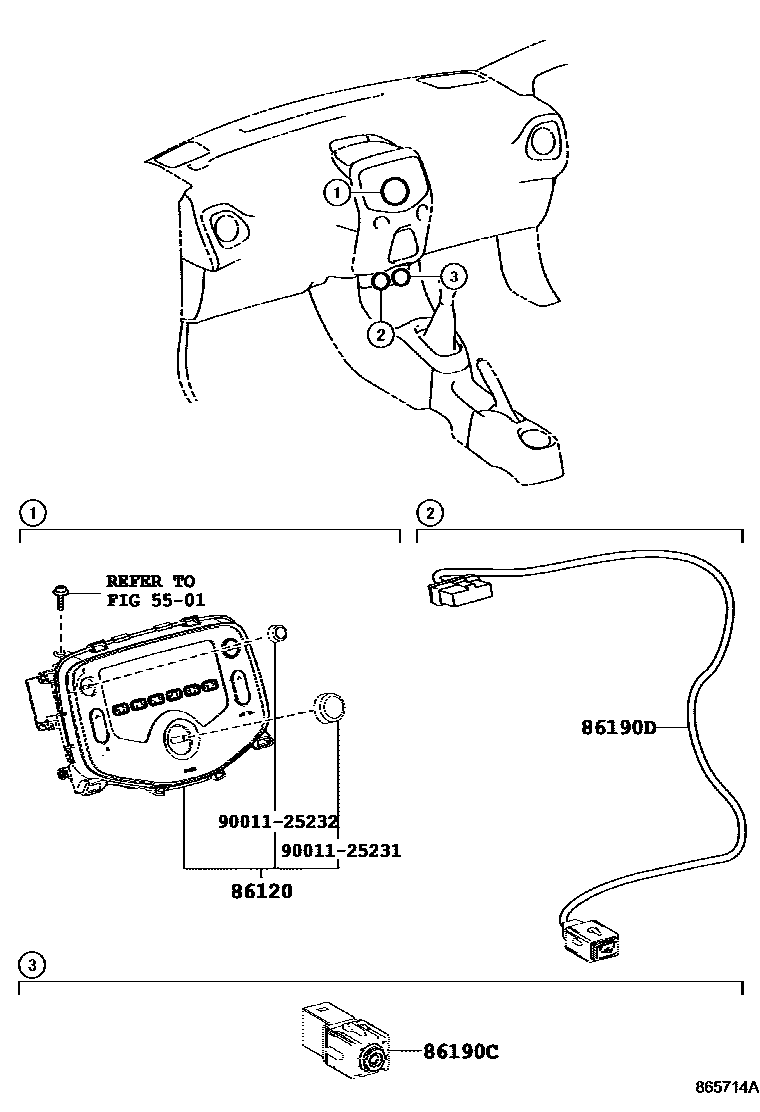

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1AUDIO UNIT & JACK ADAPTER 0002 1I-POD/VTR CONNECTION CABLE 0003 1AMPLIFIER(DOP)

5501

86120RECEIVER ASSY, RADIO

main86120-0H040iKGB40..LEDIN201405-201805

PANASONIC,AUDIO-AM/FM & 2SPEAKER

main86120-0H040iKGB40..LEDIN201405-202006

PANASONIC

main86120-0H040iKGB40..5D..LEDIN201805-202105

PANASONIC,AUDIO-AM/FM , 2SPEAKER

main86120-0H040iKGB40..LEDIN201805-201904

PANASONIC,AUDIO-RADIO LESS , 2SPEAKER

main86120-0H040iKGB40..LEDIN201805-201904

PANASONIC,AUDIO-RADIO LESS , SPEAKER LESS

main86120-0H050iKGB40..RHD..3D;KGB40..RHD..5D..5FS201805-202105

PANASONIC,AUDIO-AM/FM , 4SPEAKER , BLUETOOTH

main86120-0H050iKGB40,PAB40201405-201805

PANASONIC,AUDIO-AM/FM & 4SPEAKER & BLUETOOTH

main86120-0H060iKGB40,PAB40201405-201805

PANASONIC,AUDIO-AM/FM & DAB & 4SPEAKER & BLUETOOTH

main86120-0H060iKGB40..5D201805-202104

PANASONIC,AUDIO-AM/FM , DAB , 4SPEAKER , BLUETOOTH

86190CADAPTER ASSY, STEREO JACK, NO.1

main86191-YV010iKGB40..5D..LEDIN202006-202105

AUDIO-AM/FM , 4SPEAKER , BLUETOOTH

main86191-YV010iKGB40..5D..LEDIN202006-202105

AUDIO-AM/FM , 2SPEAKER

main86191-YV010iKGB40..5D..LV1201405-202104

main86191-YV010iKGB40..5D..LEDIN202006-202104

AUDIO-AM/FM , DAB , 4SPEAKER , BLUETOOTH

86190DADAPTER ASSY, STEREO JACK, NO.2

main86190-YV020iKGB40..LHD..5D201405-202104

USB CONNECTION

main86190-YV030iKGB40..RHD..5D201405-202104

USB CONNECTION

9001125231

main90011-25231

9001125232

main90011-25232

6 parts on this diagram · 3 diagrams in section
