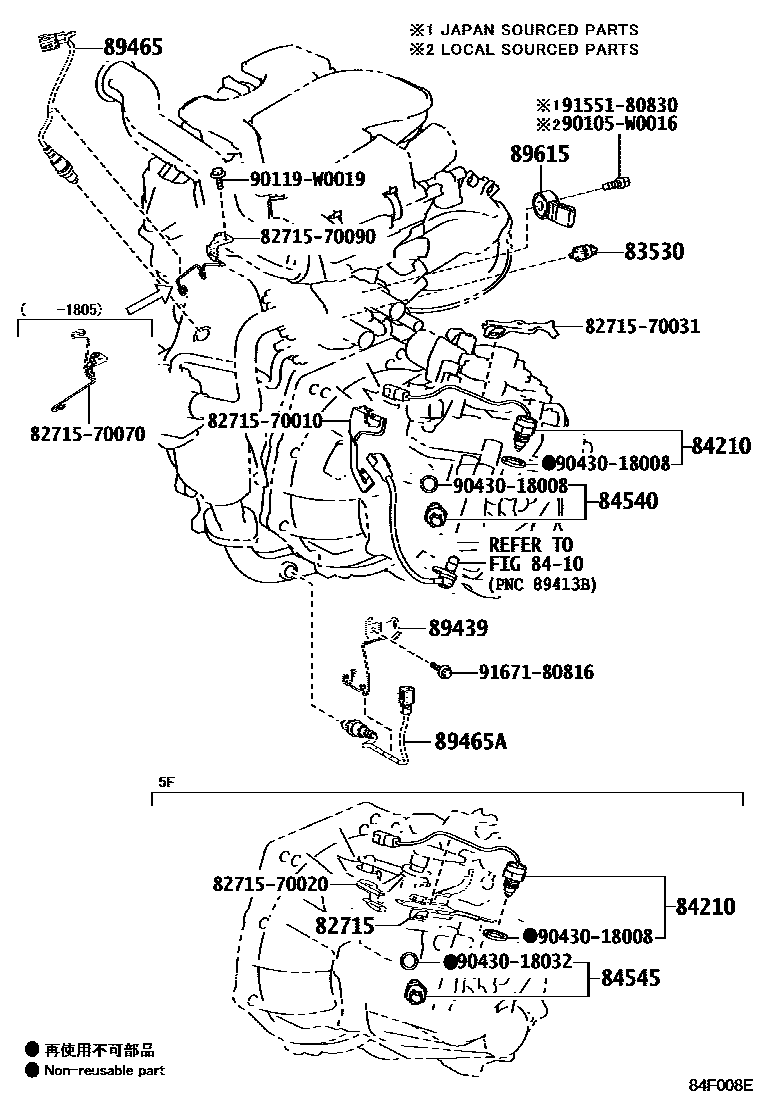

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iKGB40201405-201805

(L)

main83530-28020iKGB40201405-201805

(J),DENSO

main83530-60020iKGB40..5D201805

(J),YAZAKI

mainSU00101085iPAB40201405-201805

8410

84210SWITCH ASSY, BACK-UP LAMP

main84210-70010iKGB40..3D201805-202104

sub84210-52021

mainSU001A0799iPAB40201405-201805

84540SWITCH ASSY, NEUTRAL START

main84540-70020iKGB40..5D..5FS201805

sub84540-17010

84545SWITCH, NEUTRAL POSITION

main84545-52010iKGB40..5D..5F201805

LOW FUEL CONSUMPTION PKG.-WITH(STOP & START SYSTEM)

89439BRACKET, SENSOR

main82715-70080iKGB40201405-201505

main82715-70100iKGB40201505-201805

89465SENSOR, OXYGEN

main89465-0H030iKGB40201405-201805

main89465-0H060iKGB40..3D201805-202105

main89465-YV010iPAB40201405-201805

89465ASENSOR, OXYGEN NO.2

main89465-0H040iKGB40201405-201604

main89465-0H050iKGB40201605-201805

main89465-0H070iKGB40..3D201805-202105

main89465-YV010iPAB40201405-201805

89615SENSOR, KNOCK CONTROL

main89615-0H010iKGB40..3D201805-202105

mainSU00101118iPAB40201405-201805

8271570010BRACKET,WIRING HARNESS CLAMP

main82715-70010

8271570020BRACKET,WIRING HARNESS CLAMP

main82715-70020

8271570031BRACKET,WIRING HARNESS CLAMP

main82715-70031

8271570070BRACKET,WIRING HARNESS CLAMP

main82715-70070

8271570090BRACKET,WIRING HARNESS CLAMP

main82715-70090

90105W0016

main90105-W0016

90119W0019

main90119-W0019

9043018008

main90430-18008

9043018032

main90430-18032

9155180830

main91551-80830

9167180816

main91671-80816

21 parts on this diagram · 11 diagrams in section
