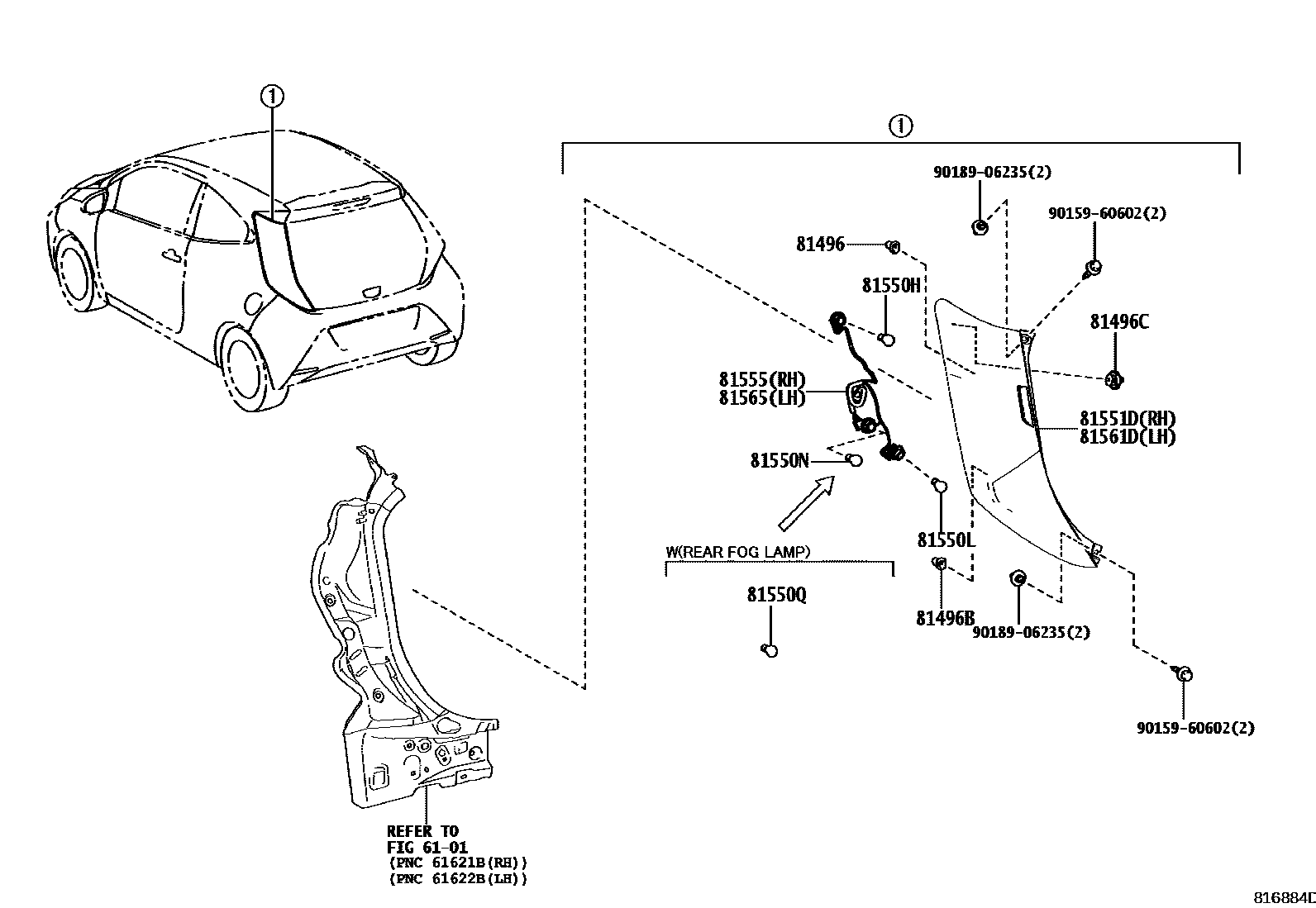

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main76817-26040×2iKGB40..3D201805-202104

81496BGUIDE, REAR LAMP

main81496-52020×2iKGB40..5D201805

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iKGB40,PAB40201405-201805

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0H230iKGB40..LHD..3D201805-202104

main81550-0H240iKGB40..RHD..3D201805-202104

81550HBULB, TAIL & STOP LAMP

main90981-13094×2iKGB40,PAB40201405-201805

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15028×2iKGB40,PAB40201405-201805

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iKGB40..3D201805-202104

12V 16W

main90981-13093iKGB40,PAB40201405-201805

12V 21W

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iKGB40..5D201805

12V 21W

main90981-13093iKGB40,PAB40201405-201805

12V 21W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0H110iKGB40,PAB40..LHD201405-201805

main81551-0H120iKGB40,PAB40..RHD201405-201805

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0H110iKGB40,PAB40..LHD201405-201805

main81555-0H120iKGB40,PAB40..RHD201405-201805

main81555-0H230iKGB40..LHD..3D201805-202104

main81555-0H240iKGB40..RHD..3D201805-202104

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0H110iKGB40,PAB40..LHD201405-201805

main81561-0H120iKGB40,PAB40..RHD201405-201805

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0H110iKGB40,PAB40..RHD201405-201805

main81555-0H120iKGB40,PAB40..LHD201405-201805

main81555-0H230iKGB40..RHD..3D201805-202104

main81555-0H240iKGB40..LHD..3D201805-202104

9015960602

main90159-60602

9018906235

main90189-06235

15 parts on this diagram · 2 diagrams in section
