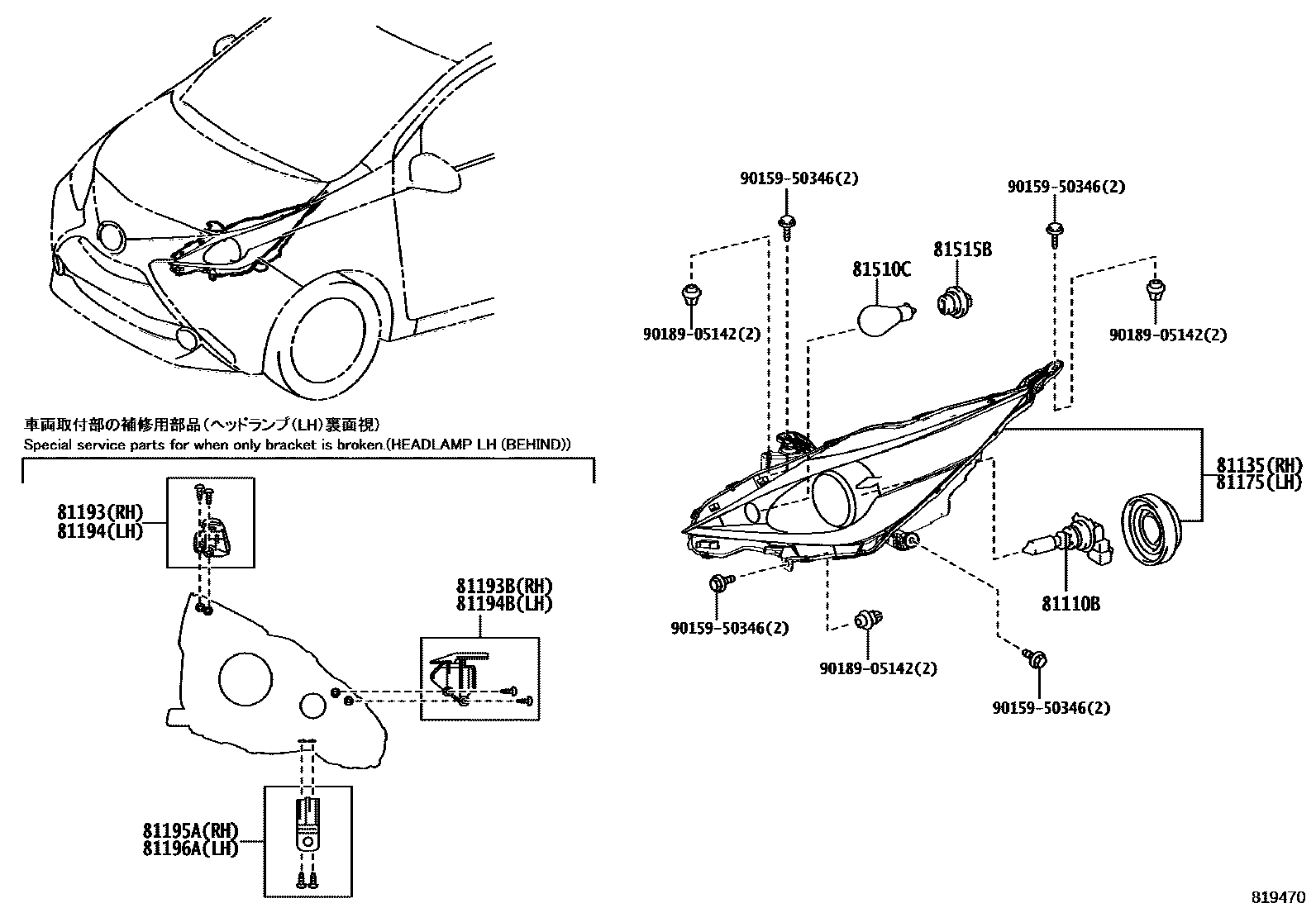

HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13062iKGB40,PAB40201405-201805

12V 55W,HALOGEN

main90981-13091iKGB40..3D201805-202104

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0H130iKGB40,PAB40..LHD201405-201502

sub81130-0H131

main81130-0H131iKGB40,PAB40..LHD201502-201805

main81130-0H140iKGB40,PAB40..RHD201405-201502

sub81130-0H141

main81130-0H141iKGB40,PAB40..RHD201502-201805

main81130-0H210iKGB40..LHD..3D201805-202104

main81130-0H220iKGB40..RHD..3D201805-202104

81175UNIT ASSY, HEADLAMP, LH

main81170-0H130iKGB40,PAB40..LHD201405-201502

main81170-0H131iKGB40,PAB40..LHD201502-201805

main81170-0H140iKGB40,PAB40..RHD201405-201502

sub81170-0H141

main81170-0H141iKGB40,PAB40..RHD201502-201805

main81170-0H210iKGB40..LHD..3D201805-202104

main81170-0H220iKGB40..RHD..3D201805-202104

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-0H040iKGB40,PAB40201405-202104

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-0H050iKGB40..3D201405-202104

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-0H040iKGB40,PAB40201405-202104

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-0H050iKGB40,PAB40201405-202104

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81193-0H060iKGB40..3D201405-202104

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81194-0H060iKGB40,PAB40201405-202104

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13093iKGB40..3D201805-202104

12V 21W

main99132-11210iKGB40,PAB40201405-201805

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81103iKGB40..5D201405-202104

9015950346

main90159-50346

9018905142

main90189-05142

13 parts on this diagram · 2 diagrams in section
