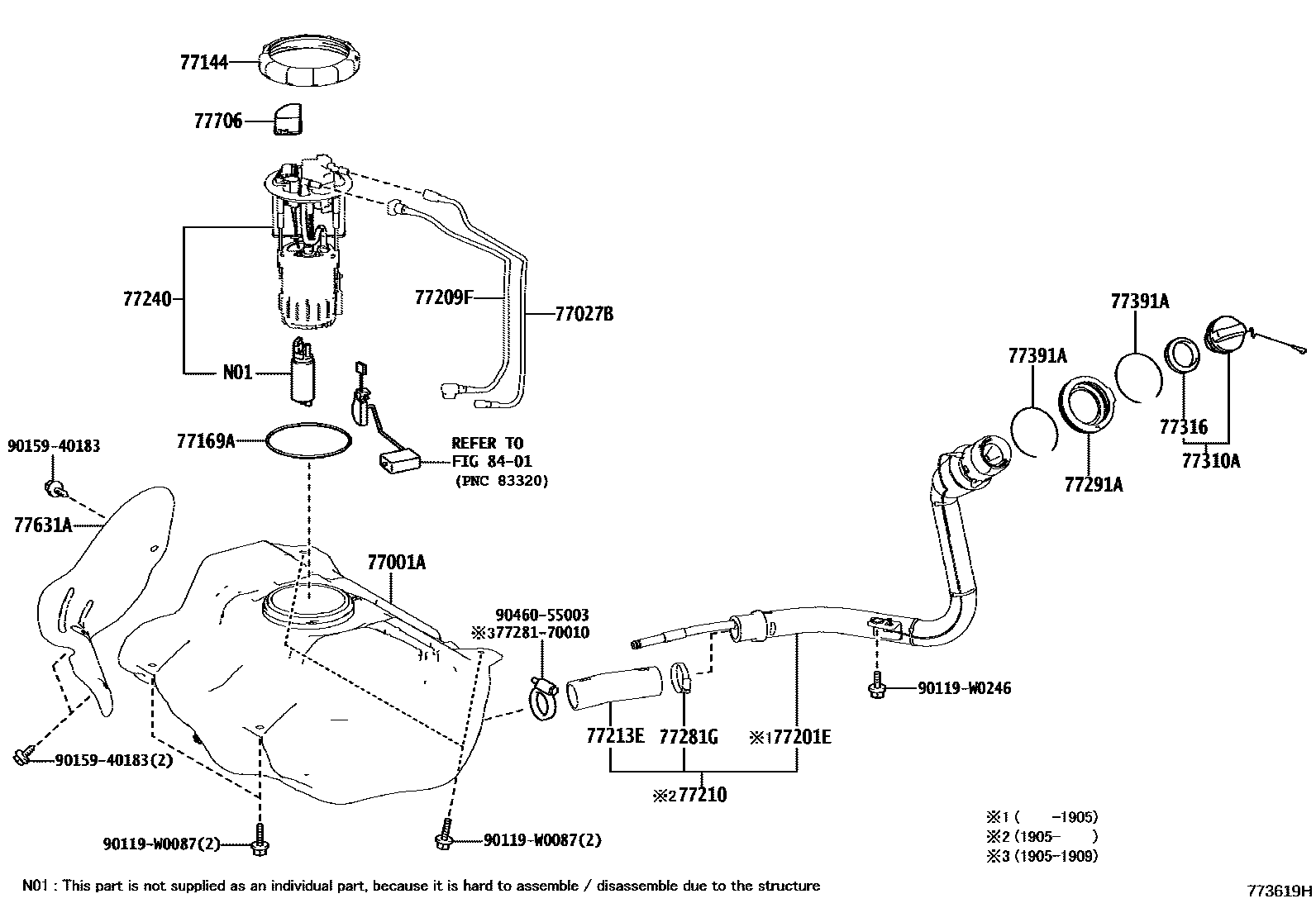

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER

77001ATANK SUB-ASSY, FUEL

main77001-0H040iKGB40,PAB40201405-201905

main77001-0H050iKGB40..3D201905-202104

77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1

main77027-0H010iKGB40,PAB40201405-201905

main77027-0H020iKGB40..5D201905-202104

77144RETAINER, FUEL PUMP GAUGE

main77144-0H010iKGB40..5D201405-202104

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0H010iKGB40,PAB40201405-202104

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0H050iKGB40,PAB40201405-201905

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0H010iKGB40,PAB40201405-202104

77210PIPE ASSY, FUEL TANK FILLER

main77210-0H030iKGB40201905-201909

sub77210-0H031

sub90460-55003

main77210-0H031iKGB40..3D201909-202104

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-0H022iKGB40,PAB40201405-201905

main77213-0H030iKGB40201905-201909

sub77213-0H050

sub90460-55003

main77213-0H050iKGB40..3D201909-202104

77240TUBE ASSY, FUEL SUCTION

main77240-0H030iKGB40,PAB40201405-202104

77281GCLAMP, FUEL HOSE

main77281-0H010iKGB40..3D201405-202104

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0H030iKGB40,PAB40201405-202104

77310ACAP ASSY, FUEL TANK

main77300-52030iKGB40,PAB40201405-202104

77316GASKET, FUEL TANK CAP

main77316-52040iKGB40,PAB40201405-202104

77391ARING, FUEL INLET BOX

main77391-0H010iKGB40,PAB40201405-202104

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-0H010iKGB40,PAB40201405-202104

77706FILTER SUB-ASSY, CHARCOAL CANISTER

main77706-0H010iKGB40,PAB40201405-202103

sub77706-0H020

main77706-0H020iKGB40..5D202104

8401

7728170010BRACKET, FUEL MAIN TUBE, NO.1

main77281-70010

90119W0087

main90119-W0087

90119W0246

main90119-W0246

9015940183

main90159-40183

9046055003

main90460-55003

22 parts on this diagram · 3 diagrams in section
