MUDGUARD & SPOILER

5201

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0H030iKGB40,PAB40201405-202104

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0H030iKGB40,PAB40201405-202104

6708

75865EPROTECTOR, ROCKER PANEL MOULDING, RH

main75865-0H010iKGB40,PAB40201405-202104

75866EPROTECTOR, ROCKER PANEL MOULDING, LH

main75866-0H010iKGB40,PAB40201405-202104

76621AMUDGUARD, FRONT BODY, FRONT RH

76622CMUDGUARD, FRONT FENDER, LH

76851COVER, FRONT SPOILER

main76851-0H020iKGB40,PAB40201405-202104

76859BPROTECTOR, FRONT SPOILER SIDE, NO.2 RH

main76859-0H010iKGB40..5FS201405-202104

WITH(STOP & START SYSTEM)

76869BPROTECTOR, FRONT SPOILER SIDE, NO.2 LH

main76869-0H010iKGB40..5FS201405-202104

WITH(STOP & START SYSTEM)

76869CGROMMET, SCREW, NO.1

main90189-06237iKGB40,PAB40¥100201405-202104

76869DSCREW, NO.2

main90159-W0007iKGB40,PAB40¥100201405-202104

76877APROTECTOR, FRONT SPOILER

main76877-0H030iKGB40,PAB40201405-202104

9015960602

main90159-60602¥60

9018906006

main90189-06006¥100

9046707166

main90467-07166¥90

9046718015

main90467-18015¥140

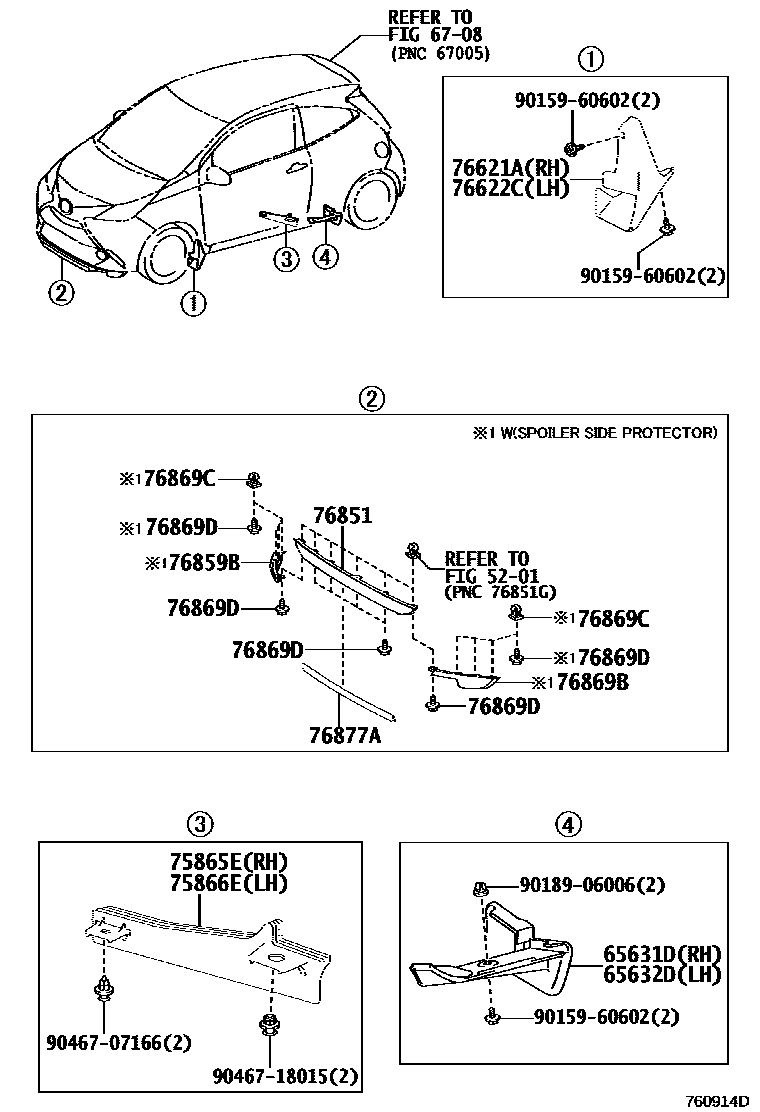

18 parts on this diagram · 1 diagram in section
