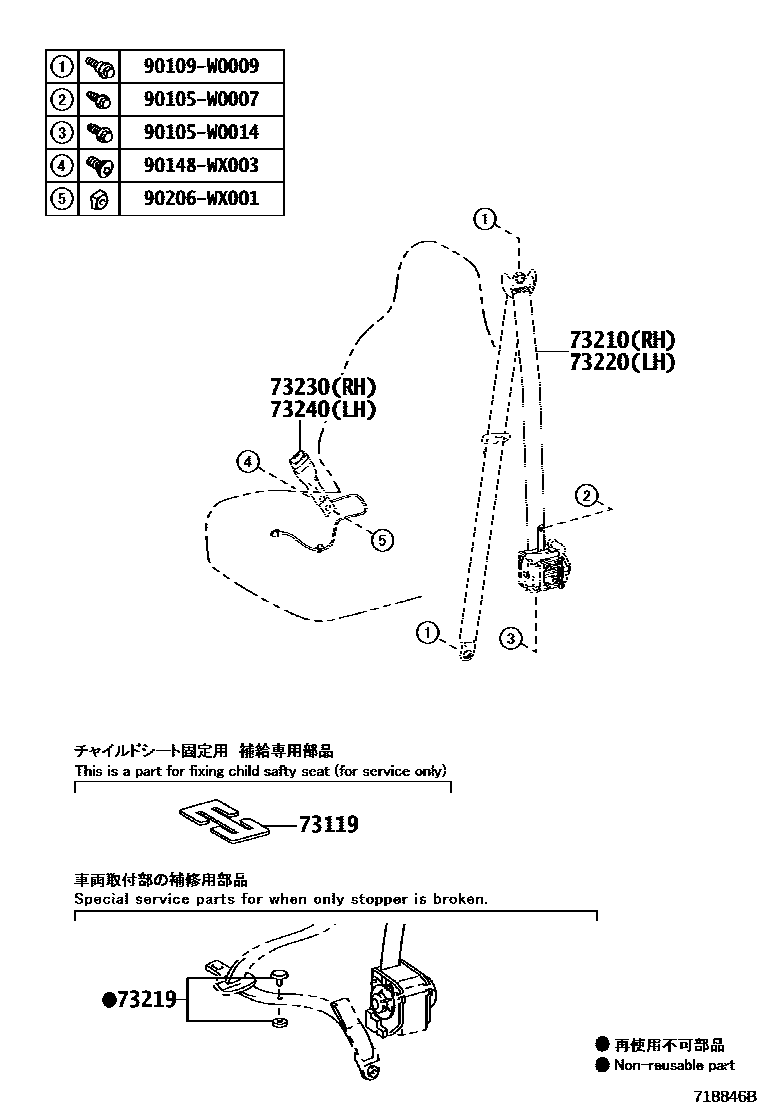

SEAT BELT & CHILD RESTRAINT SEAT
73119PLATE, SEAT BELT WEBBING CLIP
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,4#,8#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,4#,8#
73219STOPPER, TONGUE PLATE
BLACK
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM0#,1#,2#,4#,8#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,4#,8#
73230BELT ASSY, FRONT SEAT INNER, RH
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#
73240BELT ASSY, FRONT SEAT INNER, LH
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#
90105W0007
main90105-W0007
90105W0014
main90105-W0014
90109W0009
main90109-W0009
90148WX003
main90148-WX003
90206WX001
main90206-WX001
11 parts on this diagram · 2 diagrams in section
