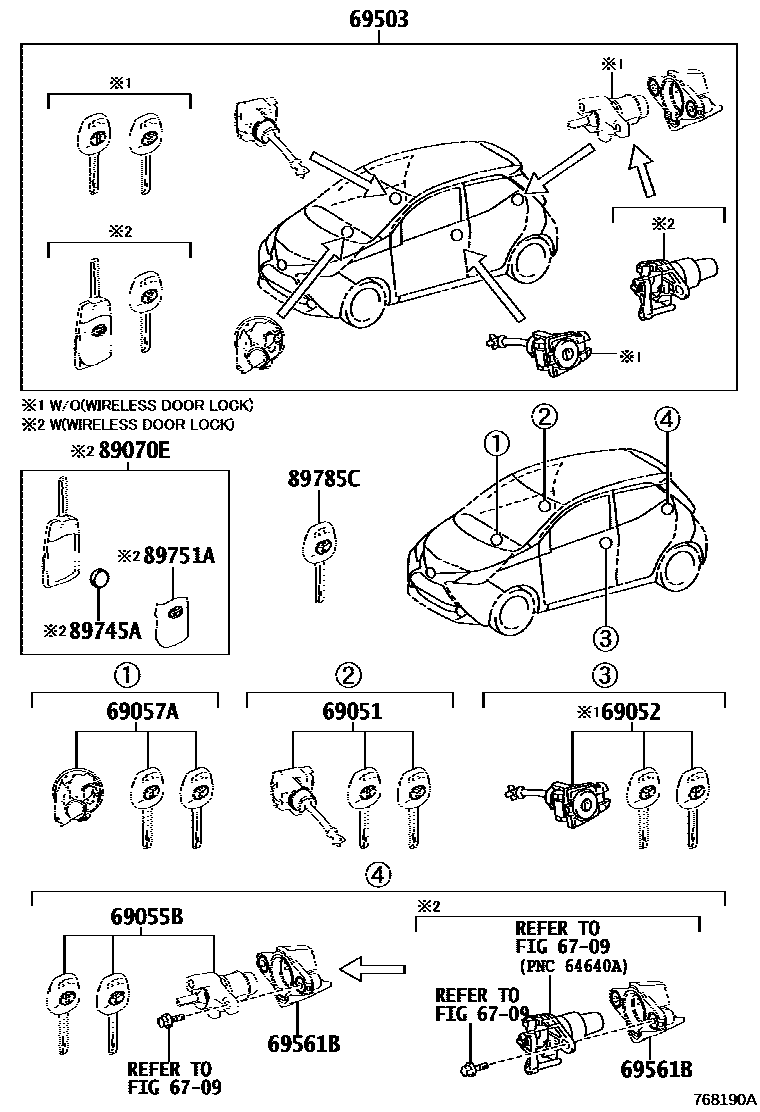

LOCK CYLINDER SET
6709
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69561BRETAINER, BACK DOOR LOCK CYLINDER
89070ETRANSMITTER ASSY, DOOR CONTROL
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
89745ABATTERY, TRANSMITTER
CR2016
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
89751ACOVER, TRANSMITTER HOUSING
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
89785CTRANSMITTER, TRANSPONDER KEY MASTER
CUT KEY
WIRELESS DOOR LOCK-WITHOUT,CUT KEY
11 parts on this diagram · 3 diagrams in section
