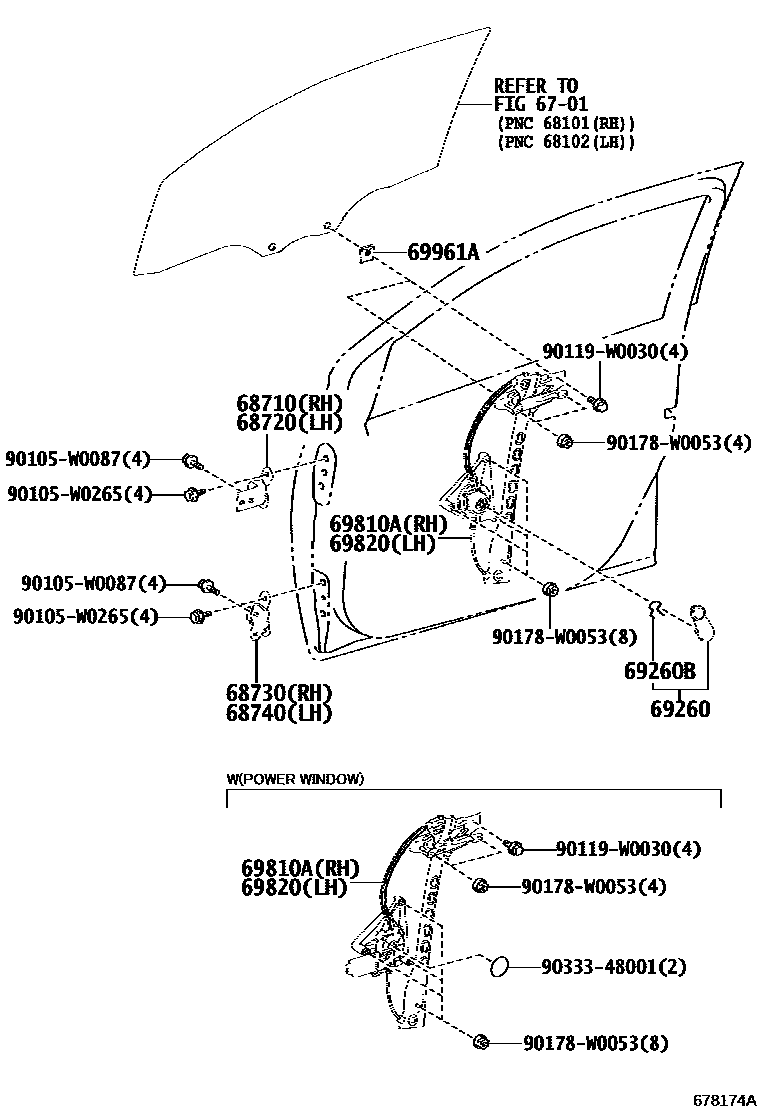

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D040iKGB40,PAB40201405-202104

sub68710-12151

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D040iKGB40,PAB40201405-202104

sub68720-12151

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02050iKGB40,PAB40201405-202104

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02050iKGB40,PAB40201405-202104

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main90524-15005

main69260-0D010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0H030iKGB40,PAB40201405-201406

sub69810-0H120

main69810-0H031iKGB40..5D201409-201805

main69810-0H070iKGB40,PAB40..3D201406-201407

sub69810-0H100

main69810-0H071iKGB40..3D201409-202104

main69810-0H100iKGB40,PAB40..3D201407-201409

sub69810-0H071

main69810-0H120iKGB40,PAB40..5D201407-201409

sub69810-0H031

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0H030iKGB40,PAB40201405-201406

sub69820-0H110

main69820-0H031iKGB40,PAB40..5D201409-201805

main69820-0H070iKGB40,PAB40..3D201406-201407

sub69820-0H090

main69820-0H071iKGB40,PAB40..3D201409-202104

main69820-0H090iKGB40,PAB40..3D201407-201409

sub69820-0H071

main69820-0H110iKGB40,PAB40..5D201407-201409

sub69820-0H031

69961ARETAINER, FRONT DOOR GLASS

main69961-0H030iKGB40..5D201405-202104

90105W0087

main90105-W0087

90105W0265

main90105-W0265

90119W0030

main90119-W0030

90178W0053

main90178-W0053

9033348001

main90333-48001

15 parts on this diagram · 1 diagram in section
