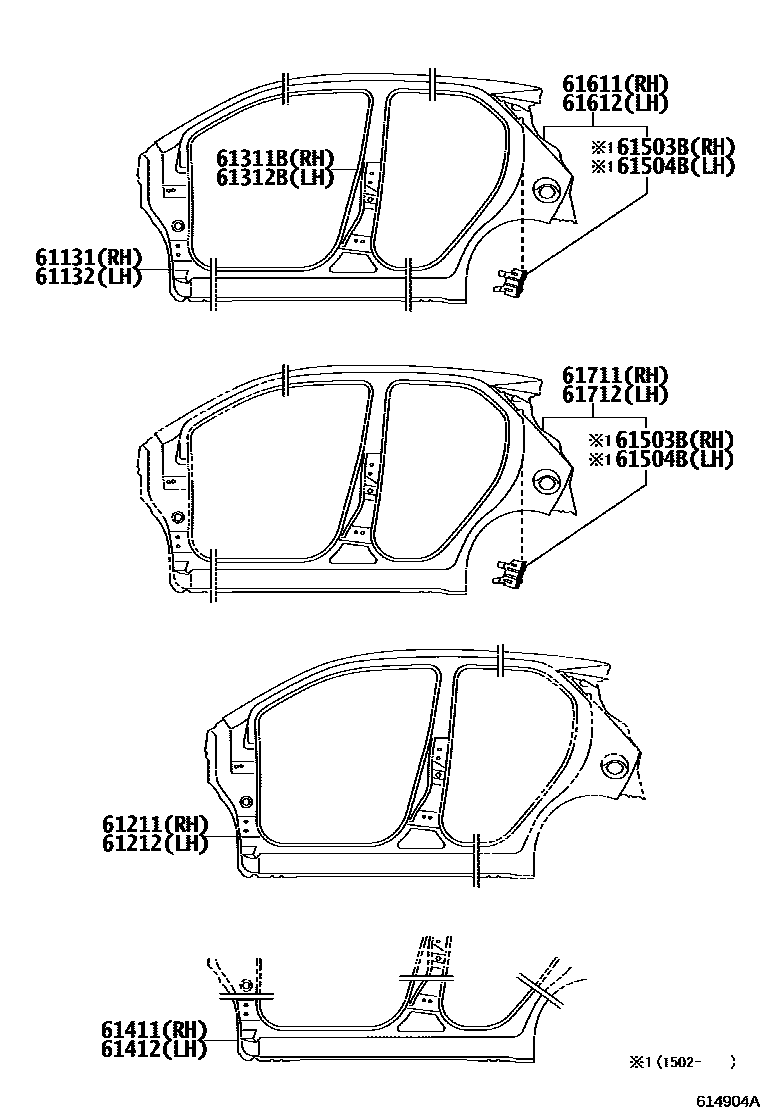

SIDE MEMBER

0001 1OUTSIDE PANEL 0002 1INSIDE PANEL,RH 0003 1INSIDE PANEL,LH 0004 1OUTSIDE PANEL 0005 1INSIDE PANEL,RH 0006 1INSIDE PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-0H020iKGB40,PAB40..5D201405-201805

main61131-0H070iKGB40,PAB40..3D201406-202104

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-0H020iKGB40..5D201405-201805

main61132-0H070iKGB40..3D201406-202104

61211RAIL, ROOF SIDE, OUTER RH

main61211-0H090iKGB40,PAB40..5D201405-201805

61212RAIL, ROOF SIDE, OUTER LH

main61212-0H090iKGB40..5D201405-201805

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0H010iKGB40,PAB40..5D201405-201805

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0H010iKGB40,PAB40..5D201405-201805

61411PANEL, ROCKER, OUTER RH

main61411-0H050iKGB40,PAB40..5D201405-201805

main61411-0H060iKGB40,PAB40..3D201406-202104

61412PANEL, ROCKER, OUTER LH

main61412-0H050iKGB40,PAB40..5D201405-201805

main61412-0H060iKGB40,PAB40..3D201406-202104

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-0H030iKGB40,PAB40..5D201405-201805

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-0H030iKGB40,PAB40..5D201405-201805

61611PANEL, QUARTER, RH

main61601-0H010iKGB40,PAB40..5D201502-201805

main61611-0H050iKGB40,PAB40..5D201405-201502

sub61601-0H010

61612PANEL, QUARTER, LH

main61602-0H010iKGB40,PAB40..5D201502-201805

main61612-0H050iKGB40,PAB40..5D201405-201502

sub61602-0H010

61711PANEL, ROOF SIDE, OUTER RH

main61501-0H010iKGB40,PAB40..5D201502-201805

main61511-0H010iKGB40,PAB40..5D201405-201502

sub61501-0H010

main61511-0H020iKGB40,PAB40..3D201406-202104

61712PANEL, ROOF SIDE, OUTER LH

main61502-0H010iKGB40..5D201502-201805

main61512-0H010iKGB40,PAB40..5D201405-201502

sub61502-0H010

main61512-0H020iKGB40..3D201406-202104

14 parts on this diagram · 6 diagrams in section
