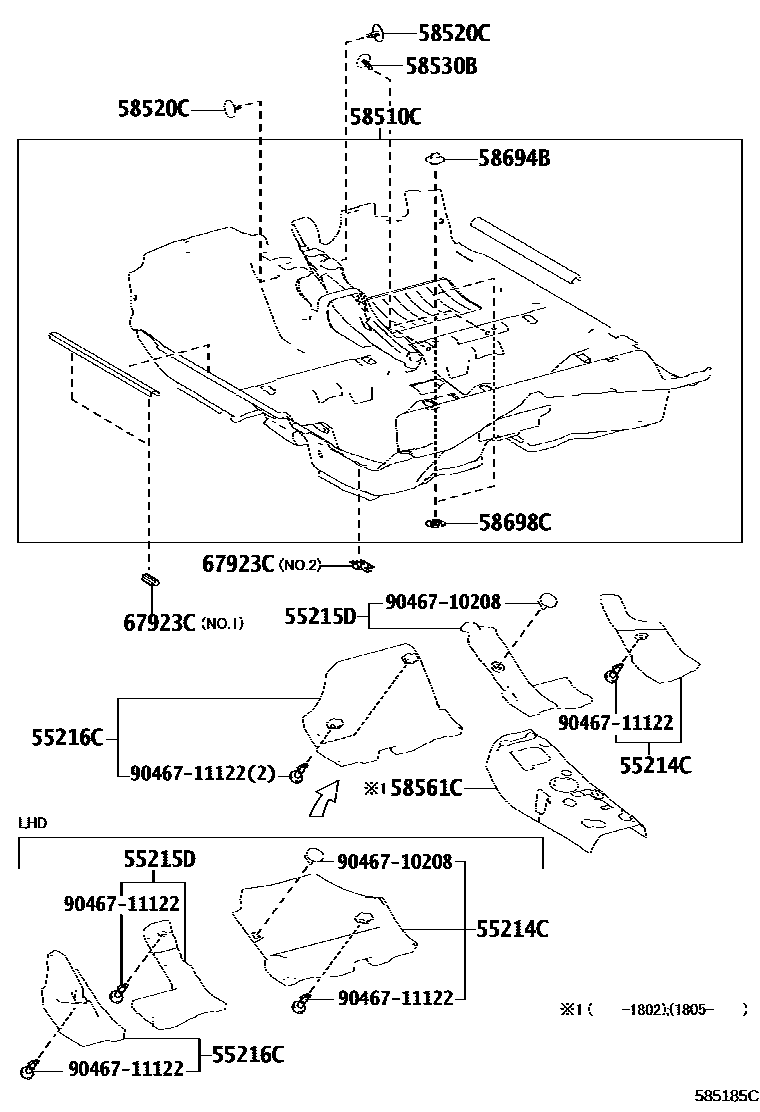

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
55216CPAD, DASH PANEL INSULATOR, NO.4
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
58530BCLIP(FOR FRONT FLOOR CARPET)
58561CSILENCER, FRONT FLOOR, NO.1
NV PACKAGE
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
67923CCLAMP, DOOR SCUFF PLATE, NO.1
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
9046710208
main90467-10208
9046711122
main90467-11122
12 parts on this diagram · 4 diagrams in section
