FLOOR INSULATOR

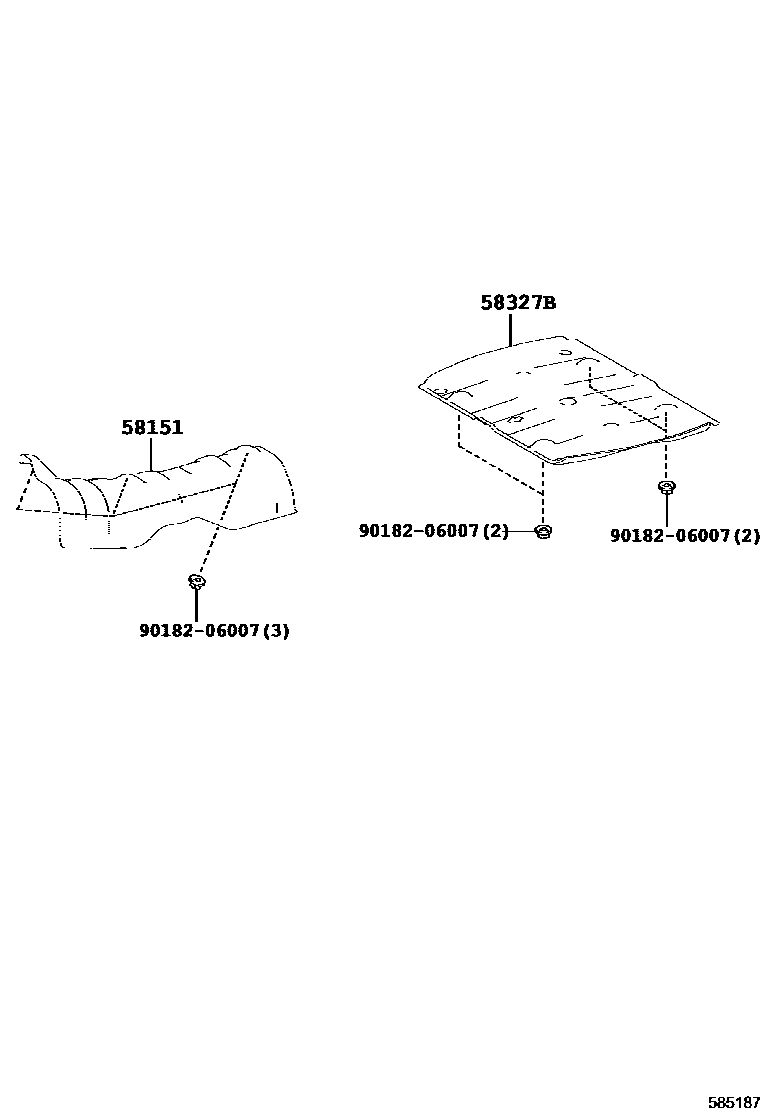

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0H010i201405-202104

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0H020i201405-202104

9018206007

main90182-06007

3 parts on this diagram · 1 diagram in section
