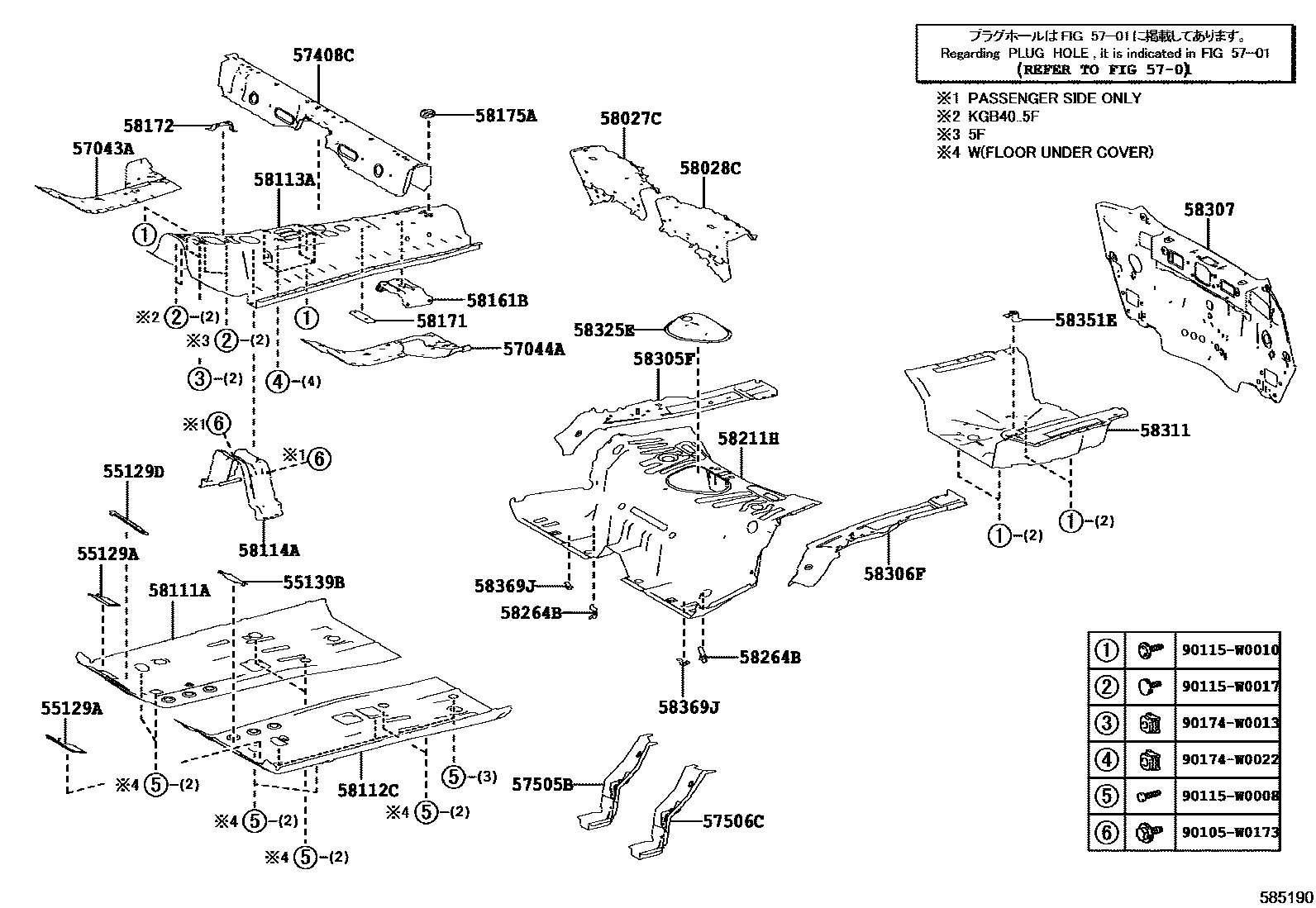

FLOOR PAN & LOWER BACK PANEL
55129ACOVER, FRONT FLOOR HOLE
RH
LH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH
57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH
58027CPANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58028CPANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58369JBRACKET, REAR FLOOR BRACE
90105W0173
main90105-W0173
90115W0008
main90115-W0008
90115W0010
main90115-W0010
90115W0017
main90115-W0017
90174W0013
main90174-W0013
90174W0022
main90174-W0022
34 parts on this diagram · 2 diagrams in section
