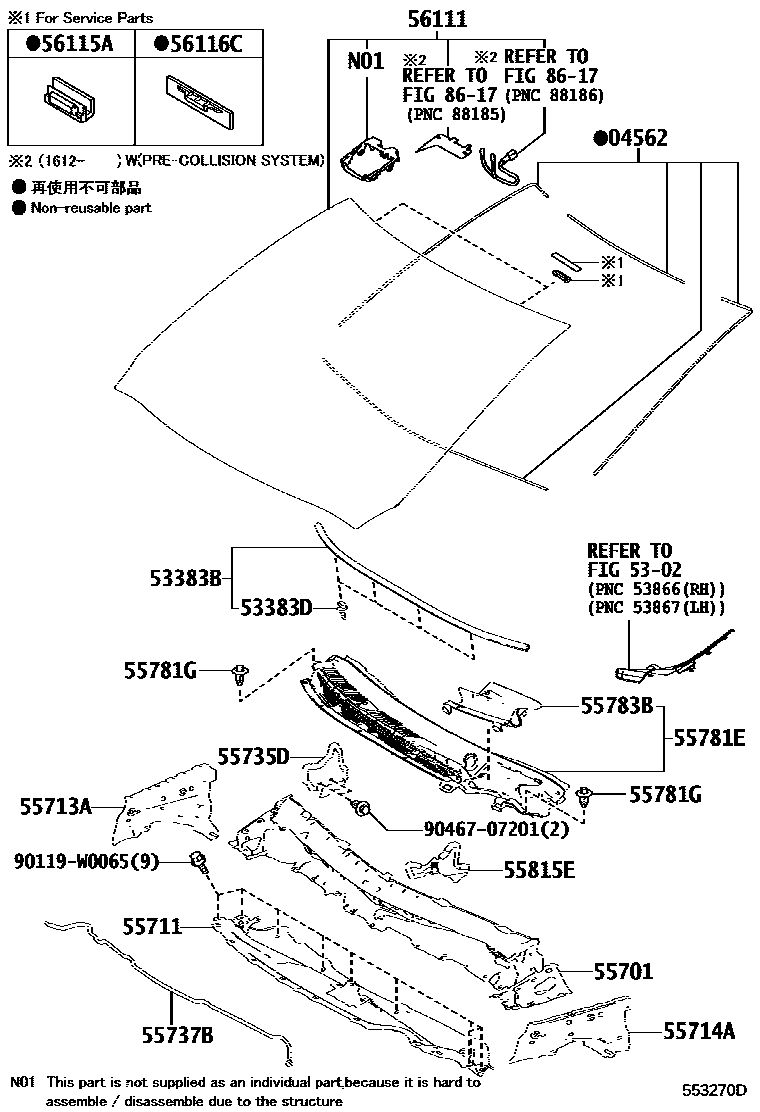

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-0H020iKGB40,PAB40201405-202104

5302

53383BSEAL, HOOD TO COWL TOP

main53383-0H030iKGB40,PAB40201405-202104

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iKGB40..3D201405-202104

55701PANEL SUB-ASSY, COWL

main55700-0H050iKGB40,PAB40..LHD201405-202104

main55700-0H060iKGB40,PAB40..RHD201405-202104

55711PANEL, COWL TOP, OUTER

main55701-0H050iKGB40,PAB40..LHD201405-202104

main55701-0H060iKGB40..RHD..3D201405-202104

55713APANEL, COWL TOP SIDE, RH

main55713-0H020iKGB40,PAB40201405-202104

55714APANEL, COWL TOP SIDE, LH

main55714-0H020iKGB40,PAB40201405-202104

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-0H020iKGB40,PAB40201405-201804

sub55735-0H021

main55735-0H021iKGB40..5D201805-202104

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0H040iKGB40..3D201405-202104

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0H100iKGB40,PAB40..RHD201405-201804

sub55708-0H101

main55708-0H101iKGB40..RHD201805-202008

sub55708-0H102

main55708-0H102iKGB40..RHD..5D202009-202104

main55708-0H110iKGB40,PAB40..LHD201405-201804

sub55708-0H111

main55708-0H111iKGB40..LHD201805-202008

sub55708-0H112

main55708-0H112iKGB40..LHD..5D202009-202104

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-W0008-C0iKGB40,PAB40201405-202104

BLACK

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-0H050iKGB40,PAB40..RHD201405-202104

main55783-0H060iKGB40..LHD..3D201405-202104

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-0H020iKGB40,PAB40201405-201804

main55815-0H021iKGB40..3D201805-202104

56111GLASS, WINDSHIELD

main56101-0H030iKGB40,PAB40201405-202104

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iKGB40,PAB40201405-202104

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iKGB40,PAB40201405-202104

8617

90119W0065

main90119-W0065

9046707201

main90467-07201

20 parts on this diagram · 2 diagrams in section
