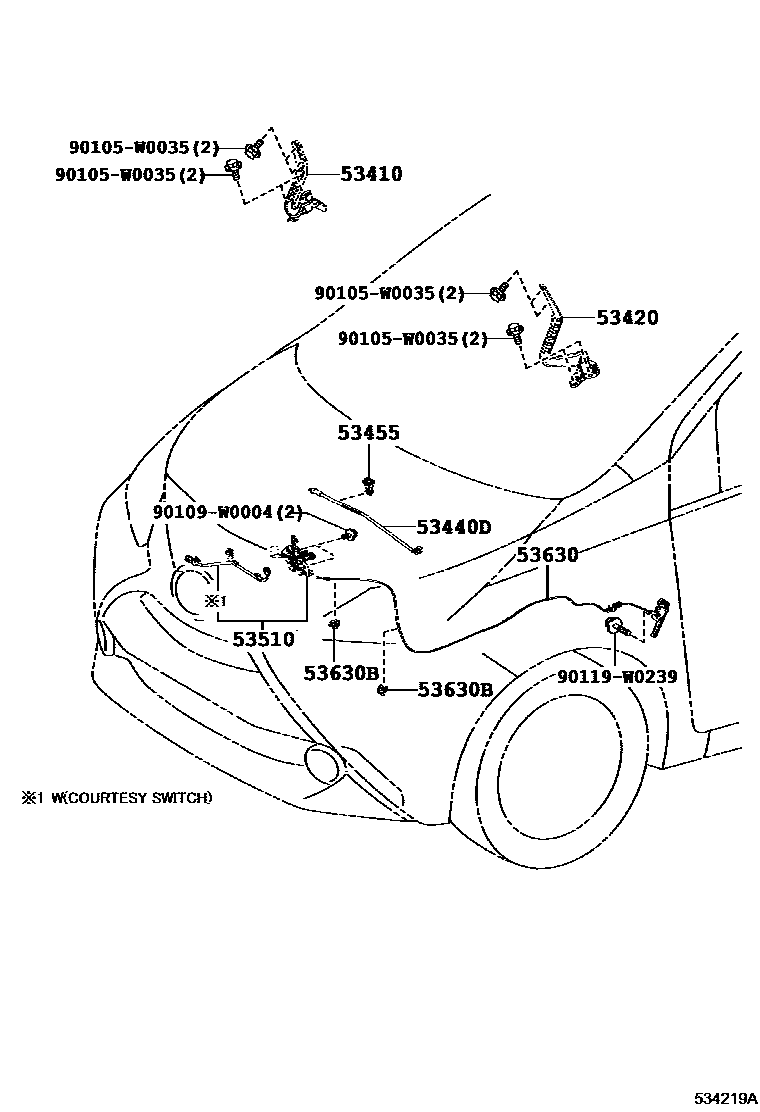

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0H060iKGB40,PAB40201405-202104

53420HINGE ASSY, HOOD, LH

main53420-0H060iKGB40,PAB40201405-202104

53440DSUPPORT ASSY, HOOD

main53440-0H030iKGB40,PAB40201405-202104

53455CLAMP, HOOD SUPPORT ROD

main53455-0H030iKGB40,PAB40201405-202104

53510LOCK ASSY, HOOD

main53510-0H040iKGB40,PAB40201405-202104

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0H020iKGB40,PAB40201405-202104

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iKGB40,PAB40201405-202104

90105W0035

main90105-W0035

90109W0004

main90109-W0004

90119W0239

main90119-W0239

10 parts on this diagram · 1 diagram in section
