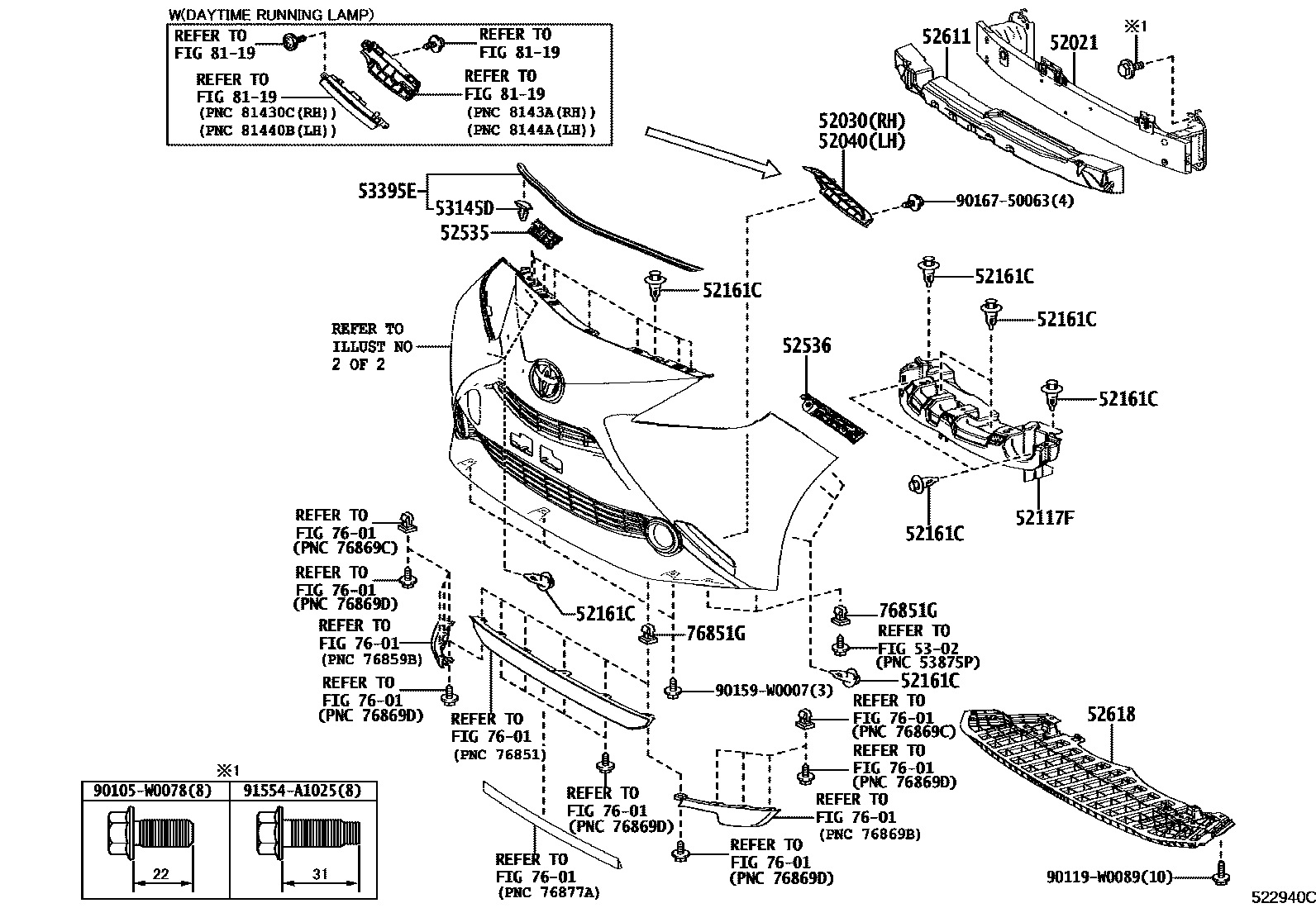

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0H031iKGB40,PAB40201405-202104

52030COVER ASSY, FRONT BUMPER HOLE, RH

main81483-0H010iKGB40..5D..5F;KGB40..LHD..3D..5F201405-201805

VSC-WITHOUT&FRONT BUMPER-EXTENSION=NO PAINTED

52040COVER ASSY, FRONT BUMPER HOLE, LH

main81484-0H010iKGB40..5D..5F;KGB40..LHD..3D..5F201405-201805

VSC-WITHOUT&FRONT BUMPER-EXTENSION=NO PAINTED

52117FSUPPORT, FRONT BUMPER, UPPER

main52117-0H010iKGB40,PAB40201405-201805

FRONT BUMPER-EXTENSION=NO PAINTED(W/DOP COLOR PAINT)&FRONT FOG LAMP-WITH

main52117-0H040iKGB40..3D201805-202104

52161CPIECE, FRONT BUMPER

main52161-02030iKGB40,PAB40201405-201805

FRONT BUMPER-EXTENSION=NO PAINTED(W/DOP COLOR PAINT)&FRONT FOG LAMP-WITH

main52161-02030iKGB40..3D201805-202104

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0H040iKGB40..5D201805-202104

main52535-0H040iKGB40,PAB40201405-201805

FRONT BUMPER-EXTENSION=NO PAINTED(W/DOP COLOR PAINT)&FRONT FOG LAMP-WITH

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0H040iKGB40,PAB40201405-201805

FRONT BUMPER-EXTENSION=NO PAINTED(W/DOP COLOR PAINT)&FRONT FOG LAMP-WITH

main52536-0H040iKGB40..3D201805-202104

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0H020iKGB40..3D201405-202104

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0H030iKGB40..3D201405-202104

5302

53145DCLIP, RADIATOR GRILLE

main53145-60030iKGB40,PAB40201405-201805

FRONT BUMPER-EXTENSION=NO PAINTED(W/DOP COLOR PAINT)&FRONT FOG LAMP-WITH

main53145-60030iKGB40..3D201805-202104

53395ESEAL, HOOD TO FRONT END PANEL

main53395-0H050iKGB40,PAB40201405-201805

FRONT BUMPER-EXTENSION=NO PAINTED(W/DOP COLOR PAINT)&FRONT FOG LAMP-WITH

main53395-0H050iKGB40..3D201805-202104

7601

76851GGROMMET, SCREW, NO.1

main90189-06237iKGB40,PAB40201405-202104

8119

90105W0078

main90105-W0078

90119W0089

main90119-W0089

90159W0007

main90159-W0007

9016750063

main90167-50063

91554A1025

main91554-A1025

20 parts on this diagram · 4 diagrams in section
