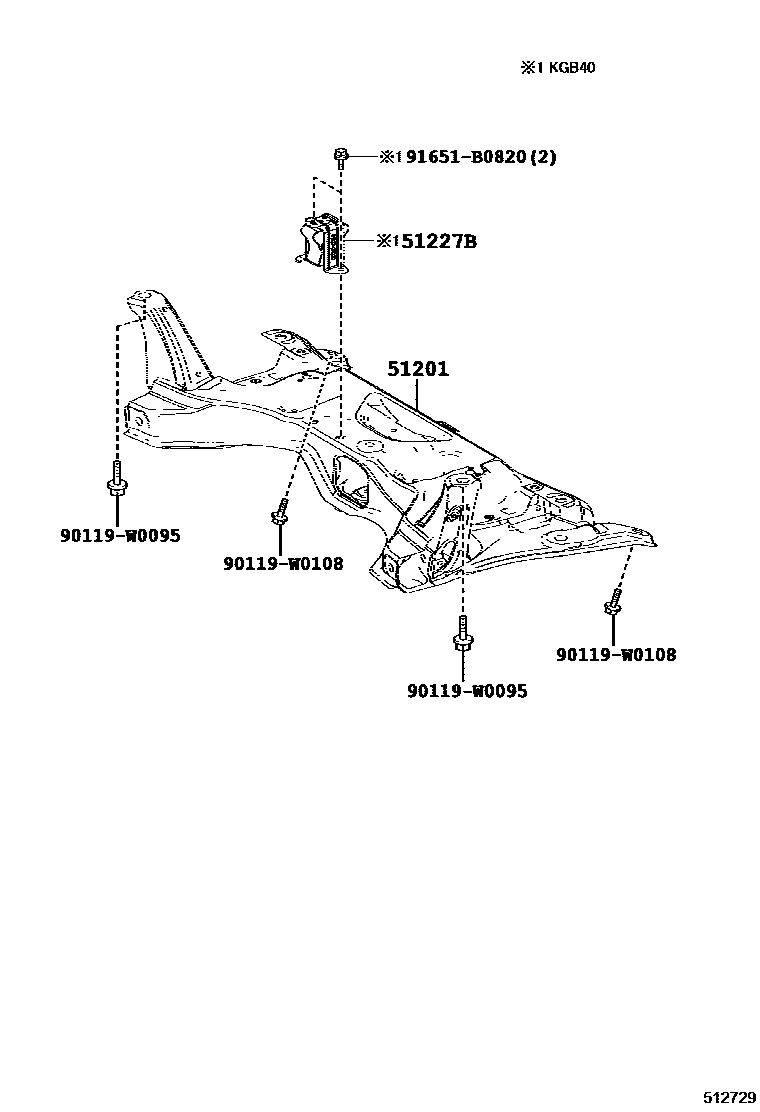

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0H020iKGB40,PAB40201405-202104

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-0H020iKGB40201405-202104

90119W0095

main90119-W0095

90119W0108

main90119-W0108

91651B0820

main91651-B0820

5 parts on this diagram · 1 diagram in section
