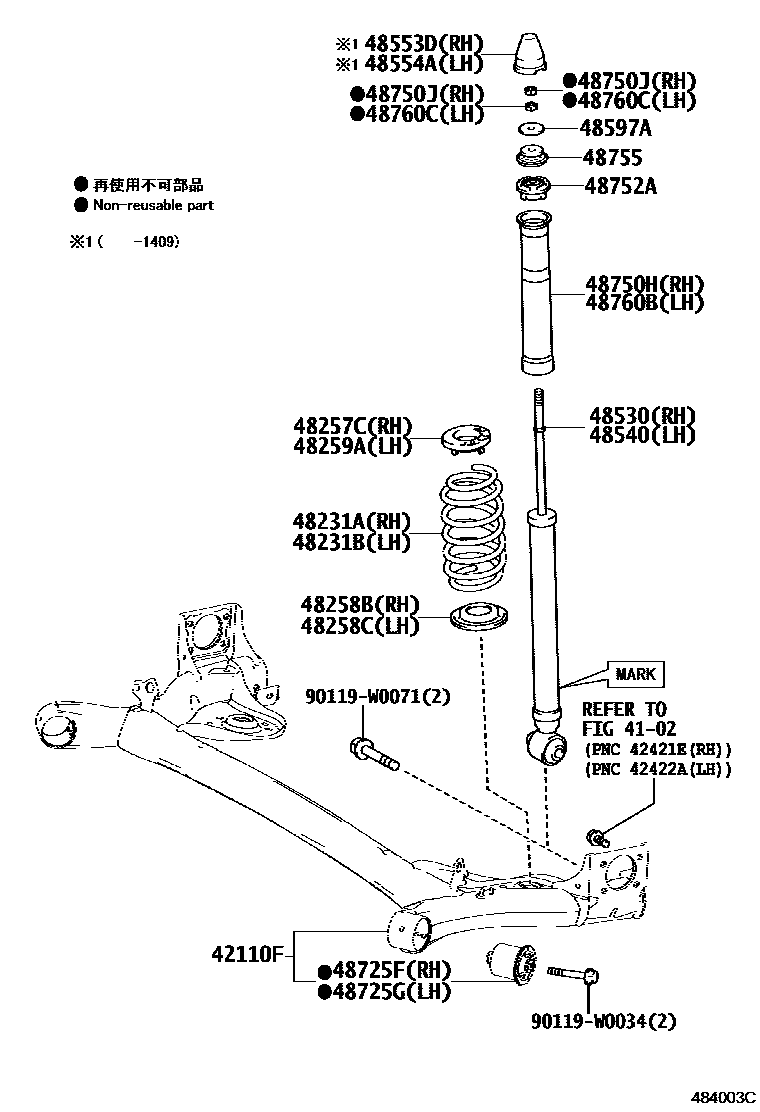

REAR SPRING & SHOCK ABSORBER

4102

42110FBEAM ASSY, REAR AXLE

main42110-0H020iKGB40..5D201805

48231ASPRING, COIL, REAR RH

main48231-0H030iKGB40..3D201805-202105

main48231-0H040iKGB40,PAB40..LV1201405-201805

CANVAS ROOF-WITH(BLACK)

main48231-0H050iKGB40..LHD..5F201405-201805

ROUGH ROAD AREA SPEC(W(HEIGHT UP))

48231BSPRING, COIL, REAR LH

main48231-0H030iKGB40,PAB40201405-201805

main48231-0H040iKGB40,PAB40..LV1201405-201805

CANVAS ROOF-WITH(BLACK)

main48231-0H050iKGB40..LHD..3D..5F201805-202105

ROUGH ROAD AREA SPEC(WITH(HEIGHT UP))

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0H010iKGB40,PAB40201405-201805

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0H010iKGB40,PAB40201405-201805

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0H010iKGB40,PAB40201405-201805

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0H010iKGB40,PAB40201405-201805

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0H040iKGB40,PAB40201405-201508

MARK 48530-0H040

main48530-0H041iKGB40,PAB40201509-201805

MARK 48530-0H041

main48530-0H070iKGB40..5D201805

MARK 48530-0H070

main48530-0H050iKGB40,PAB40..LV1201405-201508

MARK 48530-0H050,CANVAS ROOF-WITH(RED)

main48530-0H051iKGB40,PAB40..LV1201509-201805

MARK 48530-0H051,CANVAS ROOF-WITH(BLACK)

main48530-0H060iKGB40..LHD..5F201405-201508

MARK 48530-0H060,ROUGH ROAD AREA SPEC(W(HEIGHT UP))

main48530-0H061iKGB40..LHD..3D..5F201805-202105

MARK 48530-0H061,ROUGH ROAD AREA SPEC(WITH(HEIGHT UP))

main48530-0H080iKGB40..LV1201805-202006

MARK 48530-0H080,CANVAS ROOF-WITH(ORANGE)

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0H040iKGB40,PAB40201405-201508

MARK 48530-0H040

main48530-0H041iKGB40,PAB40201509-201805

MARK 48530-0H041

main48530-0H070iKGB40..3D201805-202105

MARK 48530-0H070

main48530-0H050iKGB40,PAB40..LV1201405-201508

MARK 48530-0H050,CANVAS ROOF-WITH(RED)

main48530-0H051iKGB40,PAB40..LV1201509-201805

MARK 48530-0H051,CANVAS ROOF-WITH(BLACK)

main48530-0H060iKGB40..LHD..5F201405-201508

MARK 48530-0H060,ROUGH ROAD AREA SPEC(W(HEIGHT UP))

main48530-0H061iKGB40..LHD..5D..5F201805

MARK 48530-0H061,ROUGH ROAD AREA SPEC(WITH(HEIGHT UP))

main48530-0H080iKGB40..3D..LV1201805-202105

MARK 48530-0H080,CANVAS ROOF-WITH(BLACK)

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-52010iKGB40,PAB40201405-201409

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-52010iKGB40,PAB40201405-201409

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320×2iKGB40,PAB40201405-201805

48725FBUSH, REAR AXLE CARRIER, RH

main48725-0H010iKGB40,PAB40201405-201805

48725GBUSH, REAR AXLE CARRIER, LH

main48725-0H010iKGB40,PAB40201405-201805

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0H010iKGB40,PAB40201405-201805

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61000×2iKGB40,PAB40201405-201805

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-0H010×2iKGB40,PAB40201405-201805

48755SUPPORT, REAR SUSPENSION

main48755-0H010×2iKGB40,PAB40201405-201805

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-0H010iKGB40,PAB40201405-201805

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61000×2iKGB40,PAB40201405-201805

90119W0034

main90119-W0034

90119W0071

main90119-W0071

23 parts on this diagram · 1 diagram in section
