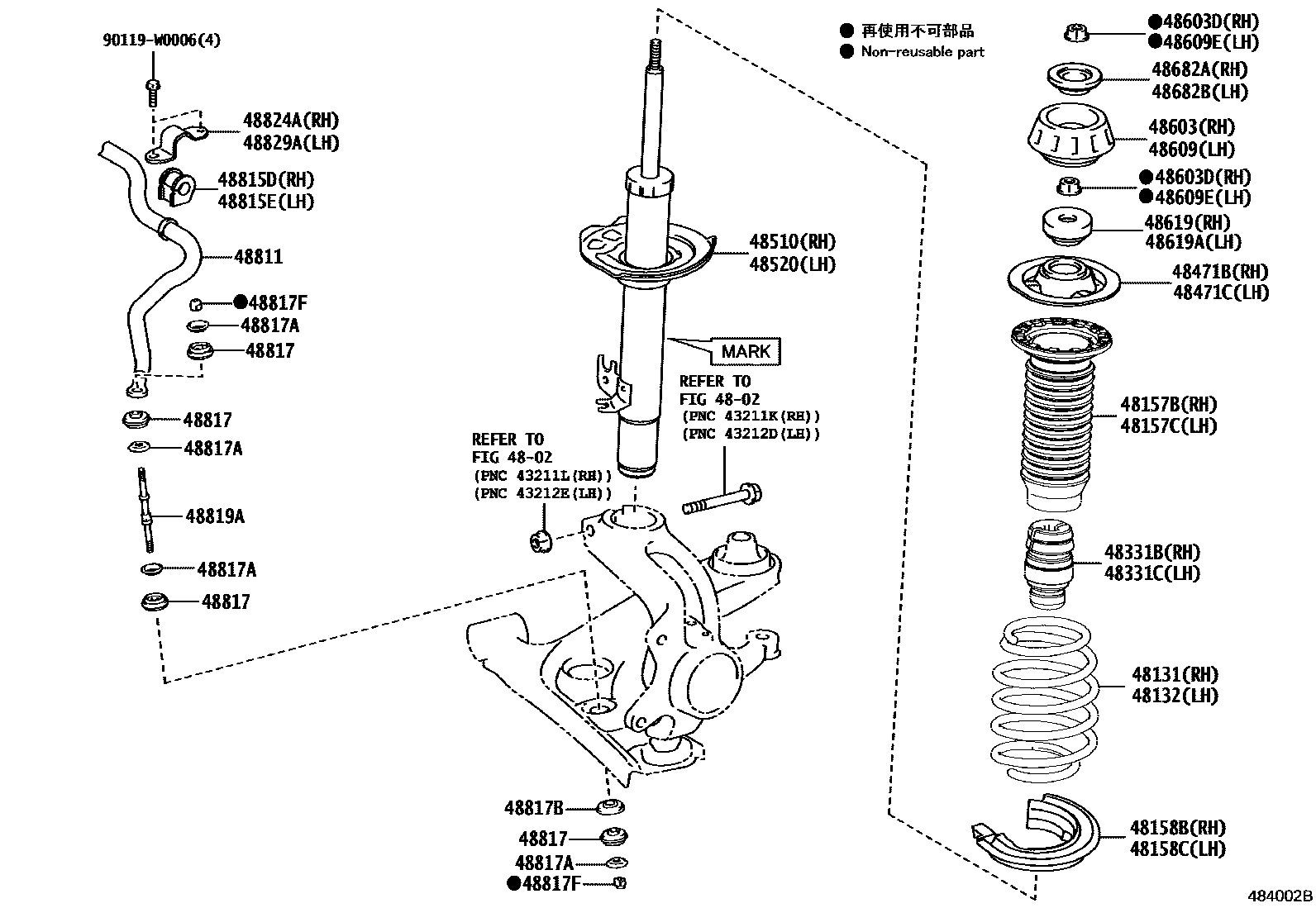

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
CANVAS ROOF-WITH(BLACK)
ROUGH ROAD AREA SPEC(WITH(HEIGHT UP))
48132SPRING, FRONT COIL, LH
CANVAS ROOF-WITH(BLACK)
ROUGH ROAD AREA SPEC(WITH(HEIGHT UP))
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0H040
MARK 48510-0H070
MARK 48510-0H050,CANVAS ROOF-WITH(BLACK)
MARK 48510-0H060,ROUGH ROAD AREA SPEC(W(HEIGHT UP))
MARK 48510-0H061,ROUGH ROAD AREA SPEC(WITH(HEIGHT UP))
MARK 48510-0H080,CANVAS ROOF-WITH(JOKEY RED)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-0H040
MARK 48520-0H070
MARK 48520-0H050,CANVAS ROOF-WITH(BLACK)
MARK 48520-0H060,ROUGH ROAD AREA SPEC(W(HEIGHT UP))
MARK 48520-0H061,ROUGH ROAD AREA SPEC(WITH(HEIGHT UP))
MARK 48520-0H080,CANVAS ROOF-WITH(RED/PURPLE)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817FNUT(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
90119W0006
main90119-W0006
32 parts on this diagram · 1 diagram in section
