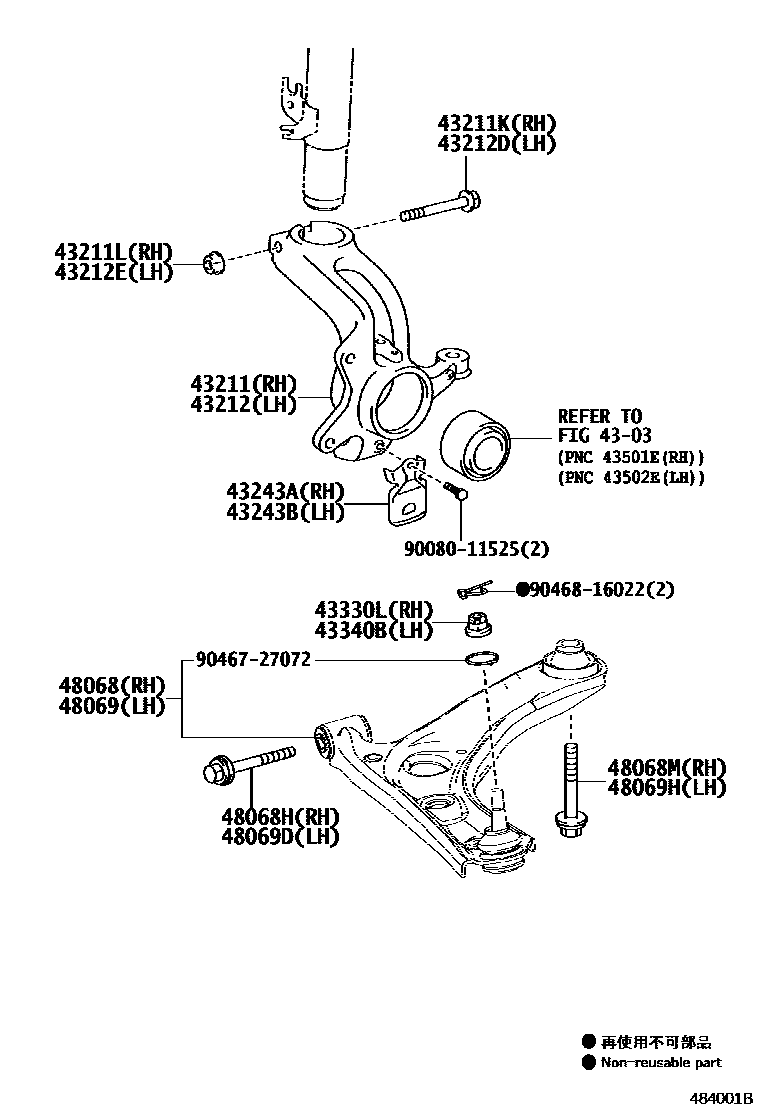

FRONT AXLE ARM & STEERING KNUCKLE

4303

43211KNUCKLE, STEERING, RH

main43211-0H020iKGB40,PAB40201405-202105

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-W0091iKGB40,PAB40201405-202105

OD=12

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-W0051iKGB40,PAB40201405-202105

43212KNUCKLE, STEERING, LH

main43212-0H020iKGB40,PAB40201405-202105

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-W0091iKGB40,PAB40201405-202105

OD=12

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-W0051iKGB40,PAB40201405-202105

43243AINSULATOR, STEERING KNUCKLE HEAT, FR RH

main43243-0H010iKGB40,PAB40201405-202105

43243BINSULATOR, STEERING KNUCKLE HEAT, FR LH

main43243-0H010iKGB40,PAB40201405-202105

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iKGB40,PAB40201405-202105

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iKGB40,PAB40201405-202105

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0H020iKGB40,PAB40201405-201504

sub48068-0H021

main48068-0H021iKGB40,PAB40201505-202105

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-W0265iKGB40,PAB40201405-202105

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-W0110iKGB40,PAB40201405-201409

sub90119-W0264

main90119-W0264iKGB40,PAB40201409-202105

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0H020iKGB40,PAB40201405-201504

sub48069-0H021

main48069-0H021iKGB40,PAB40201505-202105

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-W0265iKGB40,PAB40201405-202105

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-W0110iKGB40,PAB40201405-201409

sub90119-W0264

main90119-W0264iKGB40,PAB40201409-202105

9008011525

main90080-11525

9046727072

main90467-27072

9046816022

main90468-16022

20 parts on this diagram · 1 diagram in section
