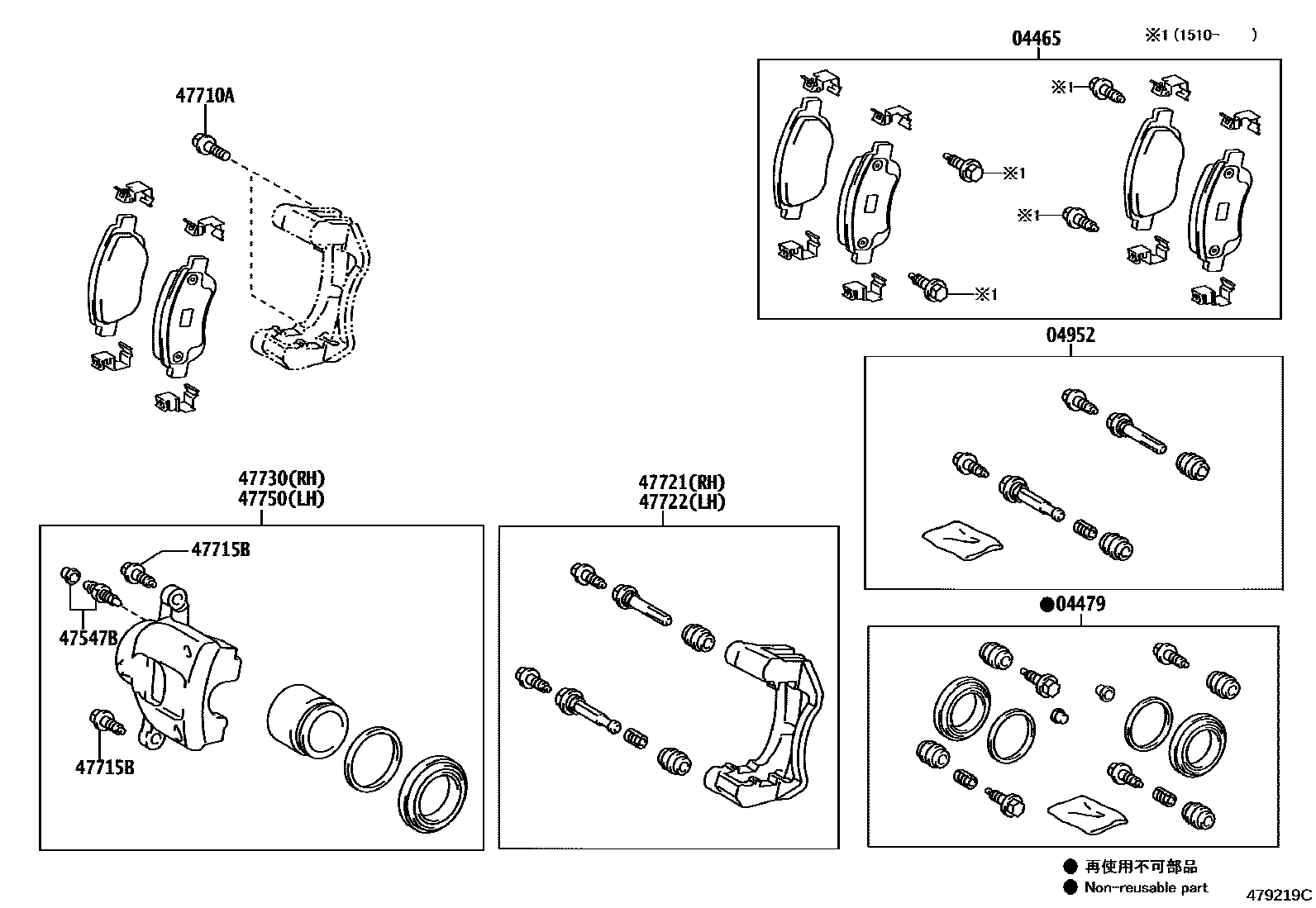

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0H020iKGB40,PAB40201405-201502

MARK JURID 682

sub04465-0H030

main04465-0H030iKGB40,PAB40201502-201510

MARK GALFER GA5019

sub04465-0H031

main04465-0H031iKGB40,PAB40201510-202104

MARK GALFER GA5019

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0H020iKGB40,PAB40201405-201502

*428

sub04478-0H021

main04478-0H021iKGB40,PAB40201502-201805

*429

main04478-0H021iKGB40..3D201805-202104

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-0H040iKGB40,PAB40201405-202104

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-09040iKGB40,PAB40201405-202104

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121iKGB40,PAB40201405-202104

*12-1.25PX29.5-23

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-05060iKGB40,PAB40201405-202104

sub47715-28060

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09210iKGB40,PAB40201405-201502

*428

sub47721-09211

main47721-09211iKGB40,PAB40201502-201805

*429

main47721-09211iKGB40..3D201805-202104

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09070iKGB40,PAB40201405-201502

*428

sub47722-09071

main47722-09071iKGB40,PAB40201502-201805

*429

main47722-09071iKGB40..3D201805-202104

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0H010iKGB40,PAB40201405-202104

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0H010iKGB40,PAB40201405-202104

10 parts on this diagram · 1 diagram in section
