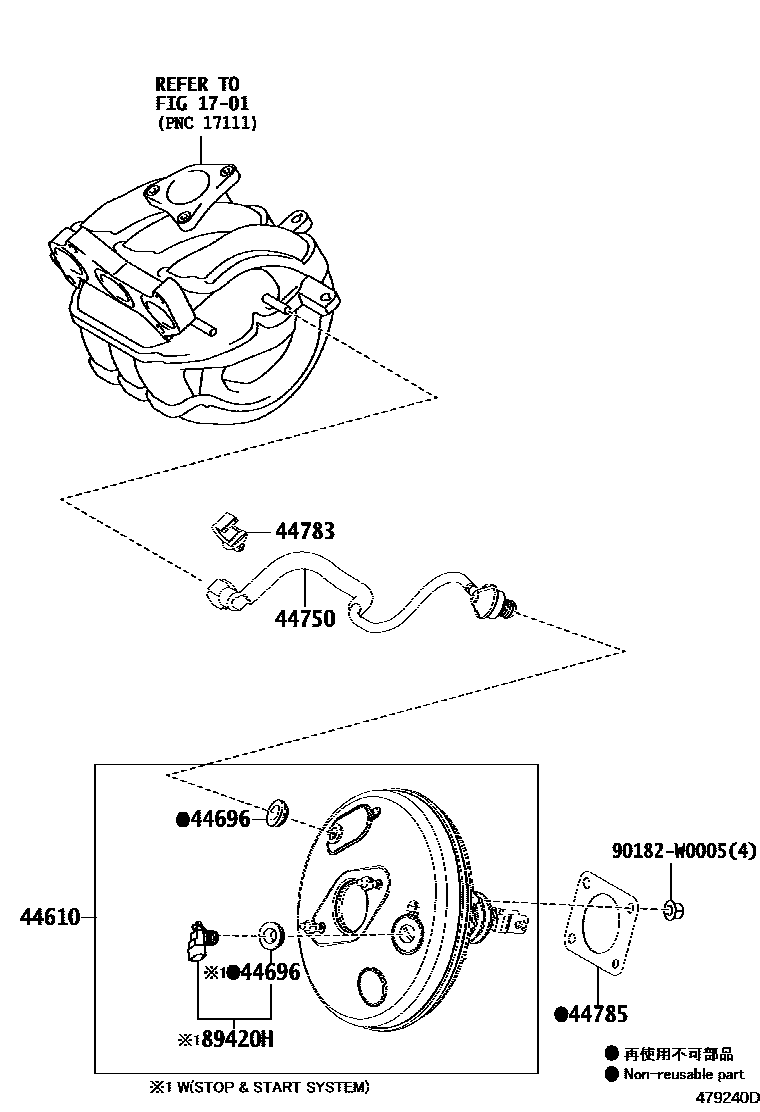

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701

44610BOOSTER ASSY, BRAKE

main44610-09B40iPAB40..LHD201405-201805

WITH(STOP & START SYSTEM)

main44610-09B50iKGB40..LHD..3D201405-202104

main44610-09B70iPAB40..RHD201405-201805

WITH(STOP & START SYSTEM)

main44610-09B80iKGB40..RHD..5D201405-202104

44696GROMMET, CHECK VALVE

main44692-0H010iPAB40201405-202104

WITH(STOP & START SYSTEM)

main44692-0H010iKGB40..5D201805

ENGINE-1KR, WITH(STOP & START SYSTEM)

44750HOSE ASSY, VACUUM

main44750-0H050iKGB40..LHD201405-201805

main44750-0H060iKGB40..RHD201405-201805

main44750-0H070iPAB40..LHD201405-201805

main44750-0H080iPAB40..RHD201405-201805

main44750-0H090iKGB40..LHD..3D201805-202104

main44750-0H100iKGB40..RHD..3D201805-202104

44783CLAMP, VACUUM HOSE

main44783-70010iKGB40..RHD201405-202104

main44783-YV010iPAB40201405-201805

44785GASKET, BRAKE BOOSTER

main44785-16020iKGB40,PAB40201405-202104

89420HSENSOR ASSY, VACUUM

main89421-09010iKGB40..5F201405-201805

WITH(STOP & START SYSTEM)

90182W0005

main90182-W0005

8 parts on this diagram · 4 diagrams in section
