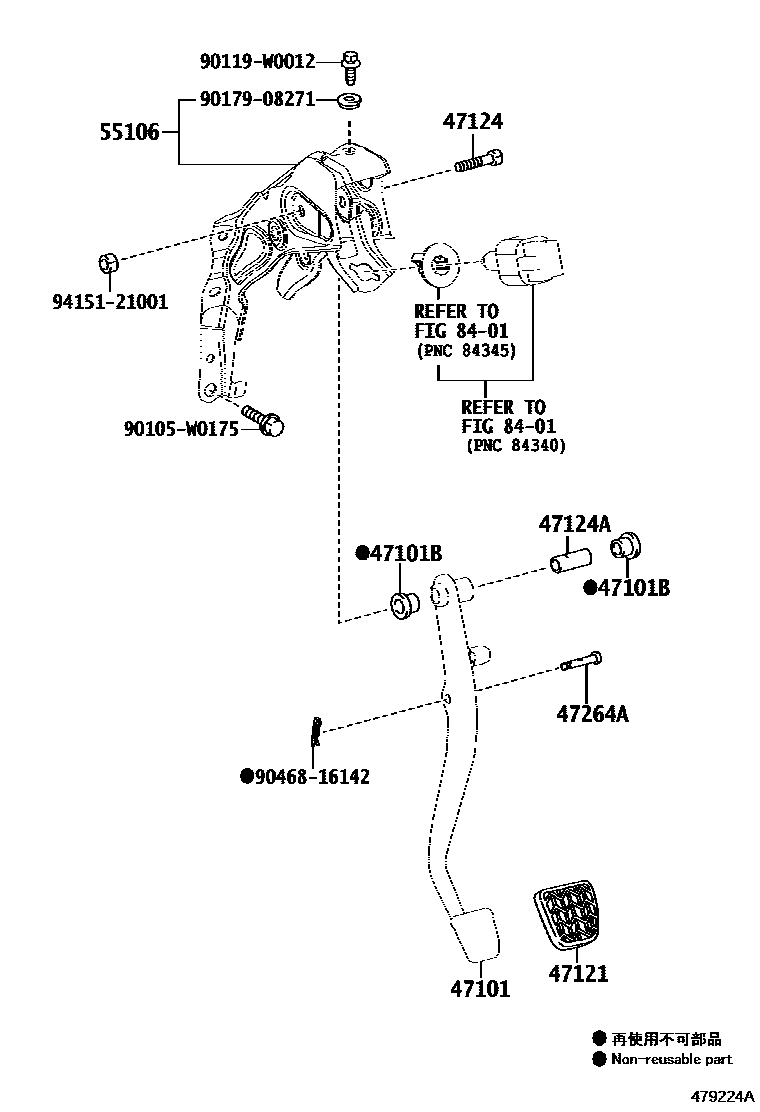

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-0H030iKGB40,PAB40..LHD201405-202105

main47101-0H040iKGB40,PAB40..RHD201405-202105

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKGB40,PAB40201405-202105

47121PAD, BRAKE PEDAL

main31321-52010iKGB40,PAB40201405-202105

47124SHAFT, BRAKE PEDAL

main90105-10444iKGB40..RHD..5D;KGB40..LHD..5D..5FS201405-202105

main90105-10554iKGB40..LHD..3D..5F201405-202105

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iKGB40,PAB40201405-202105

47264APIN(FOR PUSH ROD)

main90249-08051iKGB40,PAB40201405-202105

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0H060iKGB40,PAB40..LHD..5F201405-202105

main55106-0H070iKGB40..LHD..5D..5FS201405-202105

main55106-0H080iKGB40..RHD..3D201405-202105

8401

90105W0175

main90105-W0175

90119W0012

main90119-W0012

9017908271

main90179-08271

9046816142

main90468-16142

9415121001

main94151-21001

13 parts on this diagram · 3 diagrams in section
