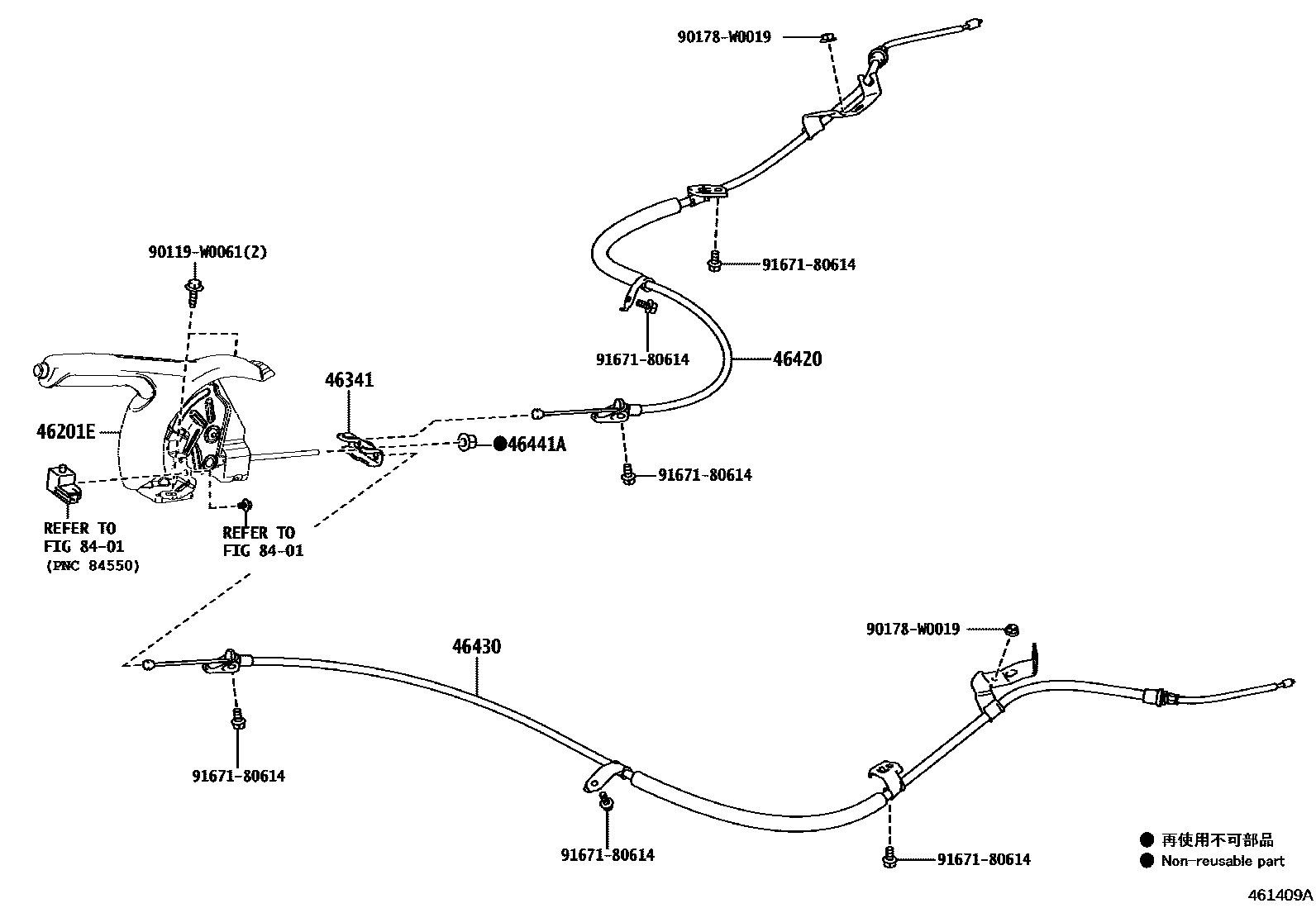

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0H020-B0iKGB40,PAB40..LV1201405-201805

PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#

main46201-0H020-B0iKGB40,PAB40..LV1201405-202104

PSA MISTRAL HZD,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-0H010iKGB40,PAB40201405-202104

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0H021iKGB40,PAB40201405-202104

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0H021iKGB40,PAB40201405-202104

46441ANUT, WIRE ADJUSTING, NO.2

main46441-0H010iKGB40,PAB40201405-202104

8401

90119W0061

main90119-W0061

90178W0019

main90178-W0019

9167180614

main91671-80614

9 parts on this diagram · 1 diagram in section
