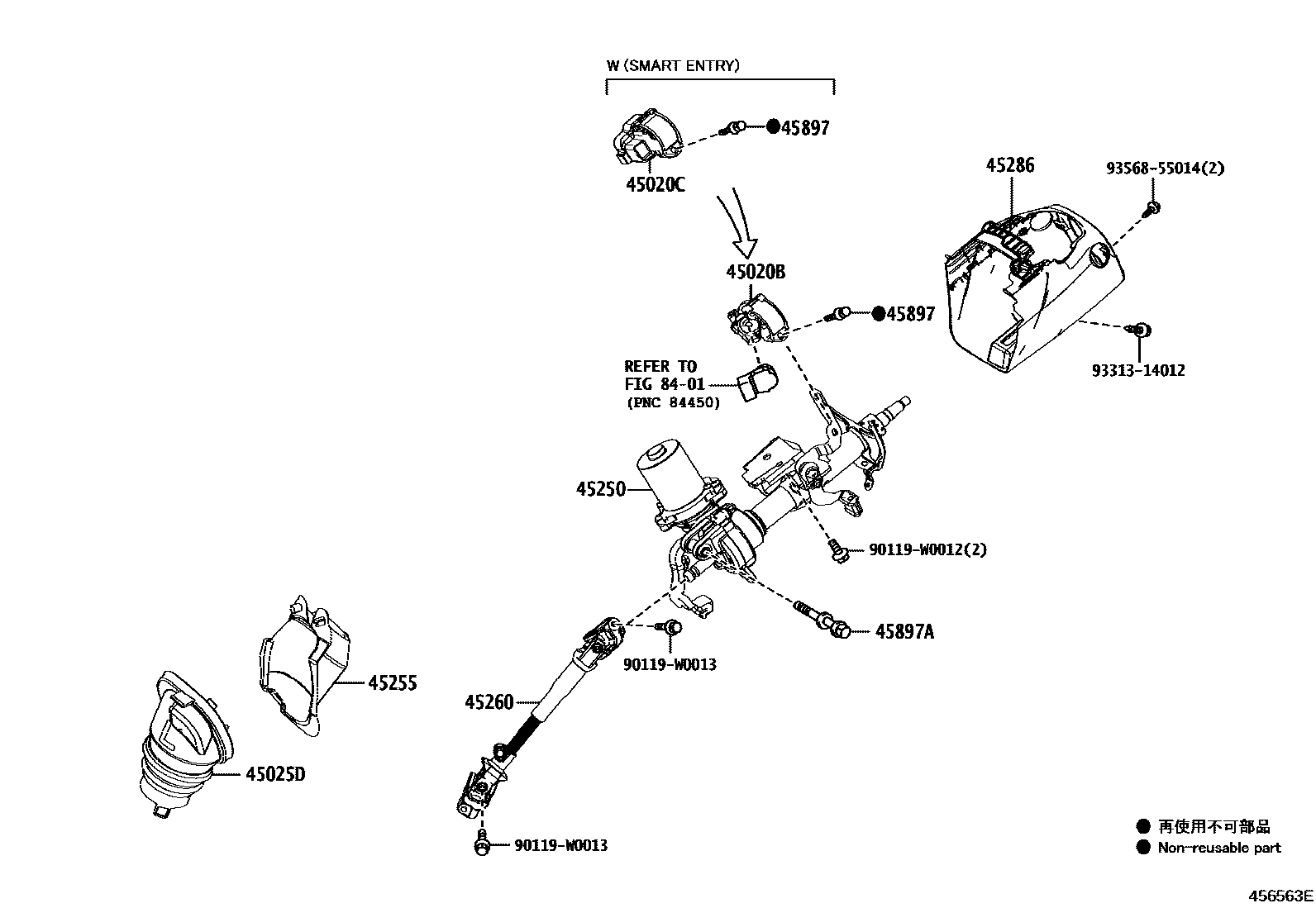

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0H020iKGB40,PAB40..LHD201405-202105

main45280-0H030iKGB40..RHD..3D201405-202105

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0H030iKGB40..LHD..3D201405-202105

main45025-0H040iKGB40,PAB40..RHD201405-202105

45250COLUMN ASSY, STEERING

main45250-0H110iKGB40,PAB40..LHD201405-201501

STEERING-MANUAL STEERING

sub45250-0H111

main45250-0H111iKGB40..LHD..5D201805-202105

main45250-0H111iKGB40,PAB40..LHD201502-201805

STEERING-MANUAL STEERING

main45250-0H120iKGB40,PAB40..RHD201405-201501

sub45250-0H121

main45250-0H121iKGB40..RHD..5D201502-202105

45255PLATE, STEERING COLUMN HOLE COVER

main45255-0H010iKGB40..LHD..5D201405-202105

main45255-0H020iKGB40..RHD..5D201405-202105

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0H030iKGB40..3D201405-202105

45286COVER, STEERING COLUMN

main45023-0H090-B0iKGB40,PAB40..LV1201405-201805

PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#

main45023-0H090-B0iKGB40,PAB40..LV1201405-202105

PSA MISTRAL HZD,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iKGB40,PAB40..LHD201405-202105

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main45897-12050iKGB40..RHD..3D201405-202105

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iKGB40,PAB40201405-201805

main45897-42010iKGB40..5D201805-202105

(J)

main90119-W0359iKGB40..5D201805-202105

(L)

8401

90119W0012

main90119-W0012

90119W0013

main90119-W0013

9331314012

main93313-14012

9356855014

main93568-55014

14 parts on this diagram · 2 diagrams in section
