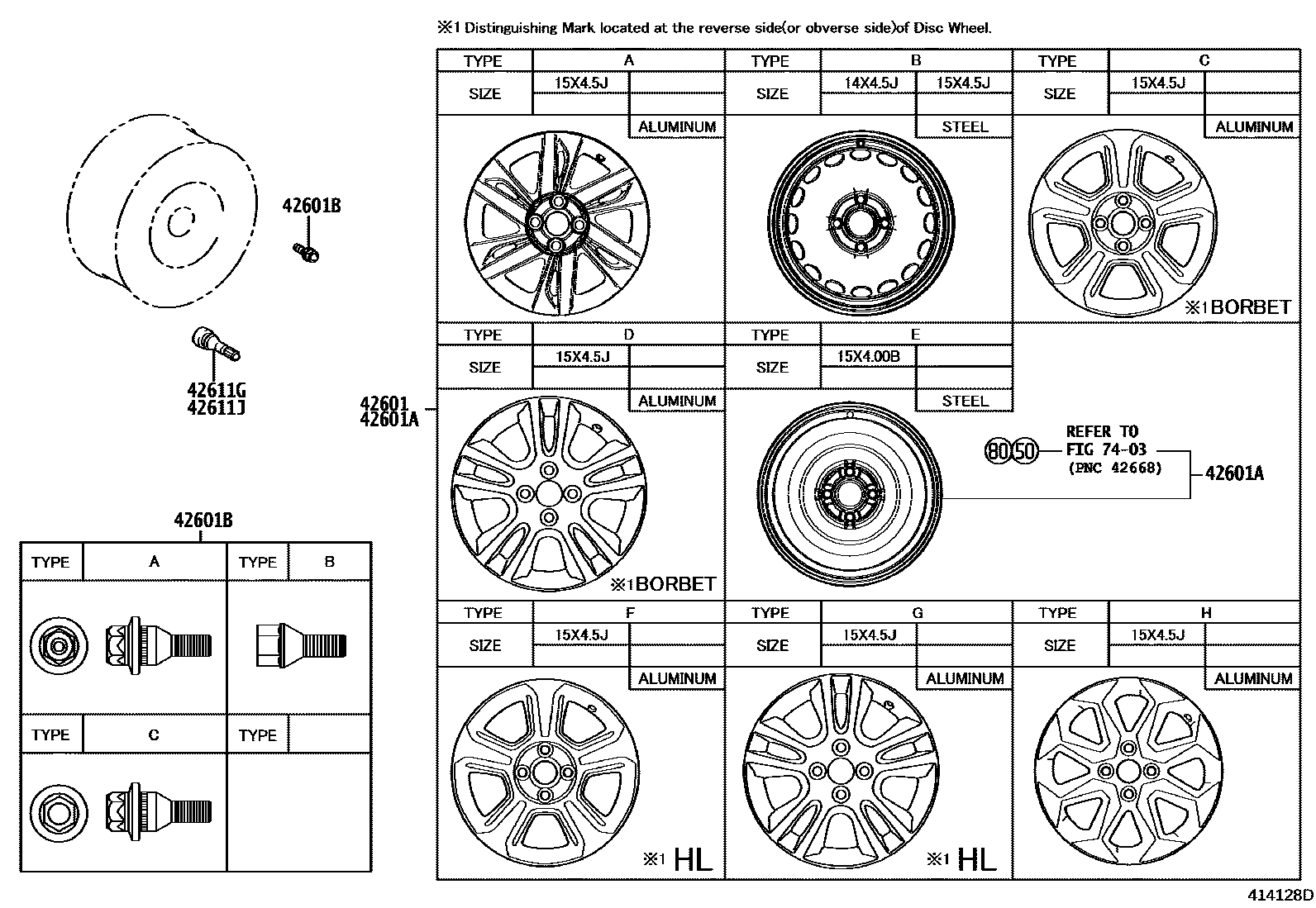

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-0H020×4supersedes 42611-0H030i201805-202105

14X4.5J, #,TYPE B:REFER ILLUST.

main42611-0H040×4i201405-201805

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMINUM, SILVER,TYPE A:REFER ILLUST.

main42611-0H050×4i201805

15X4.5J, #,TIRE & DISC WHEEL-165/60R15, ALUMINUM,TYPE H:REFER ILLUST.

main42611-YY450×4i201405-201605

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMI, MACHINING TYPE,TYPE C:REFER ILLUST.

main42611-YY451×4i201606-201805

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMI, MACHINING TYPE,TYPE C:REFER ILLUST.

main42611-YY460×4i201405-201605

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMI, BLACK PAINTED,TYPE D:REFER ILLUST.

main42611-YY461×4i201606-201805

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMI, BLACK PAINTED,TYPE D:REFER ILLUST.

main42611-YY470×4i201412-201605

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMI, MACHINING TYPE,TYPE D:REFER ILLUST.

main42611-YY471×4i201606-201705

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMI, MACHINING TYPE,TYPE D:REFER ILLUST.

main42611-YY610×4i201508-201805

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMI, MACHINING TYPE,TYPE F:REFER ILLUST.

main42611-YY620×4i201508-201805

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMI, BLACK PAINTED,TYPE G:REFER ILLUST.

main42611-YY690×4i201705-201805

15X4.5J, #,TIRE & DISC WHEEL-165/60R15 ALUMINUM 10-SPOKE TYPE,TYPE D:REFER ILLUST.

main42611-YY750×4i201805-202006

15X4.5J, #,TIRE & DISC WHEEL-165/60R15,ALUMINUM(BLACK,ACCESSORY),TYPE J:REFER ILLUST.

main42611-YY751×4i202006-202105

15X4.5J, #,TIRE & DISC WHEEL-165/60R15,ALUMINUM(BLACK,ACCESSORY),TYPE J:REFER ILLUST.

main42611-YY760×4i201805-202006

15X4.5J, #,TIRE & DISC WHEEL-165/60R15,ALUMINUM(BLACK,ACCESSORY),TYPE K:REFER ILLUST.

main42611-YY770×4i201805

15X4.5J, #,TIRE & DISC WHEEL-165/60R15, ALUMINUM(MACHINING,ACCESSORY),TYPE L:REFERILLUST.

main42611-YY780×4i201805-202105

15X4.5J, #,TIRE & DISC WHEEL-165/60R15, ALUMINUM(MACHINING,ACCESSORY),TYPE M:REFERILLUST.

main42611-YY790×4i201805-202005

15X4.5J, #,TIRE & DISC WHEEL-165/60R15, ALUMINUM(MACHINIHG,ACCESSORY),TYPE J:REFERILLUST.

main42611-YY791×4i202006-202105

15X4.5J, #,TIRE & DISC WHEEL-165/60R15, ALUMINUM(MACHINIHG,ACCESSORY),TYPE J:REFERILLUST.

main42611-YY800×4i201805-202006

15X4.5J, #,TIRE & DISC WHEEL-165/60R15, ALUMINUM(MACHINIHG,ACCESSORY),TYPE K:REFERILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0D231i201405-201805

15X4.00B,SPARE TIRE-WITH(TEMPORARY, T125/70D15),TYPE E:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

main90942-W2001×16i201405-201805

TYPE B:REFER ILLUST.

main90942-W2003×16i201405-201604

TIRE & DISC WHEEL-165/60R15 ALUMI, BLACK PAINTED&WHEEL CAP-WITHOUT,TYPE A:REFER ILLUST.

main90942-W2004×16i201905-202006

TIRE & DISC WHEEL-165/60R15,ALUMINUM(BLACK,ACCESSORY)&WHEEL CAP-CENTER ORNAMENT(RING COLOR = ORANGE),TYPE C:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i201805

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201805-202105

SPARE TIRE-WITH(TEMPER REINFORCEMENT, T125/70D15)

7403

6 parts on this diagram · 3 diagrams in section
