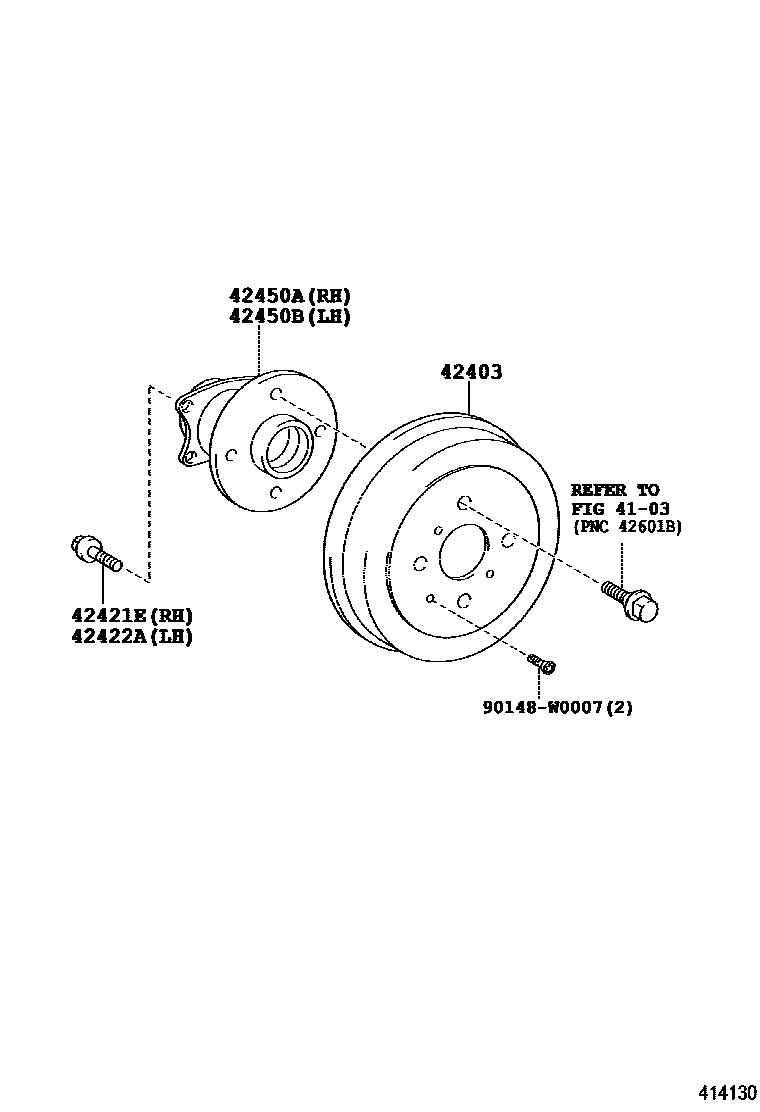

REAR AXLE SHAFT & HUB

4103

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0H010iKGB40,PAB40201405-202104

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-W0002iKGB40,PAB40201405-202105

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-W0002iKGB40,PAB40201405-202105

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0H010iKGB40,PAB40¥19,900201405-202105

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0H010iKGB40,PAB40¥19,900201405-202105

90148W0007

main90148-W0007

7 parts on this diagram · 1 diagram in section
