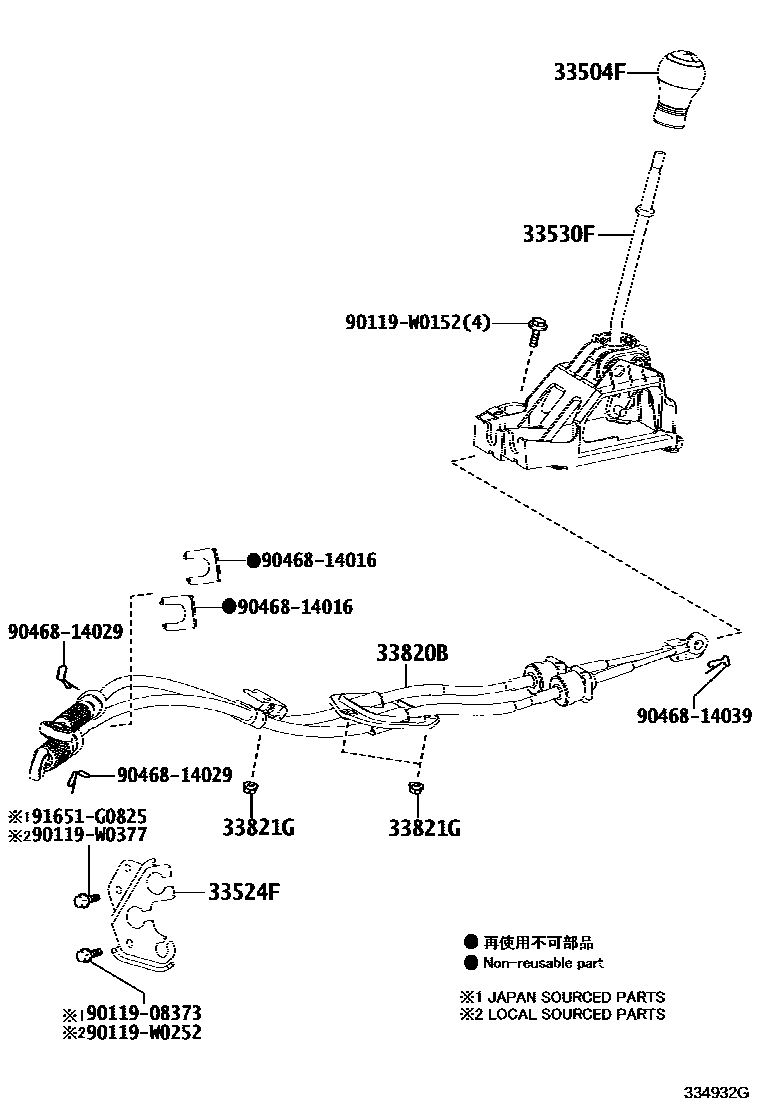

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0H020-B0i201405-201805

DARK GREY,TRIM0#,1#,2#,4#,8#

main33504-0H040-B3i201405-201605

DK.GRAY/BLACK/STE.GRAY ME,TRIM1#,2#,4#,8#

main33504-0H060-B1supersedes 33504-0H060-B1i201805-202105

DK.GRAY/BLACK/CHROME,TRIM2#

main33504-0H070-B1i201805-202105

DK.GRAY/BLACK/CHROME,TRIM2#

main33504-0H040-B7i201605-201705

COLOR SERIES/ROOF COLOR,DK.GRAY/BLACK/YELLOW,TRIM2#

main33504-0H040-B8supersedes 33504-0H060-B1i201805-202105

SHIFT LEVER & KNOB-LEATHER(PAINTED),MISTRAL/BLACK/QUARTZ GRAY,TRIM20

main33504-0H040-B9i201805-202006

SHIFT LEVER & KNOB-LEATHER(PAINTED),MISTRAL/BLACK/RED PURPLE,TRIM20

main33504-0H040-P0i202006-202105

SHIFT LEVER & KNOB-LEATHER(PAINTED),MISTRAL/BLACK/MANDARINA,TRIM20,21

main33504-0H050-B3i201601-201605

SHIFT LEVER & KNOB-LEATHER,DK.GRAY/BLACK/STE.GRAY ME,TRIM1#,2#,4#,8#

main33504-0H050-B8i201605-201705

COLOR SERIES&STEERING WHEEL-LEATHER,DK.GRAY/BLACK/YELLOW,TRIM2#

main33504-0H050-B9supersedes 33504-0H070-B1i202105

SHIFT LEVER & KNOB-LEATHER(PAINTED),MISTRAL/BLACK/QUARTZ GRAY,TRIM2#

main33504-0H050-P0i201805-202006

SHIFT LEVER & KNOB-LEATHER(PAINTED),MISTRAL/BLACK/RED PURPLE,TRIM20

main33504-0H050-P4i202006-202105

SHIFT LEVER & KNOB-LEATHER(PAINTED),MISTRAL/BLACK/MANDARINA,TRIM20,21

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-0H010i201405-201805

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0H030i201805

main33530-YV010i201405-201805

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0H010i201405-201503

main33820-0H011i201805

main33820-YV010i201405-201805

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-W0019×2i201405-201805

9011908373

main90119-08373

90119W0152

main90119-W0152

90119W0252

main90119-W0252

90119W0377

main90119-W0377

9046814016

main90468-14016

9046814029

main90468-14029

9046814039

main90468-14039

91651G0825

main91651-G0825

13 parts on this diagram · 3 diagrams in section
