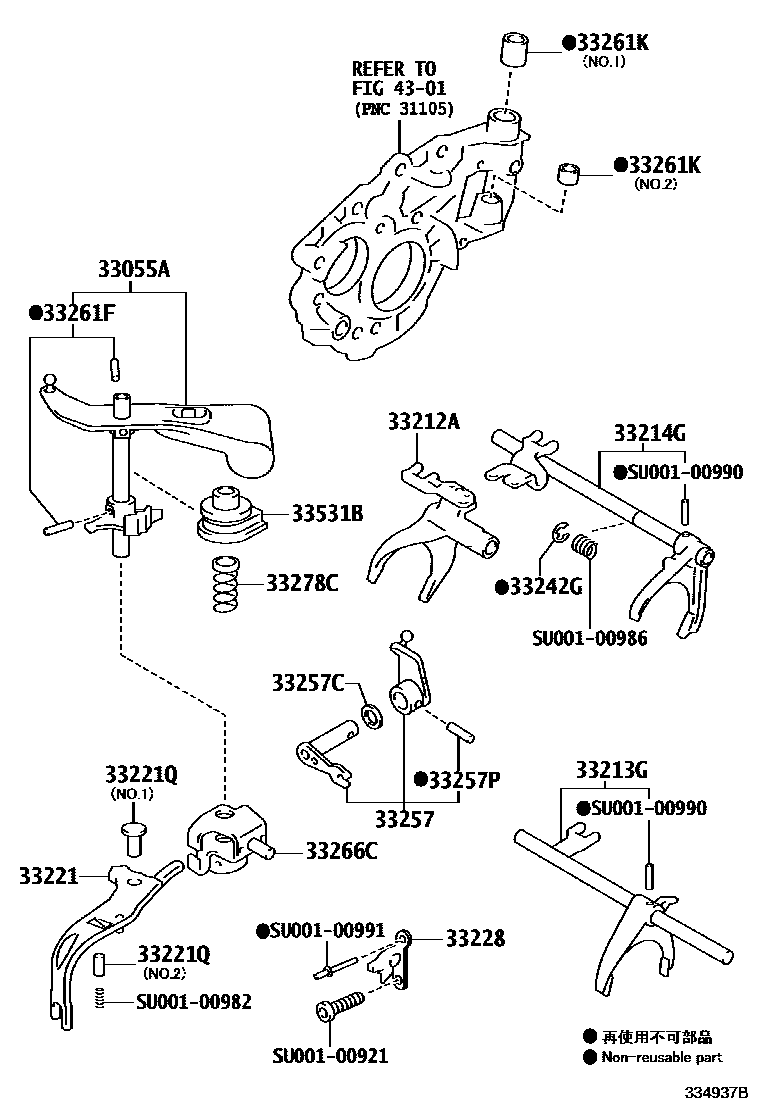

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33055ALEVER SUB-ASSY, SHIFT & SELECT
33212AFORK, GEAR SHIFT, NO.1
33221ARM, REVERSE SHIFT
33221QPIN(FOR REVERSE SHIFT ARM)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33228BRACKET, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242GRING, E (FOR SHIFT FORK SHAFT)
33257LEVER, SELECT OUTER
33257CSEAL, OIL(FOR OUTER SELECT LEVER)
33257PPIN, SELECT OUTER LEVER LOCK
33261FPIN, STRAIGHT (FOR SHIFT & SELECT LEVER SHAFT)
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
33266CPLATE, SHIFT INTERLOCK
33278CSPRING, SHIFT & SELECT LEVER SHAFT
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
4301
SU00100921
mainSU001-00921
SU00100982
mainSU001-00982
SU00100986
mainSU001-00986
SU00100990
mainSU001-00990
SU00100991
mainSU001-00991
23 parts on this diagram · 3 diagrams in section
