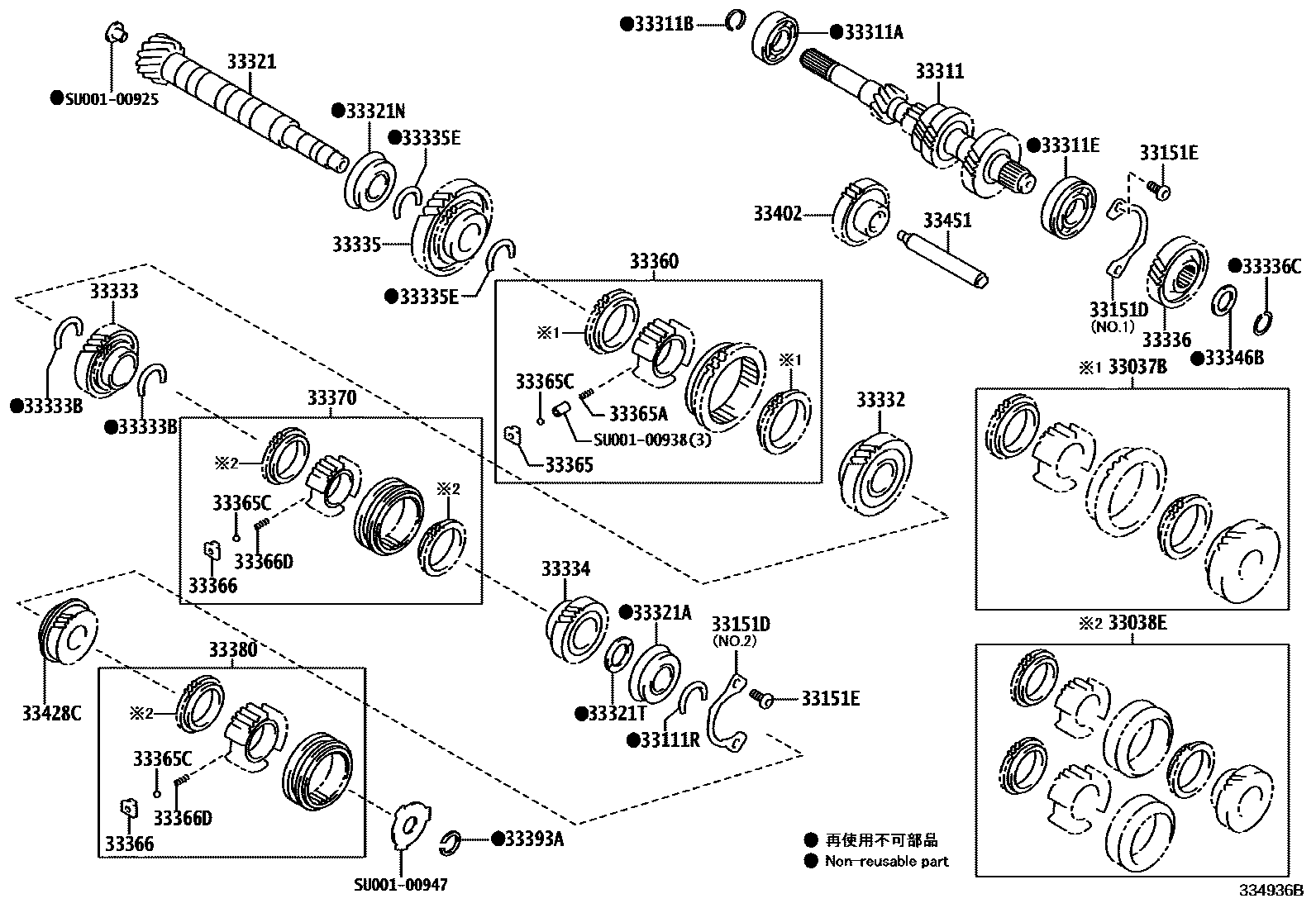

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33151DRETAINER, BEARING, REAR(MTM)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
33151EBOLT(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33321SHAFT, OUTPUT
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321TSPACER (FOR OUTPUT SHAFT)
33333GEAR, 3RD
33333BRING, SHAFT SNAP (FOR 3RD REAR)
33334GEAR, 4TH
LOW FUEL CONSUMPTION PKG.-WITH(STOP & START SYSTEM)
WITH(STOP & START SYSTEM)
LOW FUEL CONSUMPTION PKG.-WITH(STOP & START SYSTEM)&ENGINE-1KR, WITH(STOP & STARTSYSTEM)
33335ERING, SHAFT SNAP(FOR 1ST GEAR)
33336GEAR, 5TH
LOW FUEL CONSUMPTION PKG.-WITH(STOP & START SYSTEM)
WITH(STOP & START SYSTEM)
LOW FUEL CONSUMPTION PKG.-WITH(STOP & START SYSTEM)&ENGINE-1KR, WITH(STOP & STARTSYSTEM)
33336CRING, SHAFT SNAP (FOR 5TH GEAR)
T=2.28,MARK 1
T=2.34,MARK 2
T=2.40,MARK 3
T=2.46,MARK 4
T=2.52,MARK 5
T=2.58,MARK 6
33346BWASHER, 5TH GEAR THRUST
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365ASPRING, COMPRESSION
33365CBALL(FOR SYNCHROMESH SHIFTING KEY)
33366KEY, SYNCHROMESH SHIFTING, NO.2
33366DSPRING, COMPRESSION
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33402GEAR SUB-ASSY, REVERSE IDLER
33428CGEAR, 5TH DRIVEN
LOW FUEL CONSUMPTION PKG.-WITH(STOP & START SYSTEM)&ENGINE-1KR, WITH(STOP & STARTSYSTEM)
WITH(STOP & START SYSTEM)
LOW FUEL CONSUMPTION PKG.-WITH(STOP & START SYSTEM)
33451SHAFT, REVERSE IDLER GEAR
SU00100925
mainSU001-00925
SU00100938
mainSU001-00938
SU00100947
mainSU001-00947
38 parts on this diagram · 2 diagrams in section
