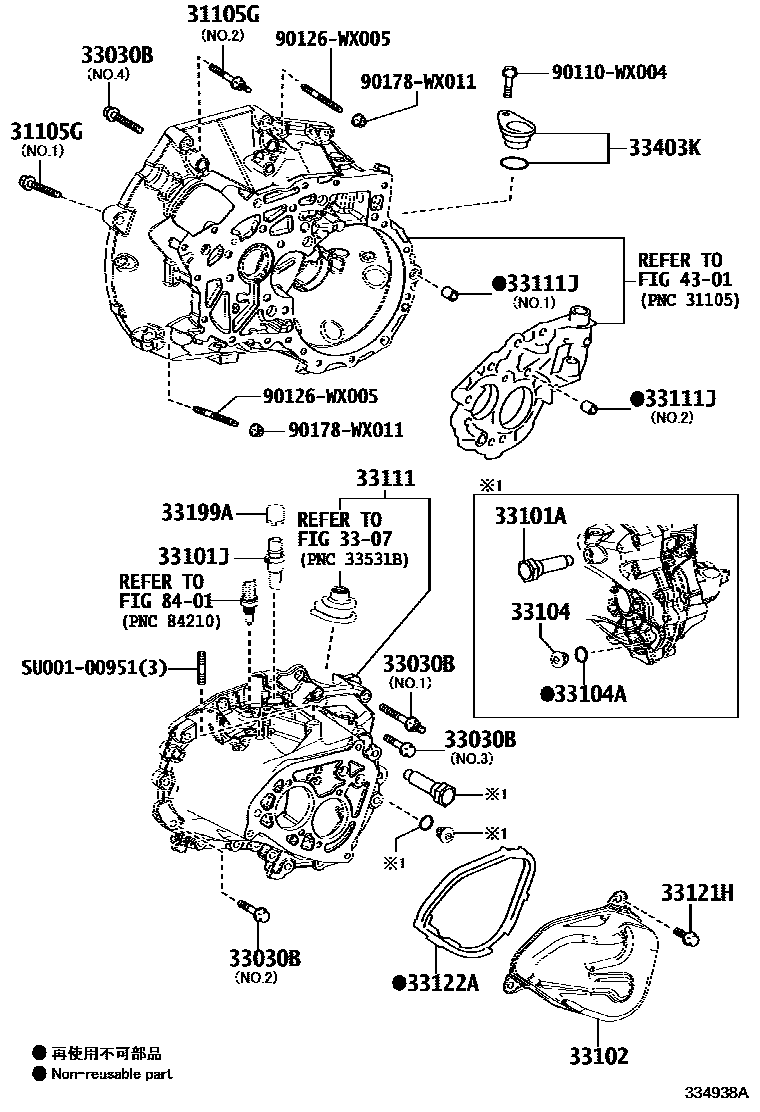

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
*12-1.25PX45-30
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX60-30,(J)
*8-1.25PX60-30
*8-1.25PX35-30
*8-1.25PX35-30,(L)
*8-1.25PX60-30,(L)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.4:REFER ILLUST.
NO.3:REFER ILLUST.
3307
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33104AGASKET, DRAIN PLUG(MTM)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
33122AGASKET, MANUAL TRANSMISSION CASE COVER
33199APROTECTOR, BREATHER
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
4301
8401
90110WX004
main90110-WX004
90126WX005
main90126-WX005
90178WX011
main90178-WX011
SU00100951
mainSU001-00951
20 parts on this diagram · 3 diagrams in section
