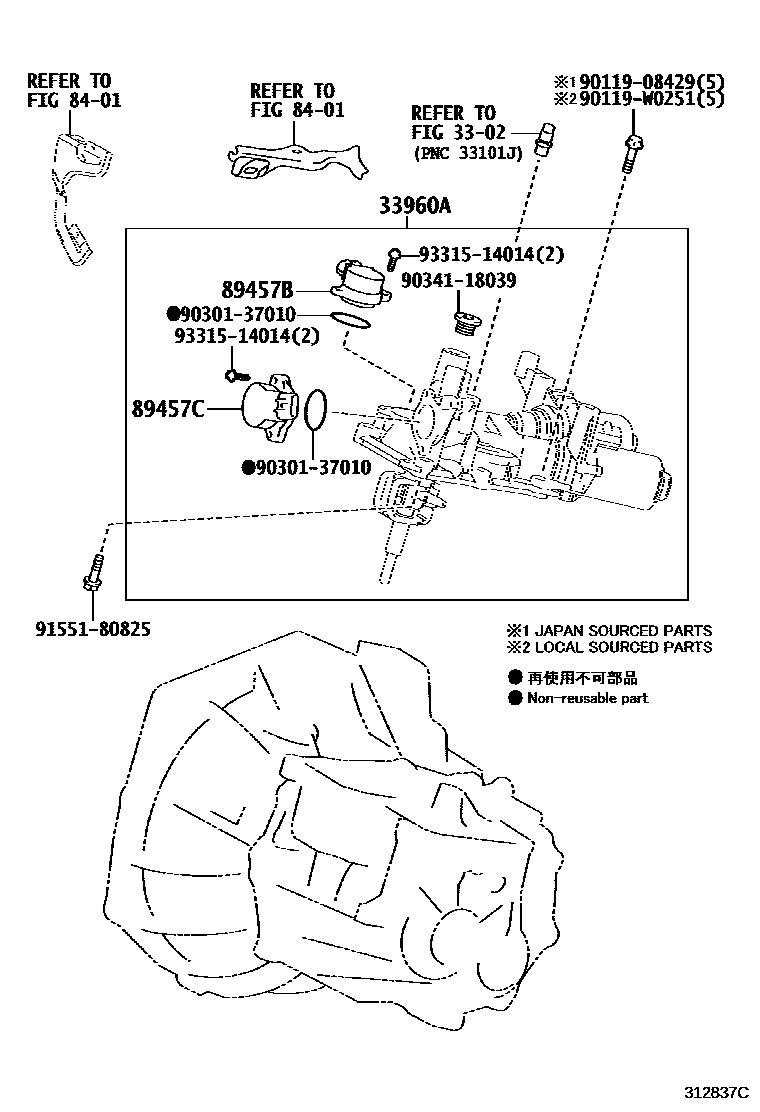

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

3302

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-70013iKGB40..5FS201405-201411

sub33960-70014

main33960-70014iKGB40..5FS201412-202104

8401

89457BSTROKE SENSOR, SHIFT

main89457-52020iKGB40..5FS201405-201805

89457CSTROKE SENSOR, SELECT

main89457-52020iKGB40..5FS201405-201805

9011908429

main90119-08429

90119W0251

main90119-W0251

9030137010

main90301-37010

9034118039

main90341-18039

9155180825

main91551-80825

9331514014

main93315-14014

11 parts on this diagram · 1 diagram in section
