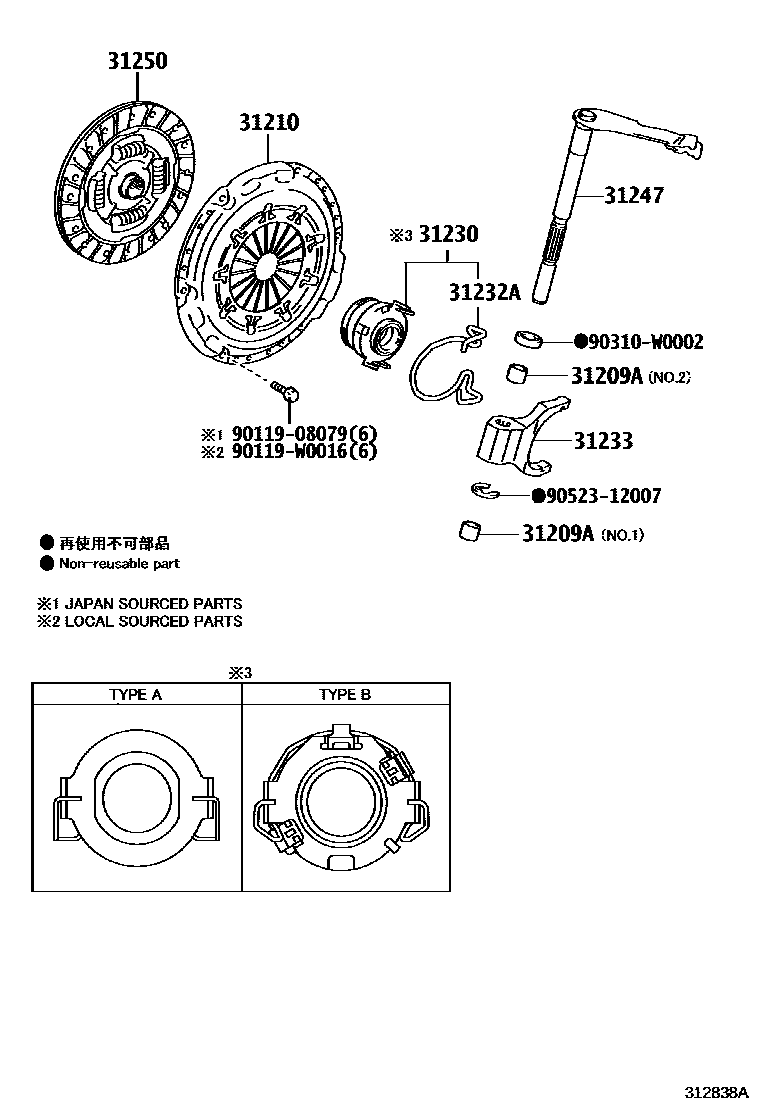

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31209ABUSH, BIMETAL FORMED(FOR CLUTCH RELEASE LEVER SUPPORT)

main90384-W0004iKGB40201405-202104

NO.1:REFER ILLUST.

main90384-W0005iKGB40201405-202104

NO.2:REFER ILLUST.

31210COVER ASSY, CLUTCH

main31210-0H050iKGB40..5F201405-201709

main31210-0H051iKGB40..3D..5F201710-202104

31230BEARING ASSY, CLUTCH RELEASE

main31230-0H010iKGB40201405-201612

TYPE A:REFER ILLUST.

sub31230-0D020

sub31230-0H020

sub31230-0H030

sub31230-0H040

main31230-0H020iKGB40..5F201612-201702

main31230-0H030iKGB40..5FS201612-201702

main31230-52040iKGB40201405-201612

TYPE B:REFER ILLUST.

sub31230-0D020

sub31230-0H020

sub31230-0H030

sub31230-0H040

main31230-52041iKGB40..3D201702-202104

mainSU00101135iPAB40201405-201410

mainSU00101162iPAB40201410-201805

31232ACLIP, RELEASE BEARING HUB

main31232-52040iKGB40201405-201612

PNC 31230=TYPE B

main31232-52041iKGB40201612-202009

sub31232-52042

main31232-52042iKGB40..5D202010-202104

31233FORK, CLUTCH RELEASE

main31233-0H011iKGB40..5FS201405-201612

sub31230-0H030

main31233-0H012iKGB40..3D..5FS201702-202104

main31233-0H030iKGB40..5F201405-201612

sub31230-0H020

main31233-0H031iKGB40..3D..5F201702-202104

31247LEVER, CLUTCH RELEASE FORK

main31247-0H020iKGB40..5F201405-202104

main31247-52010iKGB40..5FS201405-202104

31250DISC ASSY, CLUTCH

main31250-0H050iKGB40..5F201405-201709

sub31250-0H051

main31250-0H051iKGB40..5F201710-202104

9011908079

main90119-08079

90119W0016

main90119-W0016

90310W0002

main90310-W0002

9052312007

main90523-12007

11 parts on this diagram · 3 diagrams in section
