FUEL INJECTION SYSTEM

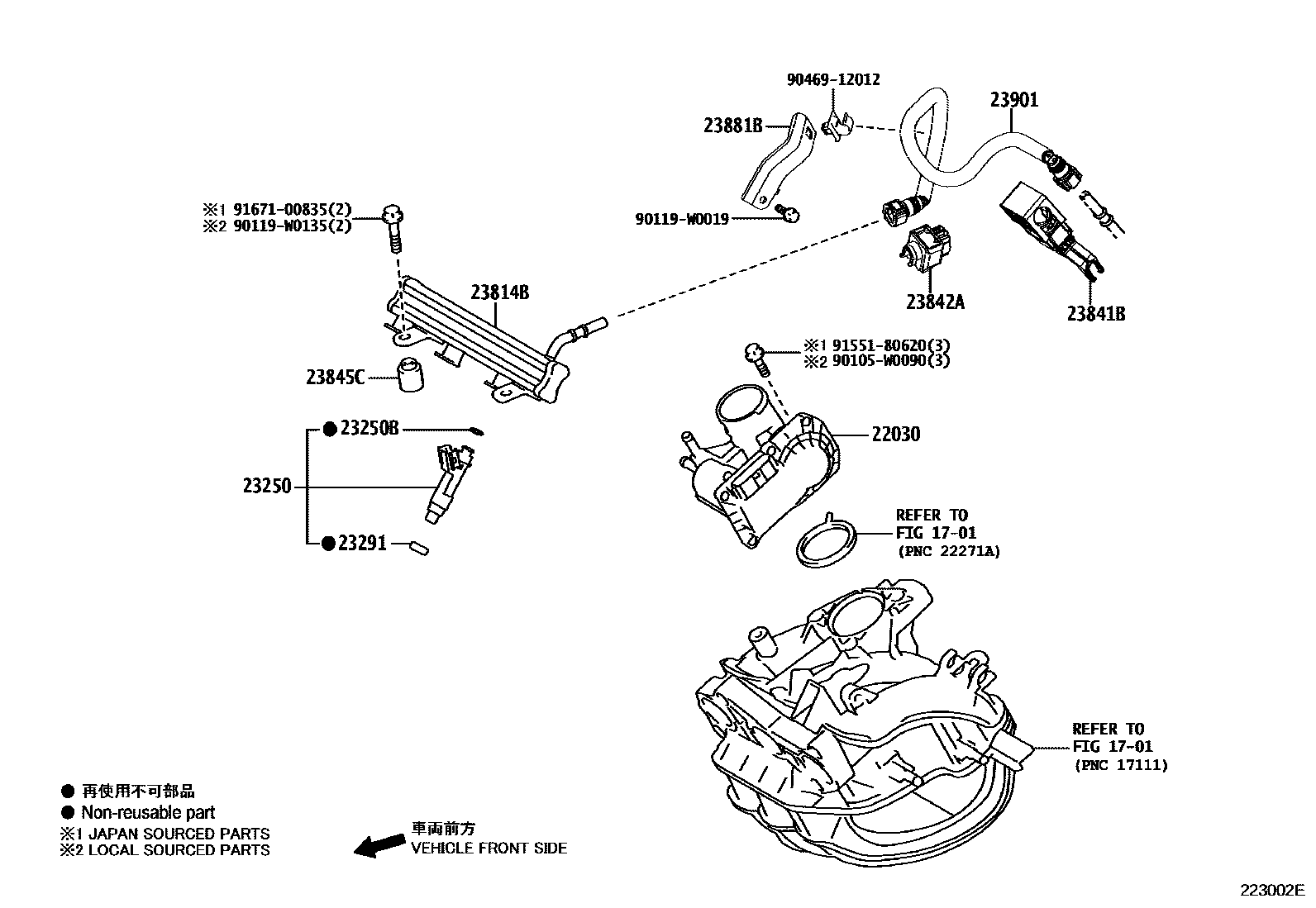

0001 1 0002 1 0003 1THROTTLE BODY 0004 1INJECTOR & FUEL TUBE

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Q030i1KRFE..KGB40201405-201805

main22030-0Q040i1KRFE..KGB40..3D201805-202104

mainSU00101101i1PP..PAB40201405

23250INJECTOR ASSY, FUEL

main23209-09270×3i1KRFE..KGB40201405-201805

main23209-09420×6i1KRFE..KGB40..3D201805-202104

mainSU00101112×3i1PP..PAB40201405

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i1KRFE..KGB40..3D201805-202104

mainSU00101113×3i1PP..PAB40201405

23291INSULATOR, INJECTOR VIBRATION

main23291-0J020×3i1KRFE..KGB40201405-201805

(L)

main23291-23010×6i1KRFE..KGB40..3D201805-202104

(J)

23814BPIPE, FUEL DELIVERY

main23814-40040i1KRFE..KGB40201405-201805

main23814-40050i1KRFE..KGB40..5D201805

mainSU00101111i1PP..PAB40201405

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0Q010i1KRFE..KGB40..5D201805

main23841-YV010i1PP..PAB40201405

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-47020i1KRFE..KGB40201405-201805

23845CINSULATOR, FUEL PIPE

main23845-40010×2i1KRFE..KGB40..3D201805-202104

23881BBRACKET, FUEL HOSE

main23881-0Q010i1KRFE..KGB40201405-201805

main23881-0Q030i1KRFE..KGB40..3D201805-202104

23901TUBE SUB-ASSY, FUEL

main23901-0Q040i1KRFE..KGB40201405-201805

main23901-0Q070i1KRFE..KGB40201805-201905

main23901-0Q100i1KRFE..KGB40..5D201905

main23901-YV020i1PP..PAB40201405

90105W0090

main90105-W0090

90119W0019

main90119-W0019

90119W0135

main90119-W0135

9046912012

main90469-12012

9155180620

main91551-80620

9167100835

main91671-00835

17 parts on this diagram · 4 diagrams in section
